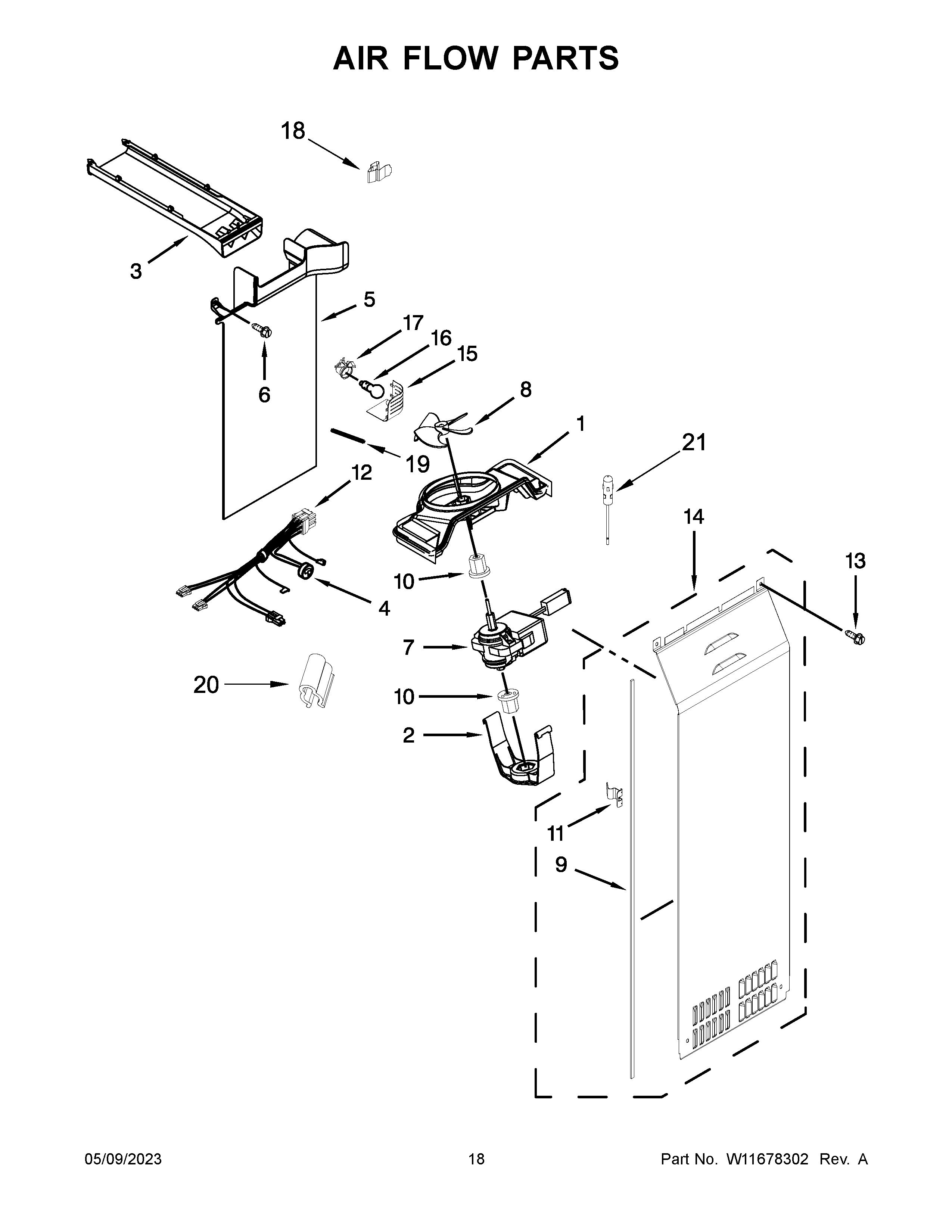

WRS588FIHZ06 10 – AIR FLOW PARTS

Products

Position	Product
1	W10251462 Whirlpool Refrigerator Scroll Fan
2	8201663 Whirlpool Refrigerator Primary Fan Blade
3	W11040868 Whirlpool Refrigerator Air Duct
4	BI-METAL DEFROST (NOT SERVICED)
5	DUCT-AIR
6	WP489478 Whirlpool Refrigerator Screw
7	W11396715 Whirlpool Refrigerator Evaporator Motor
8	WP2169142 Whirlpool Fan Blade
9	W10240370 Whirlpool Refrigerator Gasket
10	W11669856 Whirlpool Grommet
11	W11232019 Whirlpool Refrigerator Clip
12	W11566892 Whirlpool Refrigerator Wire Harness
13	WP693995 Whirlpool Screw
14	WPW10388269 Whirlpool Refrigerator Evaporator Cover
15	W10260382 Whirlpool Refrigerator Cover
16	W11216993 Whirlpool Refrigerator Light Bulb
17	4387478 Whirlpool Refrigerator Light Socket
18	W10331728 Whirlpool Refrigerator Clip
19	W11205489 Whirlpool Foam Insert
20	W11546684 Whirlpool Refrigerator Clip
21	WPW10384183 Whirlpool Thermistor
