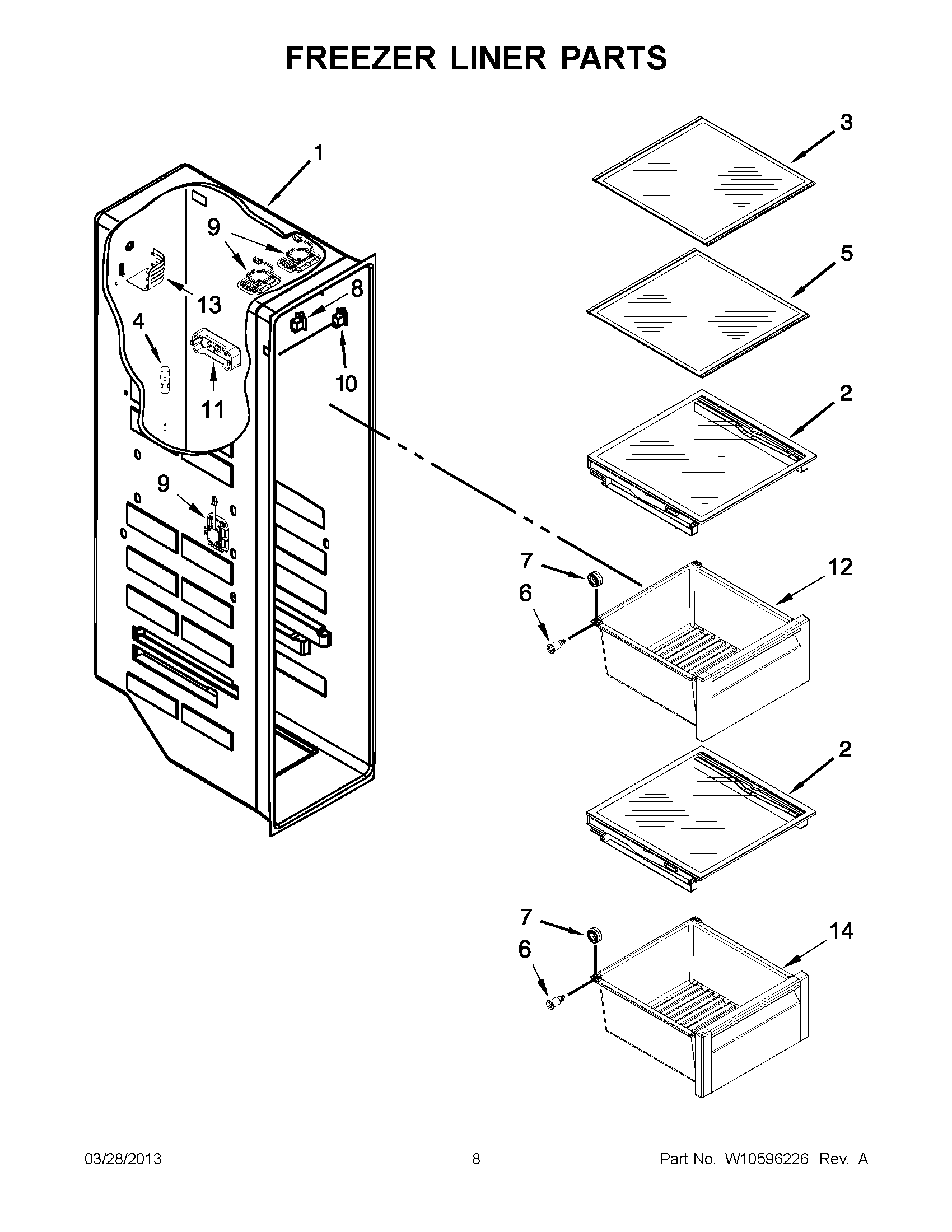

WRS950SIAB00 04 – FREEZER LINER PARTS

WRS950SIAB00 04 – FREEZER LINER PARTS

Written by

in

WRS950SIAB00 04 – FREEZER LINER PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2COVER ASSEMBLY
3SHELF, GLASS (UPPER)
4THERMISTOR
5SHELF, GLASS (LOWER)
6WPW10257246 Whirlpool Refrigerator Axle
7W11164152 Whirlpool Drawer Roller
8W11123943 Whirlpool Refrigerator Switch
9MODULE
10W11396033 Whirlpool Refrigerator Rocker Switch
11WPW10425252 Whirlpool Refrigerator Cover
12WPW10322653 Whirlpool Refrigerator Freezer Bin
13W10260382 Whirlpool Refrigerator Cover
14PAN, BOTTOM
