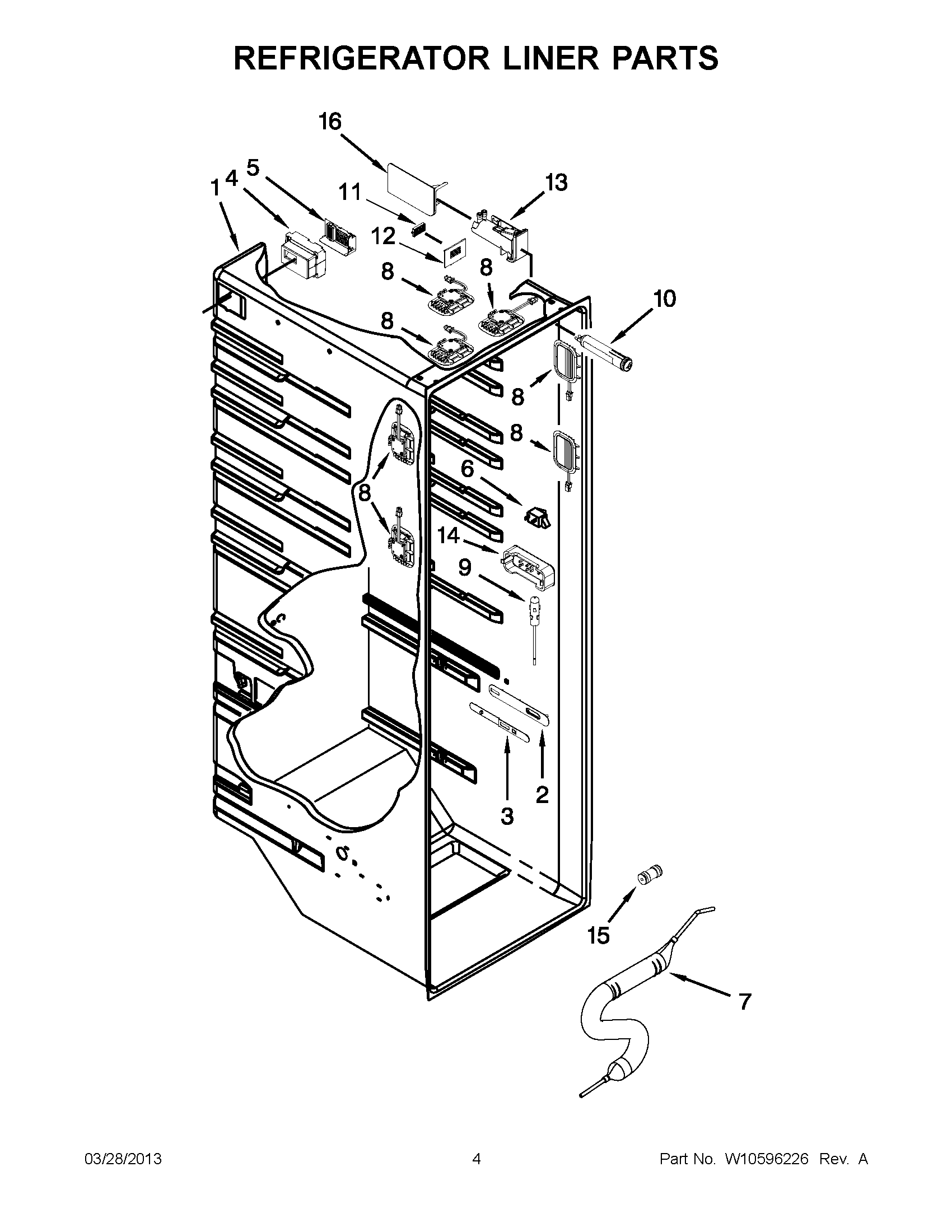

WRS950SIAH00 02 – REFRIGERATOR LINER PARTS

WRS950SIAH00 02 – REFRIGERATOR LINER PARTS

Written by

in

WRS950SIAH00 02 – REFRIGERATOR LINER PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2W10260988 Whirlpool Refrigerator Escutcheon
3SLIDE, MEAT PAN CONTROL
4W11164593 Whirlpool Damper Control Assembly
5WPW10457601 Whirlpool Refrigerator Support
6W11384469 Whirlpool Door Switch
7W11613294 Whirlpool Refrigerator Reservoir
8MODULE
9THERMISTOR
10EDR1RXD1 Whirlpool EveryDrop® Filter 1 Refrigerator Water
11W10311524 Whirlpool FreshFlow Refrigerator Air Filter
12WPW10457603 Whirlpool Refrigerator Cover
13WPW10394053 Whirlpool Refrigerator Housing
14WPW10425252 Whirlpool Refrigerator Cover
15WPW10271543 Whirlpool Refrigerator Connector
16W11501035 Whirlpool Refrigerator Filter Cover
