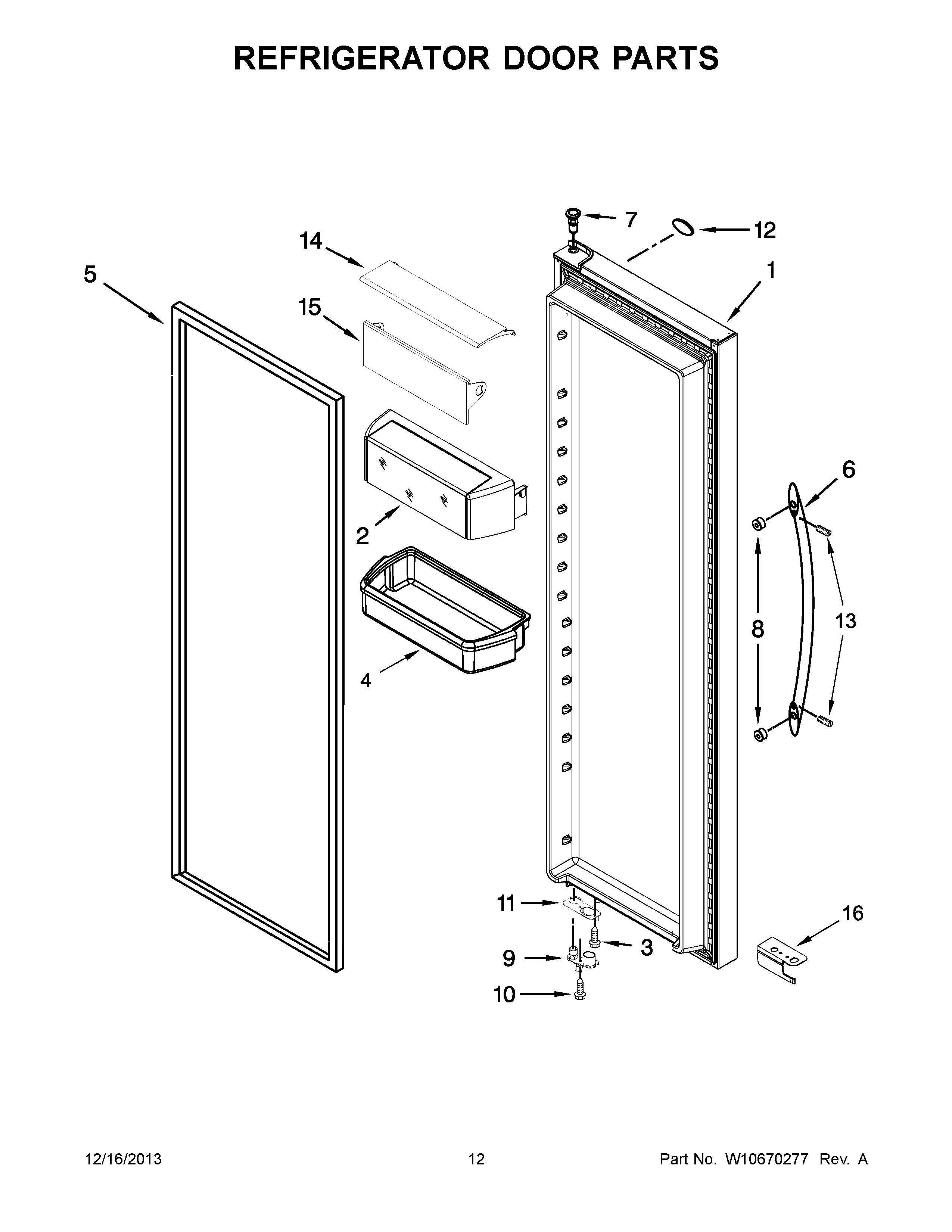

WRS950SIAM01 07 – REFRIGERATOR DOOR PARTS

WRS950SIAM01 07 – REFRIGERATOR DOOR PARTS

Written by

in

WRS950SIAM01 07 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1LW10636436 Whirlpool Refrigerator DOR-FIP
2ASSEMBLY, DOOR COMPARTMENT
3SCREW
4WPW10335220 Whirlpool Refrigerator Cantilever Bin
5W10355582 Whirlpool Refrigerator Door Gasket
6W10899551 Whirlpool Door Handle
7WP2182181 Whirlpool Refrigerator Thimble
8WPW10661886 Whirlpool Refrigerator Door Handle Screw
9WPW10257203 Whirlpool Refrigerator Lower Door Closing Cam
10WPW10296804 Whirlpool Refrigerator Screw
11W11037957 Whirlpool Refrigerator Bracket
12WPW10511972 Whirlpool Refrigerator Nameplate
13SCREW
14WPW10316883 Whirlpool Refrigerator Door Compressor
15WINDOW, DOOR COMPARTMENT
16W11661847 Whirlpool Wire Cover
