WRS950SIAW00 08 – DISPENSER PARTS

WRS950SIAW00 08 – DISPENSER PARTS

Written by

in

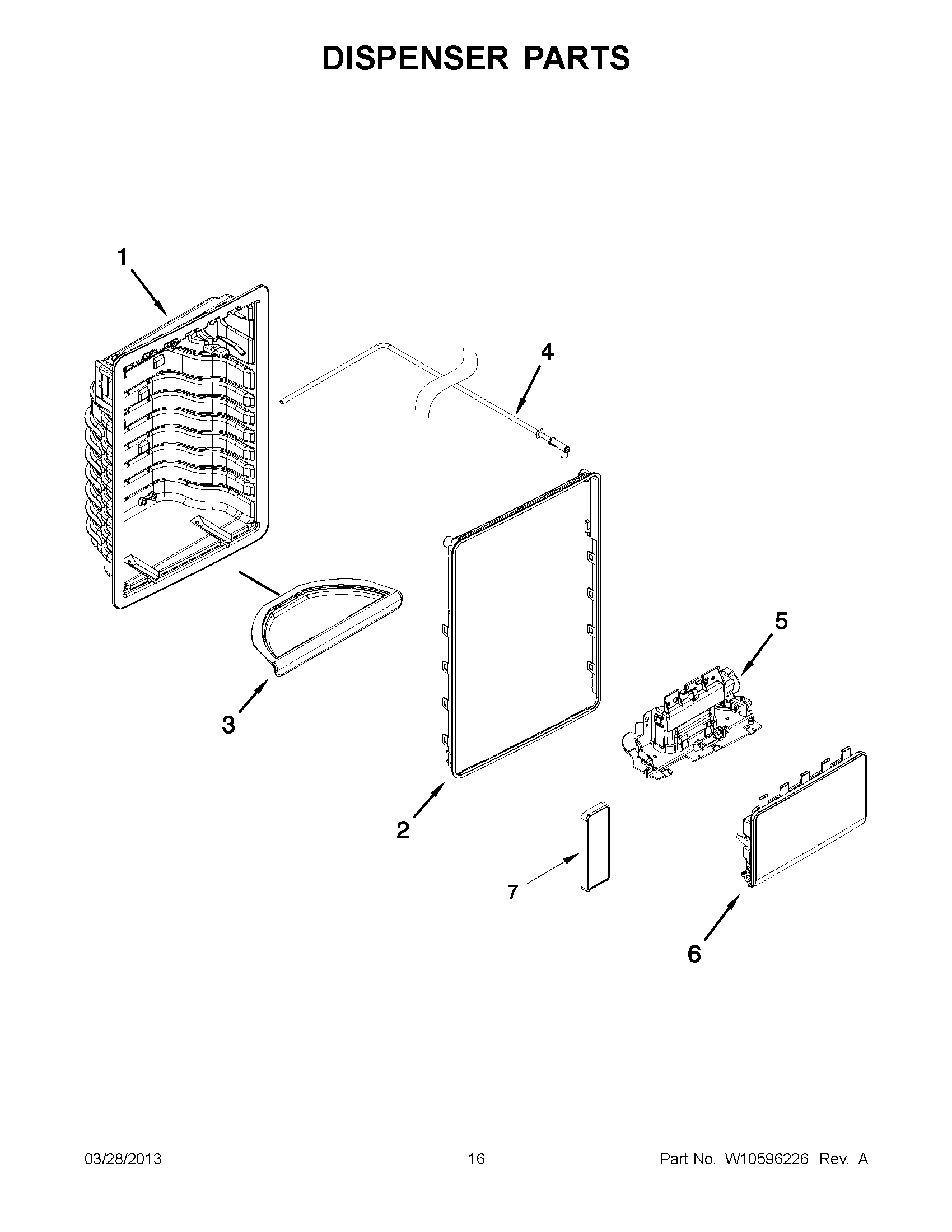

WRS950SIAW00 08 – DISPENSER PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2W10462438 Whirlpool Refrigerator Ring Connector
2WPW10402180 Whirlpool Refrigerator Trim
2W10462439 Whirlpool Refrigerator Trim
3WPW10606639 Whirlpool Refrigerator Drip Tray
3W10606644 Whirlpool Refrigerator Drip Tray
3DRIP TRAY (BLACK)
4W11566468 Whirlpool Spigot
5WPW10291704 Whirlpool Refrigerator Ice Door
6WPW10594950-includeCORE Whirlpool WPW10594950 Refrigerator Electronic Control Board + Core
6WPW10594951-includeCORE Whirlpool WPW10594951 Refrigerator Electronic Control Board + Core
7WPW10370592 Whirlpool Refrigerator Pad
7W10853387 Whirlpool Refrigerator Pad
7W11028219 Whirlpool Refrigerator Pad
