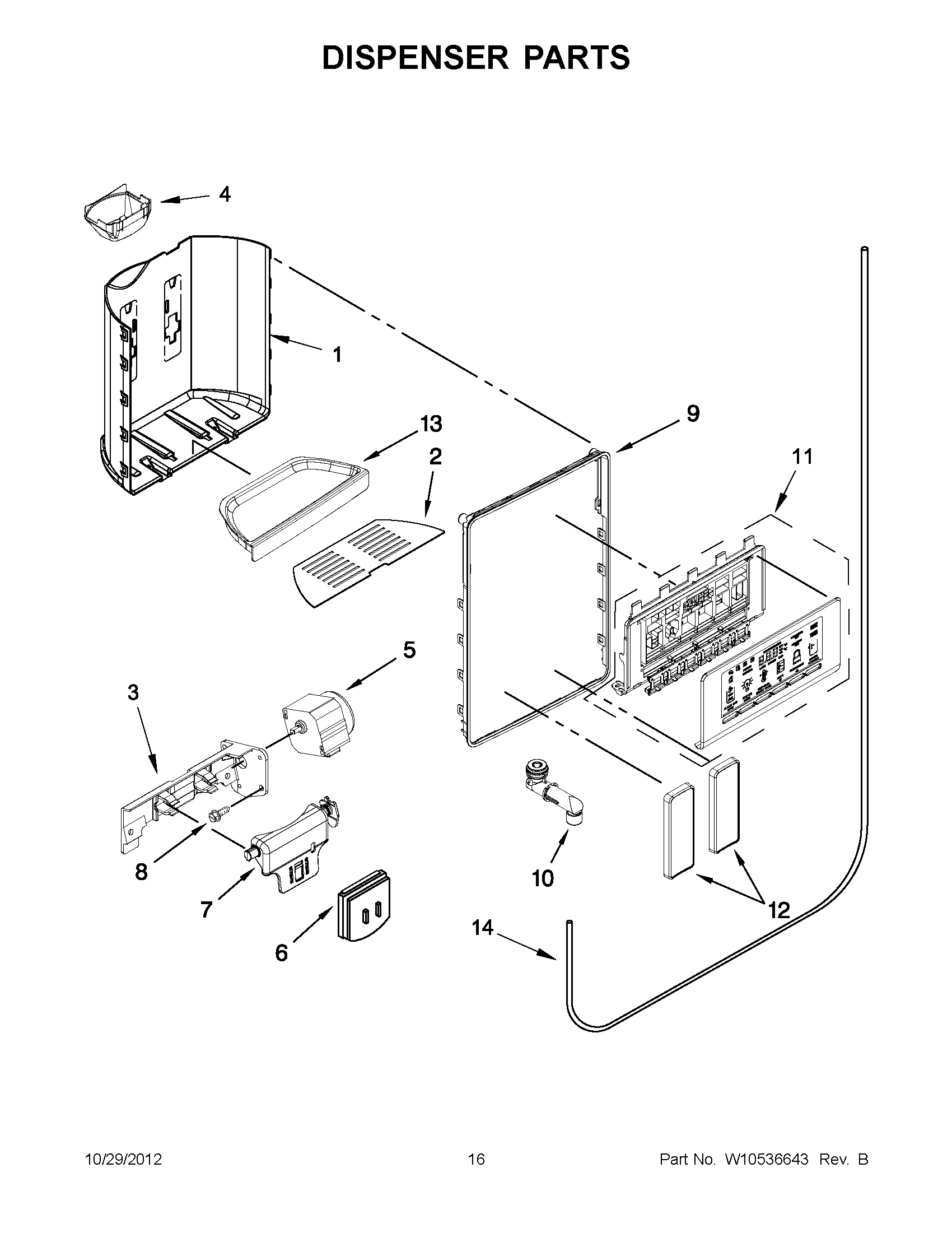

WRS965CIAE00 08 – DISPENSER PARTS

WRS965CIAE00 08 – DISPENSER PARTS

Written by

in

WRS965CIAE00 08 – DISPENSER PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2WPW10276209 Whirlpool Grille
3W10174827 Whirlpool Refrigerator Bracket
4WPW10435760 Whirlpool Refrigerator Ice Guide
5WPW10205978 Whirlpool Motor
6WPW10493172 Whirlpool Refrigerator Ice Door
7WPW10346124 Whirlpool Refrigerator Support
8WP4449745 Whirlpool Screw
9W10457583 Whirlpool Refrigerator Dispenser Trim
10WP2305235 Whirlpool Refrigerator Spigot
11WPW10476314-includeCORE Whirlpool WPW10476314 Refrigerator Electronic Control Board + Core
11WPW10489887-includeCORE Whirlpool WPW10489887 Refrigerator Electronic Control Board + Core
12W10317250 Whirlpool Refrigerator Pad
12W11561037 Whirlpool Refrigerator Pad
12WPW10346924 Whirlpool Refrigerator Pad
13TRAY, HOUSING (CHROMIUM FROST)
13TRAY, HOUSING (GREY)
14WPW10386778 Whirlpool Refrigerator Water Tube
