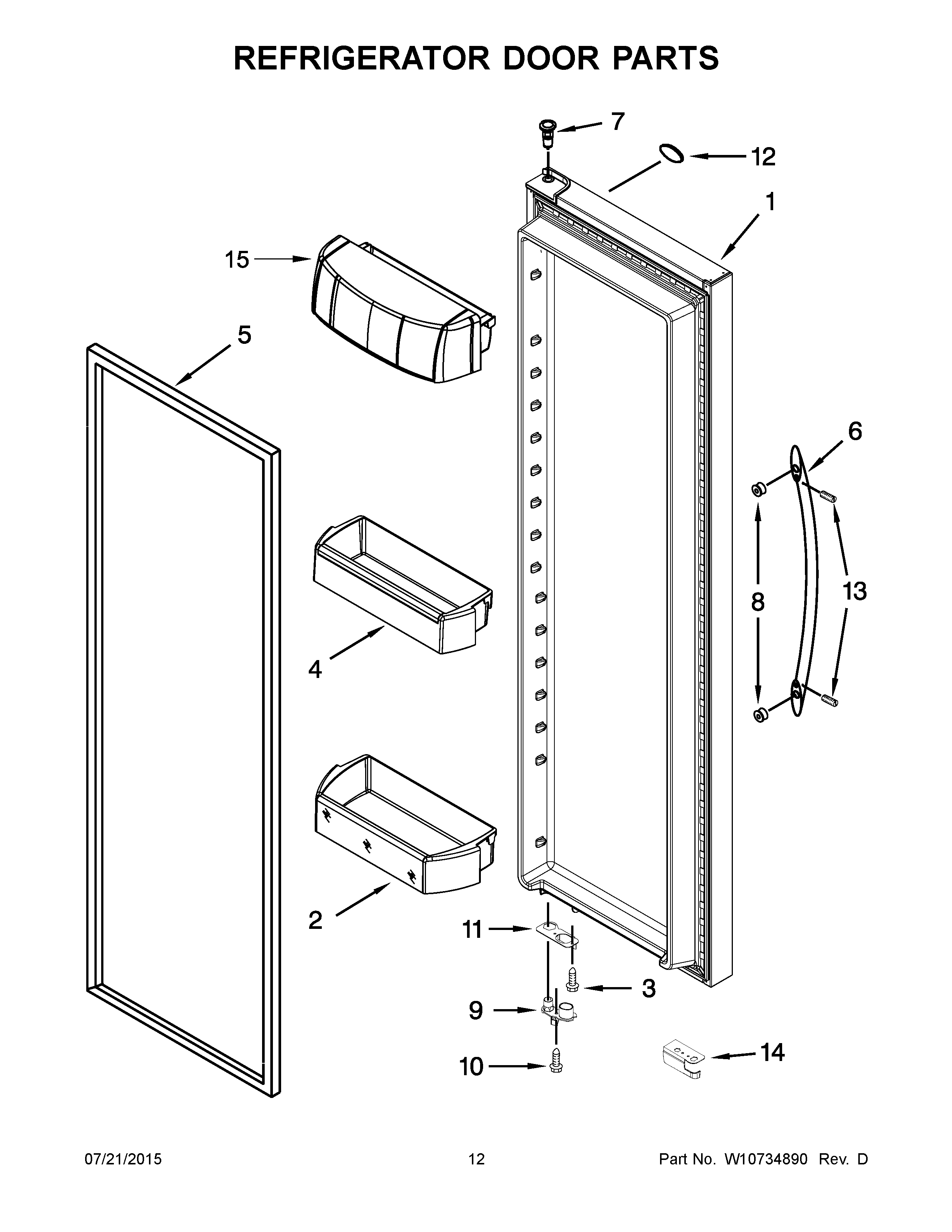

WRS970CIDE00 07 – REFRIGERATOR DOOR PARTS

WRS970CIDE00 07 – REFRIGERATOR DOOR PARTS

Written by

in

WRS970CIDE00 07 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1LW11045217 Whirlpool Refrigerator DOR-FIP
1AREFRIGERATOR DOOR (INCLUDES ITEM 5) (BLACK)
1BLW10637748 Whirlpool Refrigerator Door FIP
2WPW10527272 Whirlpool Door Shelf Bin
3SCREW
4WPW10308388 Whirlpool Refrigerator Cantilever Bin
5WPW10247884 Whirlpool Refrigerator FIP Gasket
5AWPW10249912 Whirlpool Refrigerator FIP Gasket
5BW10355582 Whirlpool Refrigerator Door Gasket
6W10899551 Whirlpool Door Handle
7WP2182181 Whirlpool Refrigerator Thimble
8WPW10661886 Whirlpool Refrigerator Door Handle Screw
9AWPW10257201 Whirlpool Door Closing Cam
9WPW10248011 Whirlpool Refrigerator Door Closing Cam White
9BWPW10257203 Whirlpool Refrigerator Lower Door Closing Cam
10WPW10296804 Whirlpool Refrigerator Screw
11W11037957 Whirlpool Refrigerator Bracket
12AWPW10511972 Whirlpool Refrigerator Nameplate
12WPW10511975 Whirlpool Refrigerator Nameplate
13SCREW
14AW10789145 Whirlpool Refrigerator Wire Cover
14BW11661847 Whirlpool Wire Cover
14W10789144 Whirlpool Refrigerator Wire Cover
15WPW10324760 Whirlpool Refrigerator Door Shelf Bin
