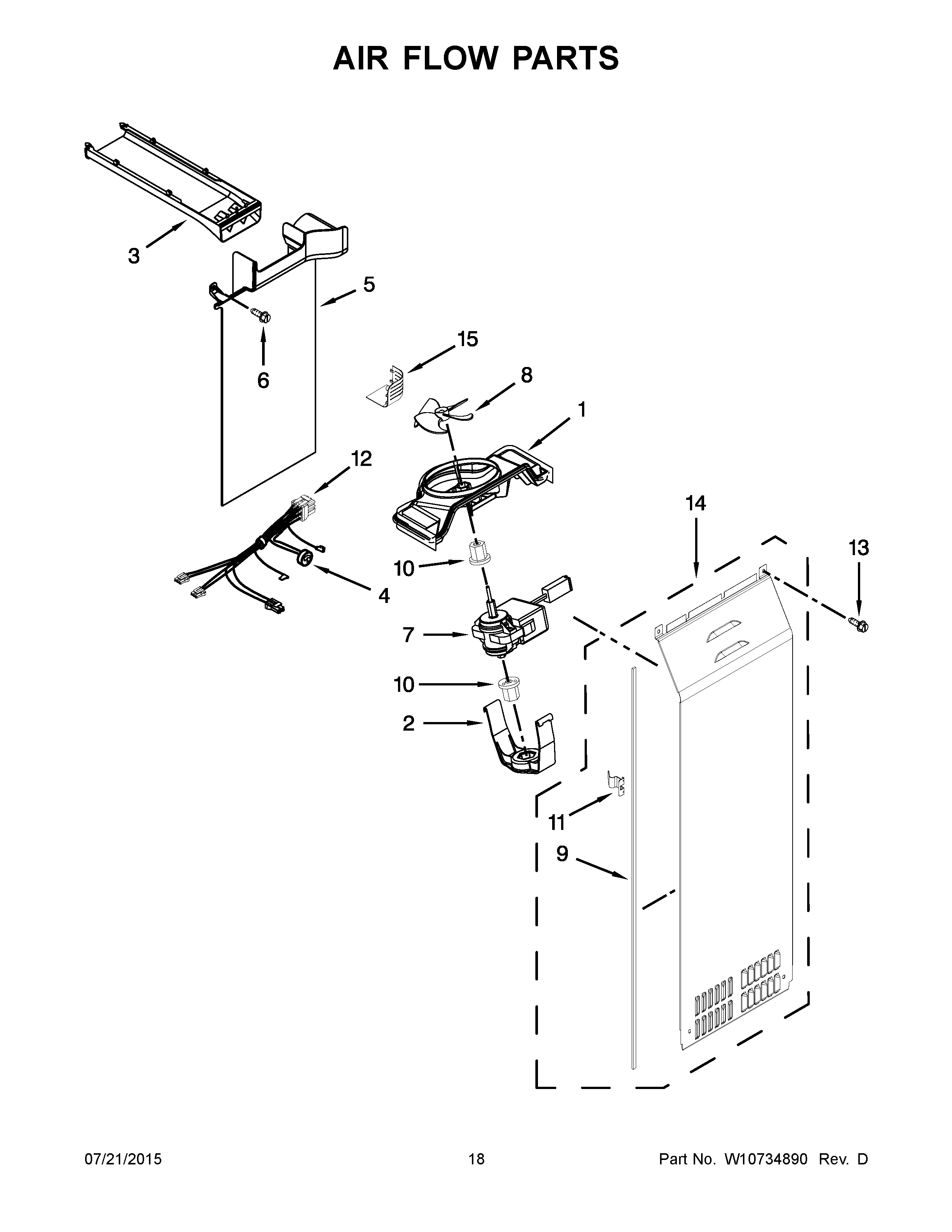

WRS970CIDE00 10 – AIR FLOW PARTS

Products

Position	Product
1	W10251462 Whirlpool Refrigerator Scroll Fan
2	8201663 Whirlpool Refrigerator Primary Fan Blade
3	AIR DUCT, UPPER
4	CABINET (NOT A SERVICEABLE PART)
5	AIR DUCT FREEZER
6	WP489478 Whirlpool Refrigerator Screw
7	W11396715 Whirlpool Refrigerator Evaporator Motor
8	WP2169142 Whirlpool Fan Blade
9	W10240370 Whirlpool Refrigerator Gasket
10	W11669856 Whirlpool Grommet
11	W11232019 Whirlpool Refrigerator Clip
12	WIRE ASSY-EVAP FAN
13	WP693995 Whirlpool Screw
14	WPW10388268 Whirlpool Refrigerator Evaporator Cover
15	W10260382 Whirlpool Refrigerator Cover
16	W10331728 Whirlpool Refrigerator Clip
