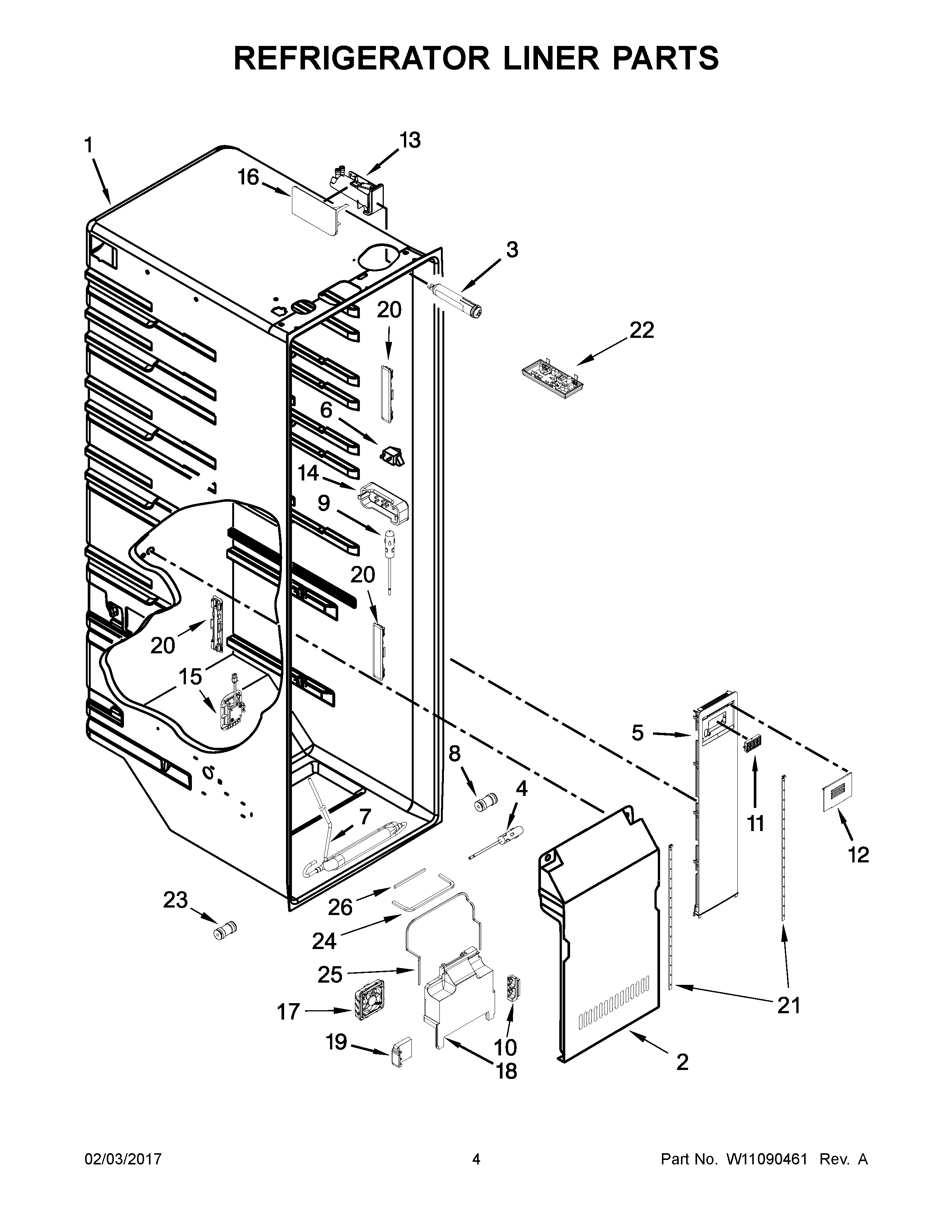

WRS970CIDE01 03 – REFRIGERATOR LINER PARTS

WRS970CIDE01 03 – REFRIGERATOR LINER PARTS

Written by

in

WRS970CIDE01 03 – REFRIGERATOR LINER PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2WPW10387382 Whirlpool Refrigerator Evaporator Cover
3EDR1RXD1 Whirlpool EveryDrop® Filter 1 Refrigerator Water
4W10316760 Whirlpool Thermistor Kit
5COVER, AIR TOWER
6W11384469 Whirlpool Door Switch
7W11204869 Whirlpool Refrigerator Reservoir
8WP2300868 Whirlpool Refrigerator Fitting
9W11338583 Whirlpool Light Bulb
10W10837626 Whirlpool Refrigerator Support
11W10311524 Whirlpool FreshFlow Refrigerator Air Filter
12W10341548 Whirlpool Refrigerator Support
13WPW10394053 Whirlpool Refrigerator Housing
14WPW10425252 Whirlpool Refrigerator Cover
15MODULE
16W11501035 Whirlpool Refrigerator Filter Cover
17W11098695 Whirlpool Refrigerator Fan Scroll
19W11028224 Whirlpool Refrigerator Support
20W10876365 Whirlpool Refrigerator Light
21W11226500 Whirlpool LED Light
22LIGHTING, LED
23WPW10271543 Whirlpool Refrigerator Connector
24W11676537 Whirlpool Gasket
25W11702233 Whirlpool Gasket
26W11676538 Whirlpool Gasket
