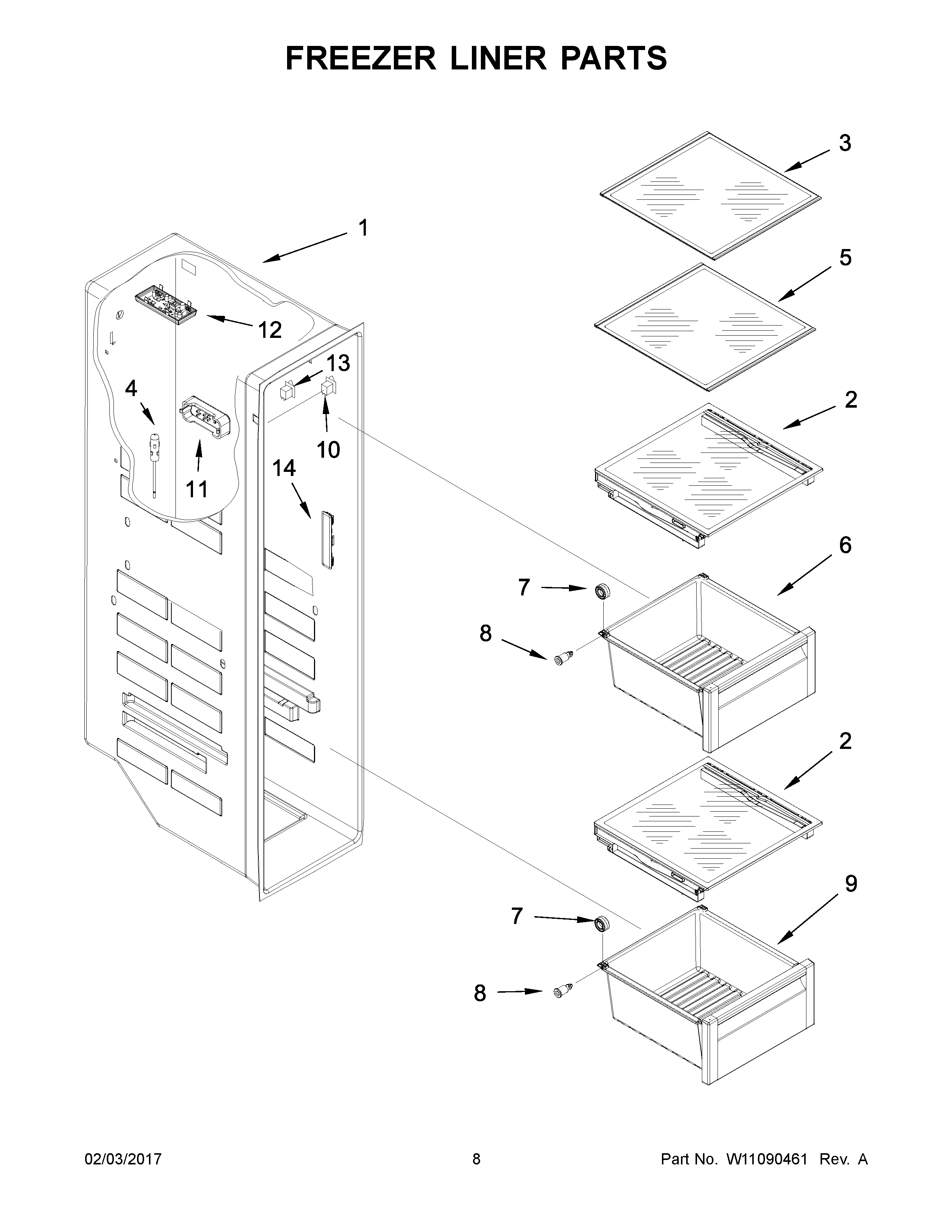

WRS970CIDE01 05 – FREEZER LINER PARTS

WRS970CIDE01 05 – FREEZER LINER PARTS

Written by

in

WRS970CIDE01 05 – FREEZER LINER PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2W10836801 Whirlpool Refrigerator Drawer Cover
3W11098698 Whirlpool Glass Shelf
4THERMISTOR
5W11098699 Whirlpool Glass Shelf
6FREEZER PAN, MIDDLE
7W11164152 Whirlpool Drawer Roller
8W11175807 Whirlpool Axle Assembly
9W10701446 Whirlpool Refrigerator Freezer Bin
10W11457217 Whirlpool Refrigerator Rocker Switch Combination
11WPW10425252 Whirlpool Refrigerator Cover
12LIGHTING, LED
13W11123943 Whirlpool Refrigerator Switch
14W10876365 Whirlpool Refrigerator Light
