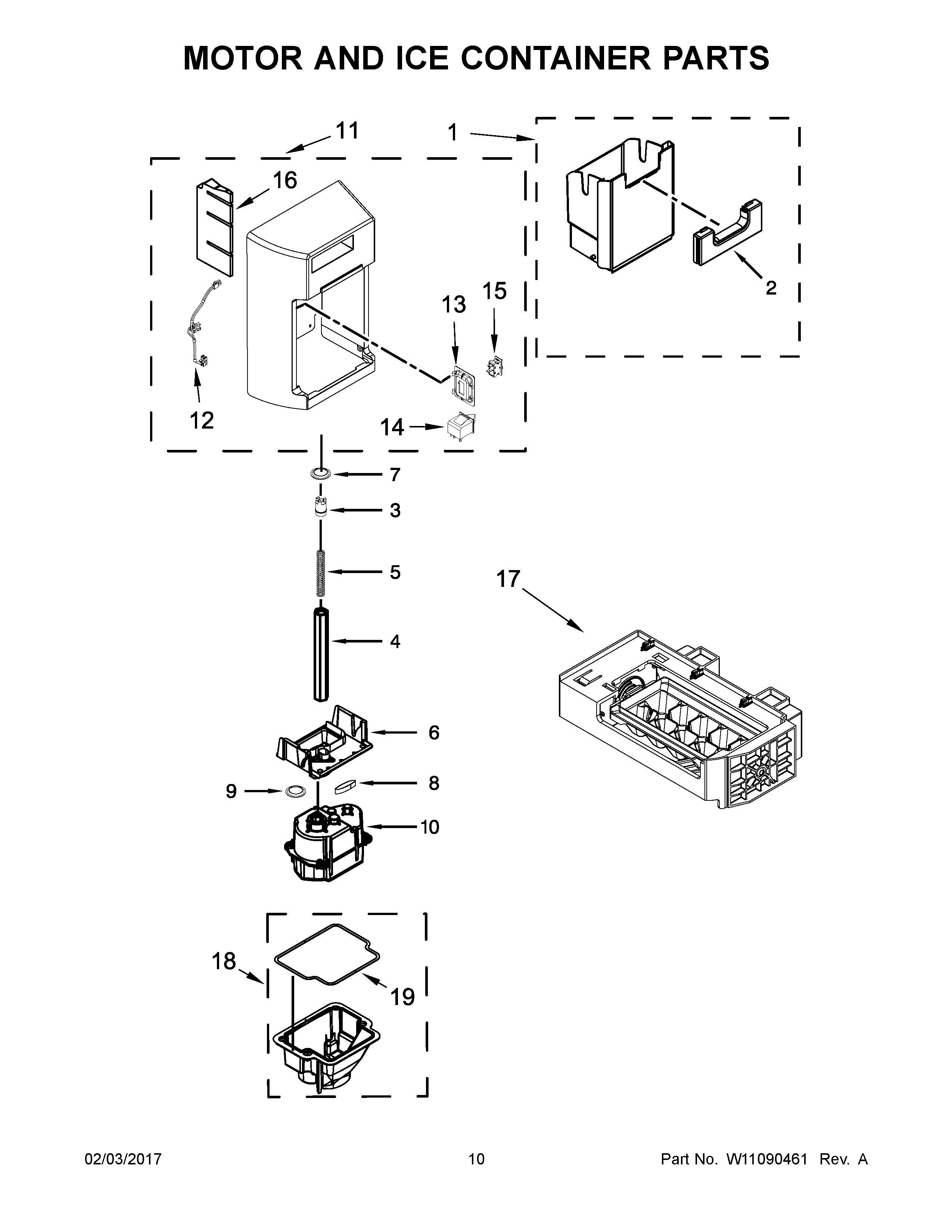

WRS970CIDE01 06 – MOTOR AND ICE CONTAINER PARTS

WRS970CIDE01 06 – MOTOR AND ICE CONTAINER PARTS

Written by

in

WRS970CIDE01 06 – MOTOR AND ICE CONTAINER PARTS

Products

PositionProduct
1W11109888 Whirlpool Refrigerator Ice Container
2W11652042 Whirlpool Bin Latch
3W10174818 Whirlpool Refrigerator Clip
4WPW10258544 Whirlpool Refrigerator Shaft
5W10852956 Whirlpool Refrigerator Spring
6CHUTE
7WP2198628 Whirlpool Door Seal
8WPW10291905 Whirlpool Seal
9WP2212370 Whirlpool Washer
10W11202789 Whirlpool Auger Motor
11W11126296 Whirlpool Refrigerator Front Cover
12W11684619 Whirlpool Refrigerator Jumper Wire
13W10691248 Whirlpool Refrigerator Plate
14W10918003 Whirlpool Refrigerator RKR Switch
15W11123943 Whirlpool Refrigerator Switch
16W10749467 Whirlpool Refrigerator Insulation
17W10873791 Whirlpool Refrigerator Ice Maker Assembly
18W11678273 Whirlpool Bracket
19W10166854 Whirlpool Refrigerator Gasket
