WRS970CIDE01 08 – FREEZER DOOR PARTS

WRS970CIDE01 08 – FREEZER DOOR PARTS

Written by

in

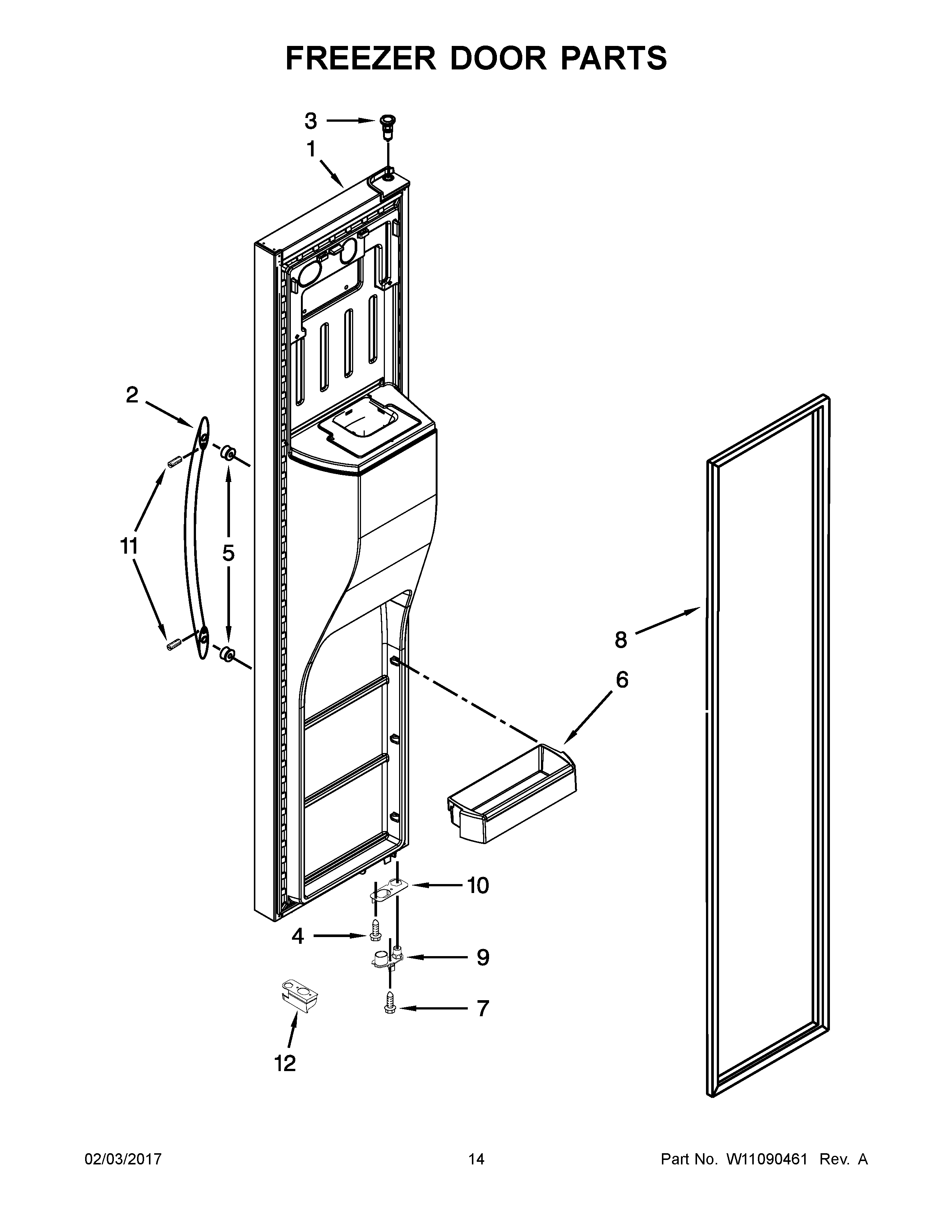

WRS970CIDE01 08 – FREEZER DOOR PARTS

Products

PositionProduct
1ALW10812471 Whirlpool Refrigerator DOR-FIP
1BLW10755706 Whirlpool Refrigerator Door Frame
1LW10755642 Whirlpool Refrigerator FIP Door
2W10899551 Whirlpool Door Handle
3WP2182181 Whirlpool Refrigerator Thimble
4WPW10296804 Whirlpool Refrigerator Screw
5WPW10661886 Whirlpool Refrigerator Door Handle Screw
6WPW10308389 Whirlpool Cantilever Bin
7SCREW
8AWPW10249913 Whirlpool Refrigerator FIP Gasket
8WPW10247885 Whirlpool Door Gasket
8BWPW10355585 Whirlpool Refrigerator Door Gasket + AH
9WPW10248015 Whirlpool Refrigerator Door Cam
9AW11607100 Whirlpool Refrigerator Thimble Cam
9BWPW10257206 Whirlpool Refrigerator Door Cam
10W11293380 Whirlpool Refrigerator Bracket
11SCREW
12BWPW10632062 Whirlpool Refrigerator Wire Cover
12W10632059 Whirlpool Refrigerator Wire Cover
12AW10632060 Whirlpool Refrigerator Wire Cover
