WRS970CIHZ00 09 – DISPENSER PARTS

WRS970CIHZ00 09 – DISPENSER PARTS

Written by

in

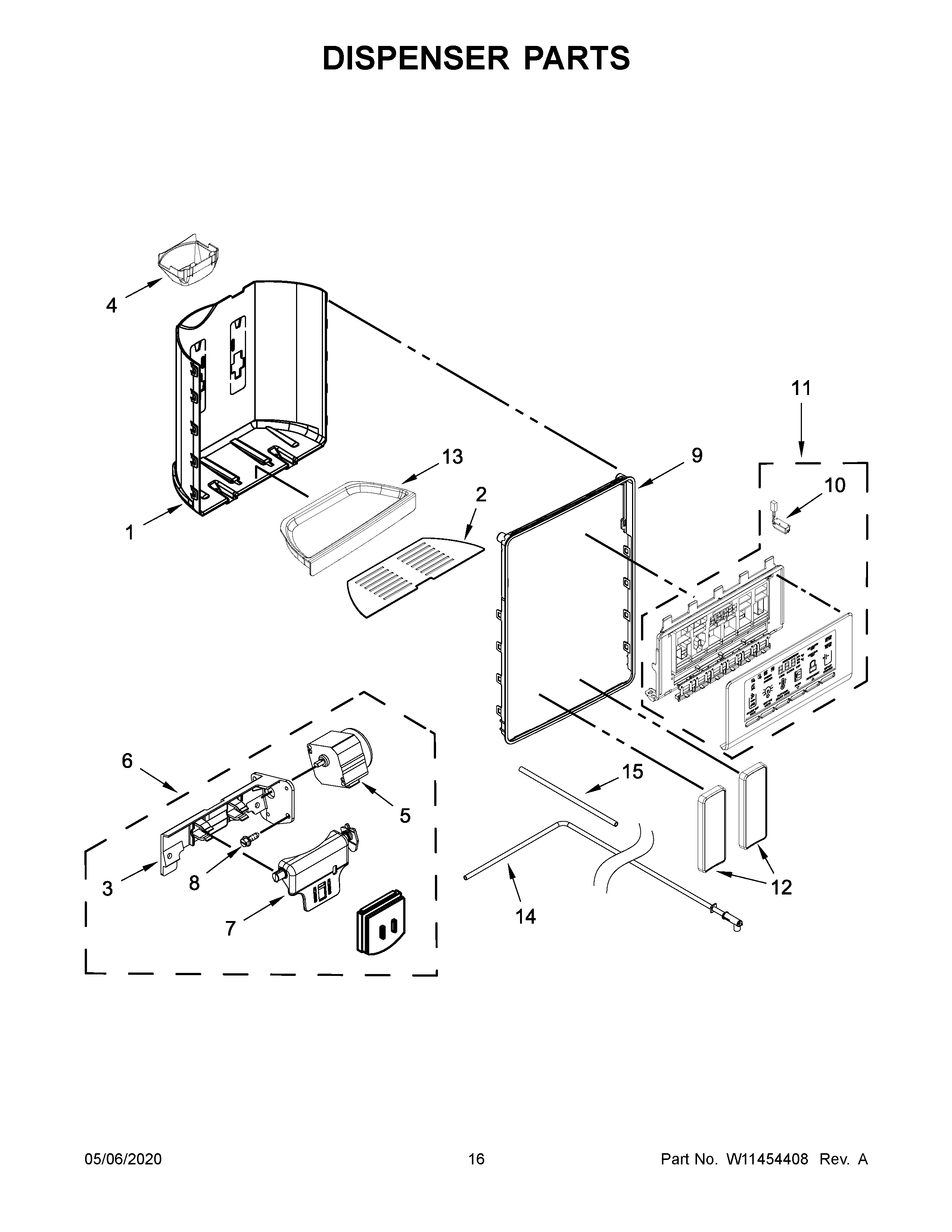

WRS970CIHZ00 09 – DISPENSER PARTS

Products

PositionProduct
1W10276226 Whirlpool Refrigerator Separator
2WPW10276209 Whirlpool Grille
3W10174827 Whirlpool Refrigerator Bracket
4WPW10435760 Whirlpool Refrigerator Ice Guide
5WPW10205978 Whirlpool Motor
6W11098702 Whirlpool Refrigerator Ice Door
7WPW10346124 Whirlpool Refrigerator Support
8WP4449745 Whirlpool Screw
9RING, TRIM (CHROMIUM FROST)
10W11290115 Whirlpool Refrigerator Light
11W11474912-includeCORE Whirlpool W11474912 Refrigerator Electronic Control Board + Core
12W11624941 Whirlpool Refrigerator Pad
13W10276225 Whirlpool Refrigerator Drip Tray
14WPW10386778 Whirlpool Refrigerator Water Tube
15W11620106 Whirlpool Water Tube
