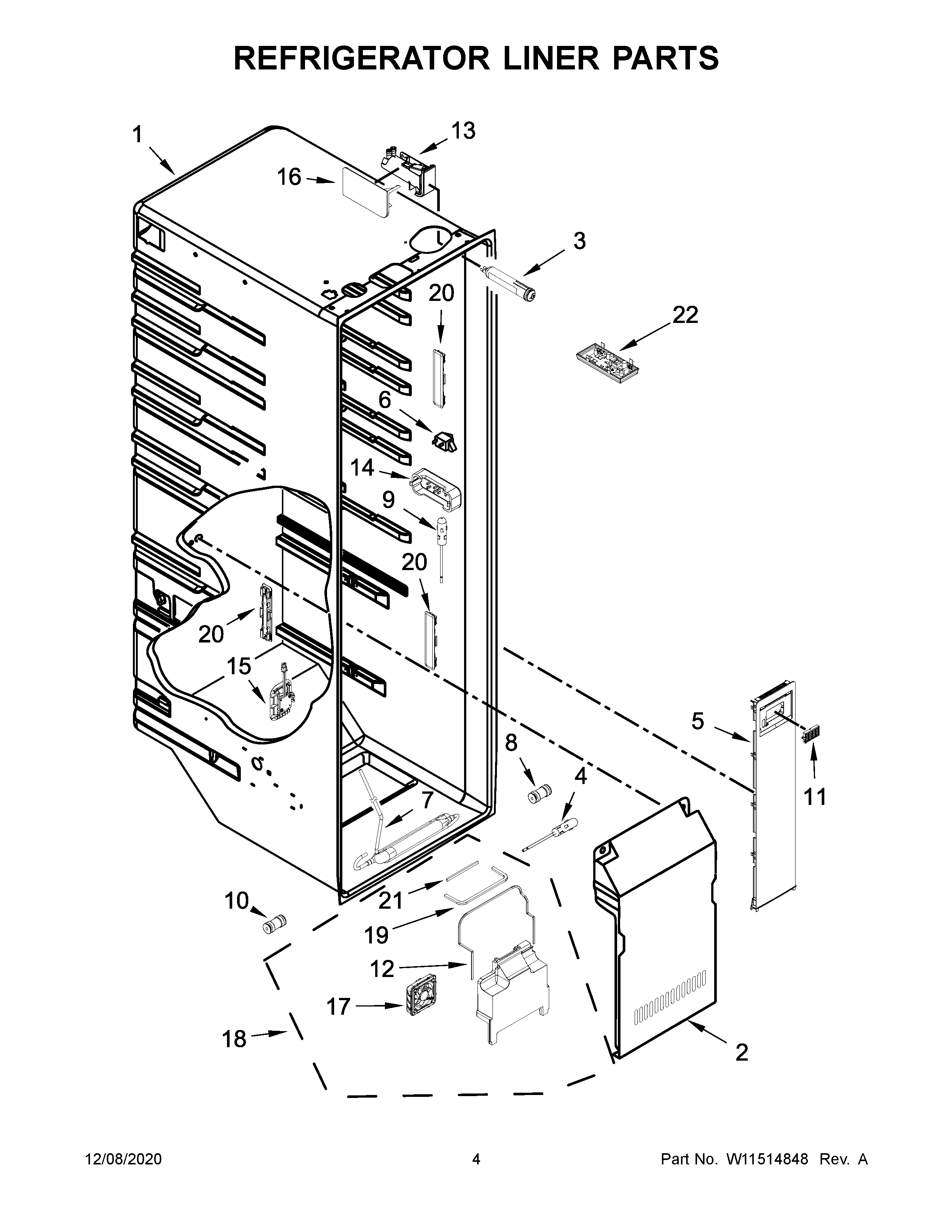

WRS970CIHZ01 03 – REFRIGERATOR LINER PARTS

WRS970CIHZ01 03 – REFRIGERATOR LINER PARTS

Written by

in

WRS970CIHZ01 03 – REFRIGERATOR LINER PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2W11504912 Whirlpool Refrigerator Evaporator Cover
3EDR1RXD1 Whirlpool EveryDrop® Filter 1 Refrigerator Water
4W10316760 Whirlpool Thermistor Kit
5W10903407 Whirlpool Refrigerator Air Tower
6W11384469 Whirlpool Door Switch
7W11204869 Whirlpool Refrigerator Reservoir
8WP2300868 Whirlpool Refrigerator Fitting
9WPW10384183 Whirlpool Thermistor
10WPW10271543 Whirlpool Refrigerator Connector
11W10311524 Whirlpool FreshFlow Refrigerator Air Filter
12W11573592 Whirlpool Refrigerator Gasket
13WPW10394053 Whirlpool Refrigerator Housing
14WPW10425252 Whirlpool Refrigerator Cover
15MODULE
16W11501035 Whirlpool Refrigerator Filter Cover
17FAN-SCROLL
18W11504913 Whirlpool Refrigerator Scroll Fan
19W11676537 Whirlpool Gasket
20W10876365 Whirlpool Refrigerator Light
21W11676538 Whirlpool Gasket
22W11226500 Whirlpool LED Light
