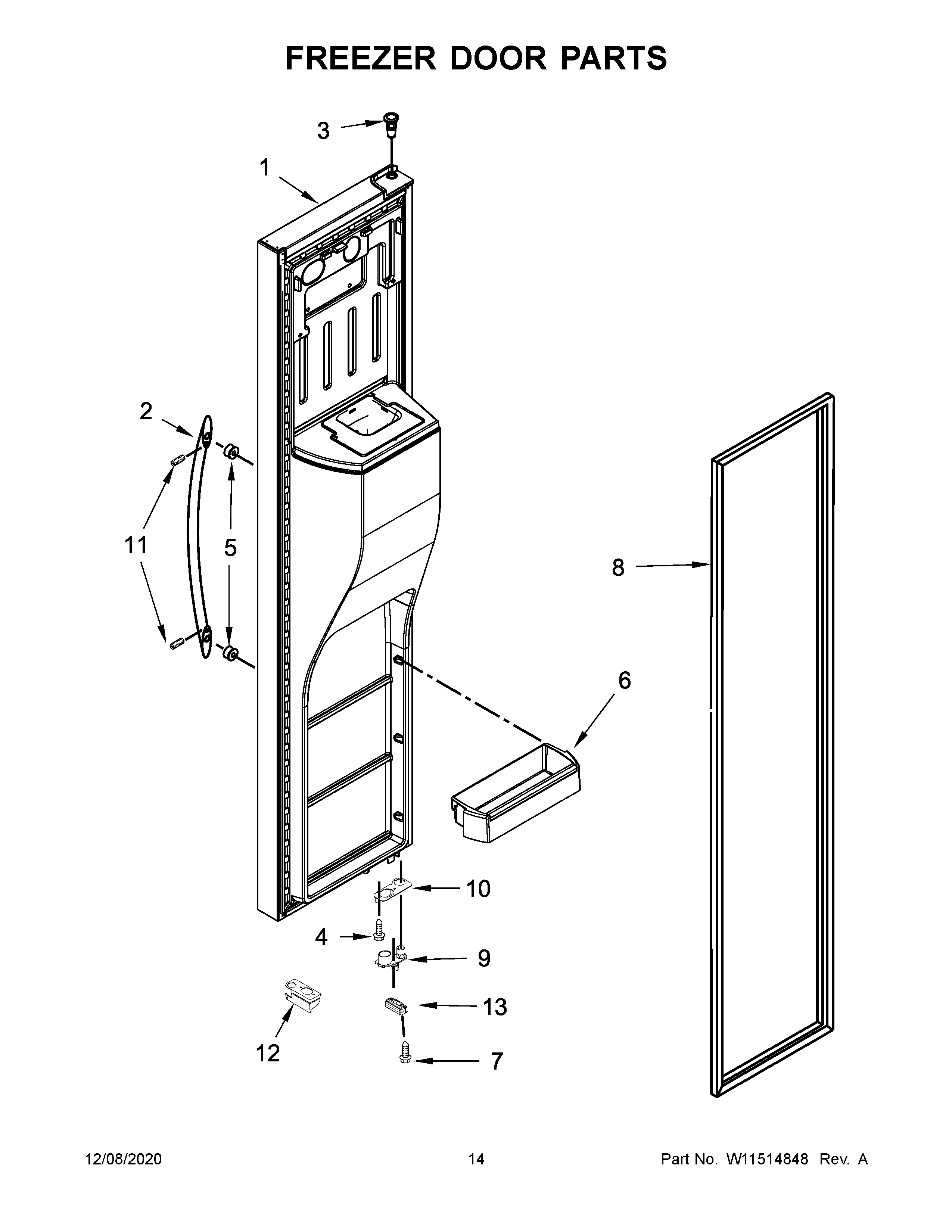

WRS970CIHZ01 08 – FREEZER DOOR PARTS

WRS970CIHZ01 08 – FREEZER DOOR PARTS

Written by

in

WRS970CIHZ01 08 – FREEZER DOOR PARTS

Products

PositionProduct
1DOOR, FREEZER (INCLUDES ITEM 8 AND DISPENSER FRONT PARTS) (STAINLESS)
2W11542651 Whirlpool Door Handle
3WP2182181 Whirlpool Refrigerator Thimble
4WPW10296804 Whirlpool Refrigerator Screw
5WPW10661886 Whirlpool Refrigerator Door Handle Screw
6WPW10308389 Whirlpool Cantilever Bin
7SCREW
8WPW10355585 Whirlpool Refrigerator Door Gasket + AH
9WPW10257206 Whirlpool Refrigerator Door Cam
10W11293380 Whirlpool Refrigerator Bracket
11SCREW
12WPW10632062 Whirlpool Refrigerator Wire Cover
13W11573367 Whirlpool Refrigerator Door Bumper
