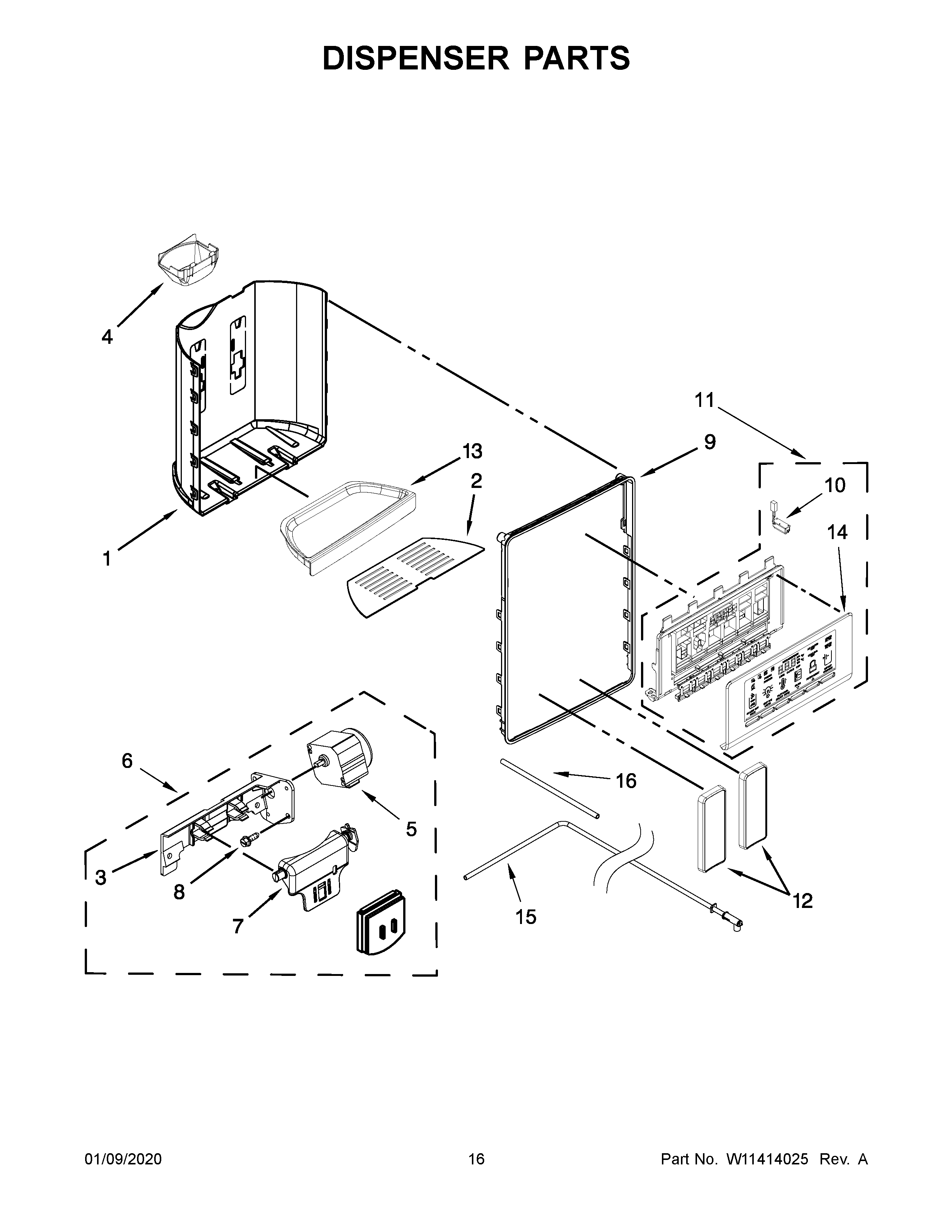

WRS973CIHV00 09 – DISPENSER PARTS

WRS973CIHV00 09 – DISPENSER PARTS

Written by

in

WRS973CIHV00 09 – DISPENSER PARTS

Products

PositionProduct
1W10254255 Whirlpool Refrigerator Separator
1AW10276226 Whirlpool Refrigerator Separator
2WPW10276209 Whirlpool Grille
3W10174827 Whirlpool Refrigerator Bracket
4WPW10435760 Whirlpool Refrigerator Ice Guide
5WPW10205978 Whirlpool Motor
6W10838126 Whirlpool Refrigerator Ice Door
7WPW10346124 Whirlpool Refrigerator Support
8WP4449745 Whirlpool Screw
9W10457583 Whirlpool Refrigerator Dispenser Trim
10W11290115 Whirlpool Refrigerator Light
11W10822639 Whirlpool Refrigerator Electronic Control Board + Core
12W10370577 Whirlpool Refrigerator Pad
12AW11624941 Whirlpool Refrigerator Pad
13AW10276225 Whirlpool Refrigerator Drip Tray
13W10254259 Whirlpool Refrigerator Drip Tray
14W10476316 Whirlpool Escutcheon
15W11669938 Whirlpool Water Tube
16WPW10238092 Whirlpool Refrigerator Water Tube
