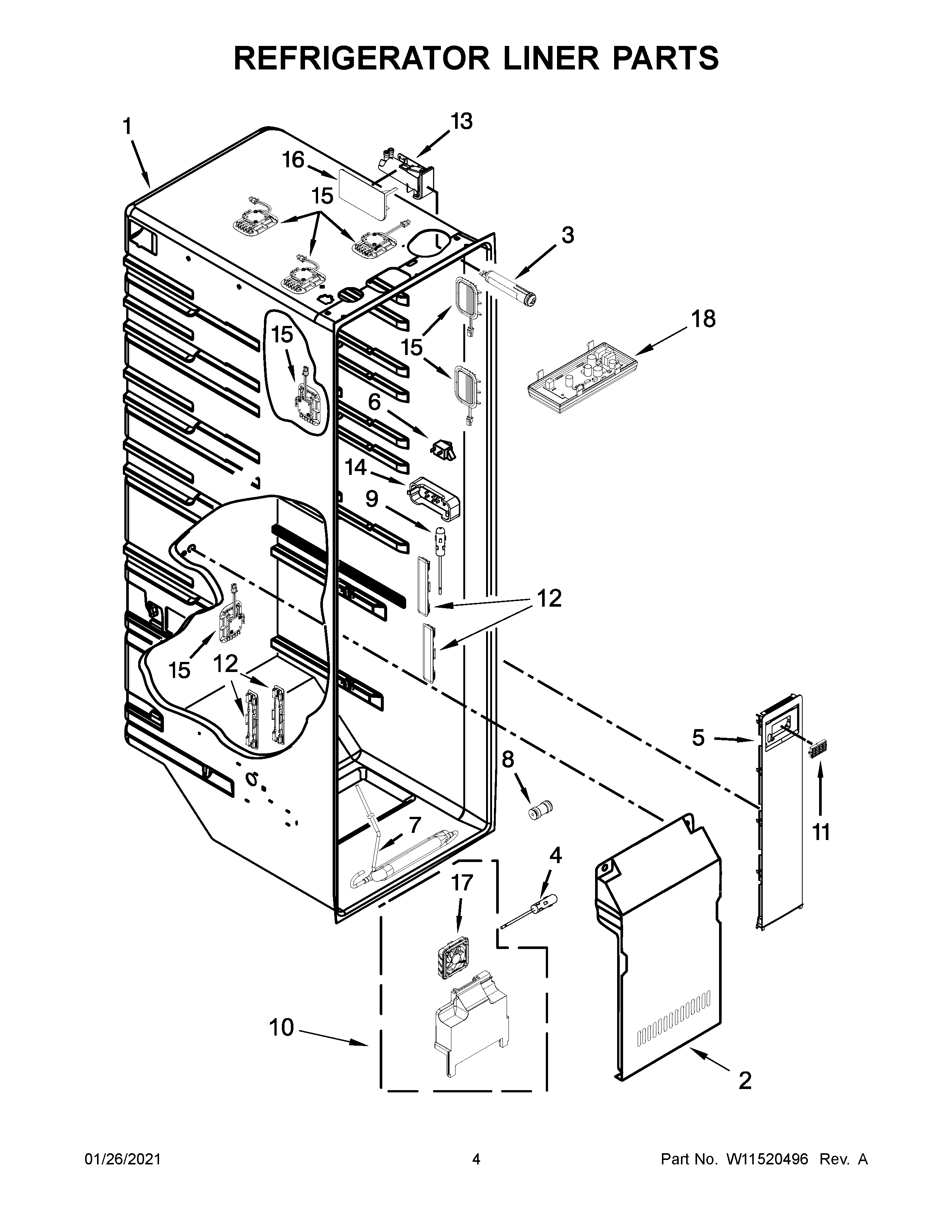

WRS973CIHV01 03 – REFRIGERATOR LINER PARTS

WRS973CIHV01 03 – REFRIGERATOR LINER PARTS

Written by

in

WRS973CIHV01 03 – REFRIGERATOR LINER PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2W11504912 Whirlpool Refrigerator Evaporator Cover
3EDR1RXD1 Whirlpool EveryDrop® Filter 1 Refrigerator Water
4W11546684 Whirlpool Refrigerator Clip
5COVER, AIR TOWER
6W11384469 Whirlpool Door Switch
7W11204869 Whirlpool Refrigerator Reservoir
8WP2300868 Whirlpool Refrigerator Fitting
9WPW10384183 Whirlpool Thermistor
10W11504913 Whirlpool Refrigerator Scroll Fan
11W10311524 Whirlpool FreshFlow Refrigerator Air Filter
12W10876365 Whirlpool Refrigerator Light
13WPW10394053 Whirlpool Refrigerator Housing
14WPW10425252 Whirlpool Refrigerator Cover
15MODULE
16W11501035 Whirlpool Refrigerator Filter Cover
17FAN-SCROLL
18W11226500 Whirlpool LED Light
