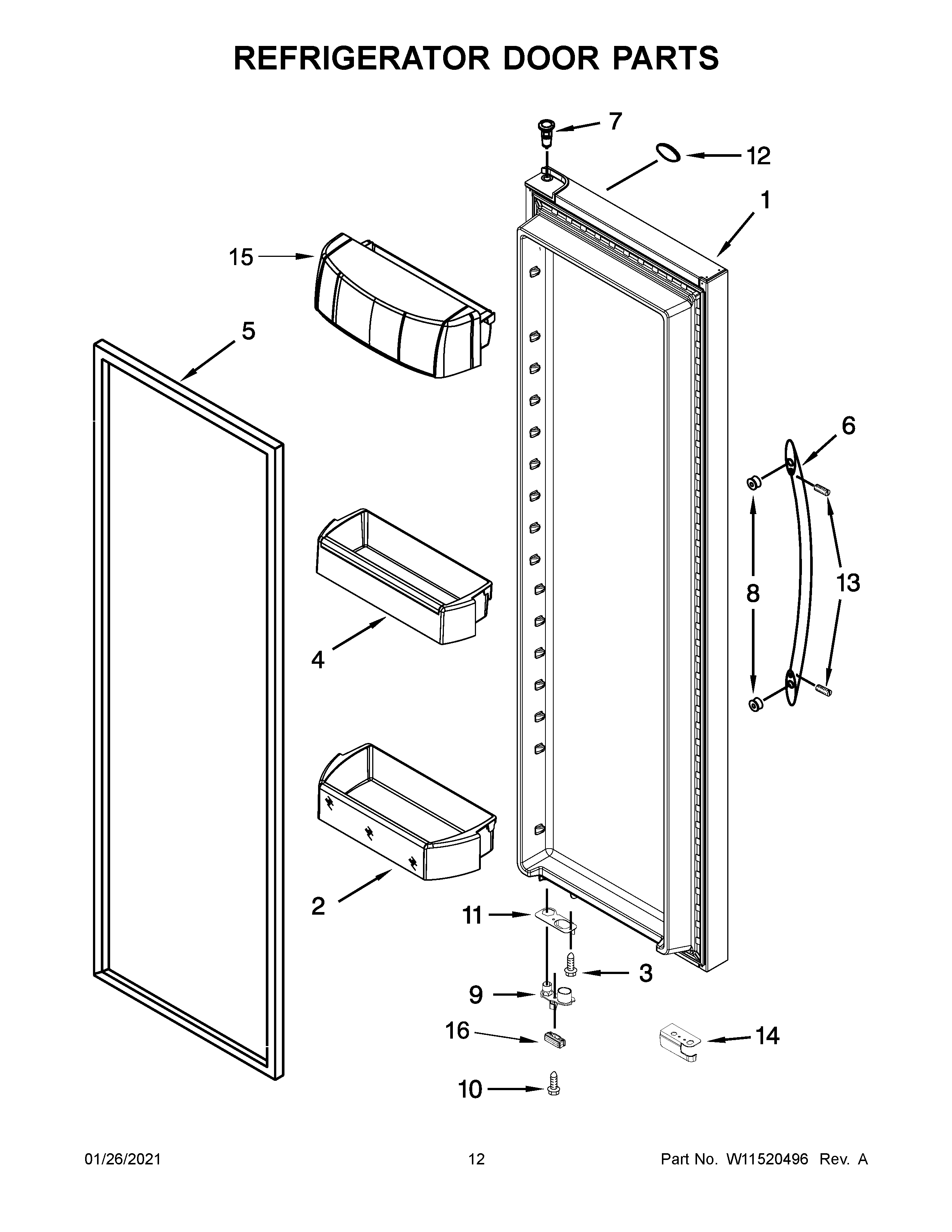

WRS973CIHV01 07 – REFRIGERATOR DOOR PARTS

WRS973CIHV01 07 – REFRIGERATOR DOOR PARTS

Written by

in

WRS973CIHV01 07 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1AW11395843 Whirlpool Door FIP
1DOOR, REFRIGERATOR (INCLUDES ITEM 5) (BLACK STAINLESS)
2WPW10527272 Whirlpool Door Shelf Bin
3SCREW
4WPW10308388 Whirlpool Refrigerator Cantilever Bin
5AW10355588 Whirlpool Refrigerator FIP Gasket
5GASKET-FIP
6W11450223 Whirlpool Handle
6AW11542651 Whirlpool Door Handle
7WP2182181 Whirlpool Refrigerator Thimble
8WPW10661886 Whirlpool Refrigerator Door Handle Screw
9AWPW10257206 Whirlpool Refrigerator Door Cam
9WPW10257201 Whirlpool Door Closing Cam
10WPW10296804 Whirlpool Refrigerator Screw
11W11037957 Whirlpool Refrigerator Bracket
12W11223753 Whirlpool Refrigerator Nameplate
13SCREW
14W10789145 Whirlpool Refrigerator Wire Cover
14AW11661847 Whirlpool Wire Cover
15WPW10324760 Whirlpool Refrigerator Door Shelf Bin
16AW11573367 Whirlpool Refrigerator Door Bumper
16W10407187 Whirlpool Refrigerator Door Bumper
