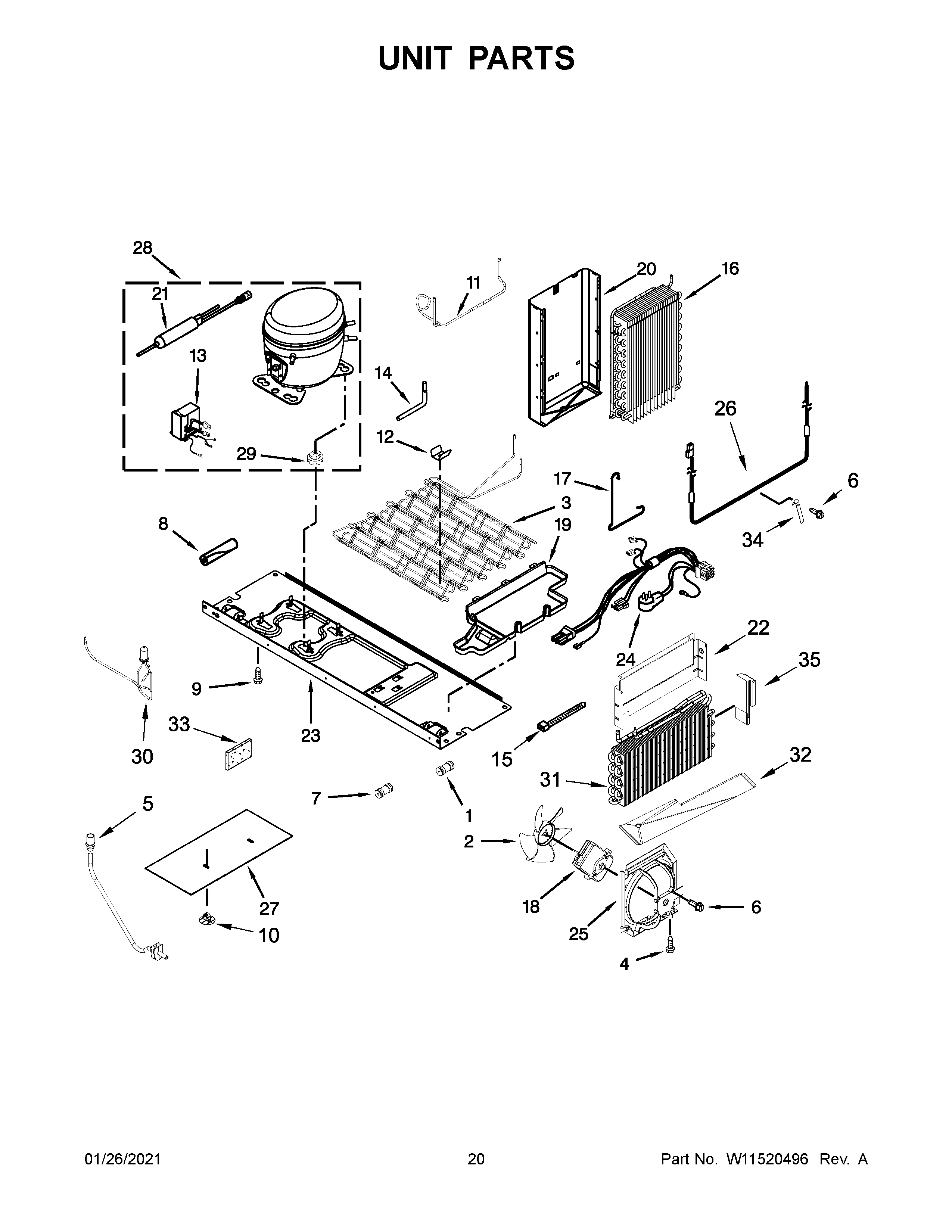

WRS973CIHV01 11 – UNIT PARTS

Products

Position	Product
NI	978030 Whirlpool Refrigerator Valve
NI	VALVE, ACCESS (5/8“)
NI	876764 Whirlpool Refrigerator Primary Valve
NI	978026 Whirlpool Refrigerator Primary Valve
NI	978027 Whirlpool Refrigerator Primary Valve
NI	WP978025 Whirlpool Refrigerator Valve
NI	CABINET (NOT A SERVICEABLE PART)
1	WPW10271543 Whirlpool Refrigerator Connector
2	W11458267 Whirlpool Refrigerator Fan Blade
3	W11708426 Whirlpool Condenser Assembly
4	W10142255 Whirlpool Screw
5	W11409190 Whirlpool Refrigerator Drain Tube
6	WPW10171469 Whirlpool Refrigerator Screw
7	WPW10277958 Whirlpool Refrigerator Fitting
8	SLEEVE
9	BOLT
10	W10296661 Whirlpool Refrigerator Clip
11	WPW10223328 Whirlpool Refrigerator Tube
12	W10683556 Whirlpool Refrigerator Clip
13	W11087200 Whirlpool Refrigerator Inverter Box
14	W10858105 Whirlpool Refrigerator Tube
15	WPW10339879 Whirlpool Wire Tie
16	WPW10239732 Whirlpool Refrigerator Evaporator
17	Clamp
18	W11127829 Whirlpool Refrigerator Condenser Motor
19	W10714793 Whirlpool Refrigerator Evaporator Tray
20	W10376319 Whirlpool Refrigerator Shield
21	WPW10143759 Whirlpool Dryer Filter
22	ASSEMBLY, HEAT SHIELD
23	W10680691 Whirlpool Refrigerator Support Assembly
24	W11661927 Whirlpool Harness Wire
25	WPW10251467 Whirlpool Refrigerator Air Baffle
26	HEATER
27	UNIT COVER, BOTTOM
28	W10779331 Whirlpool Refrigerator Compressor
29	W11661108 Whirlpool Grommet
30	W11590197 Whirlpool Refrigerator Valve
31	W11505166 Whirlpool Refrigerator Evaporator
32	W11720794 Whirlpool Drain Pan
33	W11553819 Whirlpool Refrigerator Insulation
35	W11512404 Whirlpool Insulation Assembly
35A	EPS BACK (LEFT HAND)
