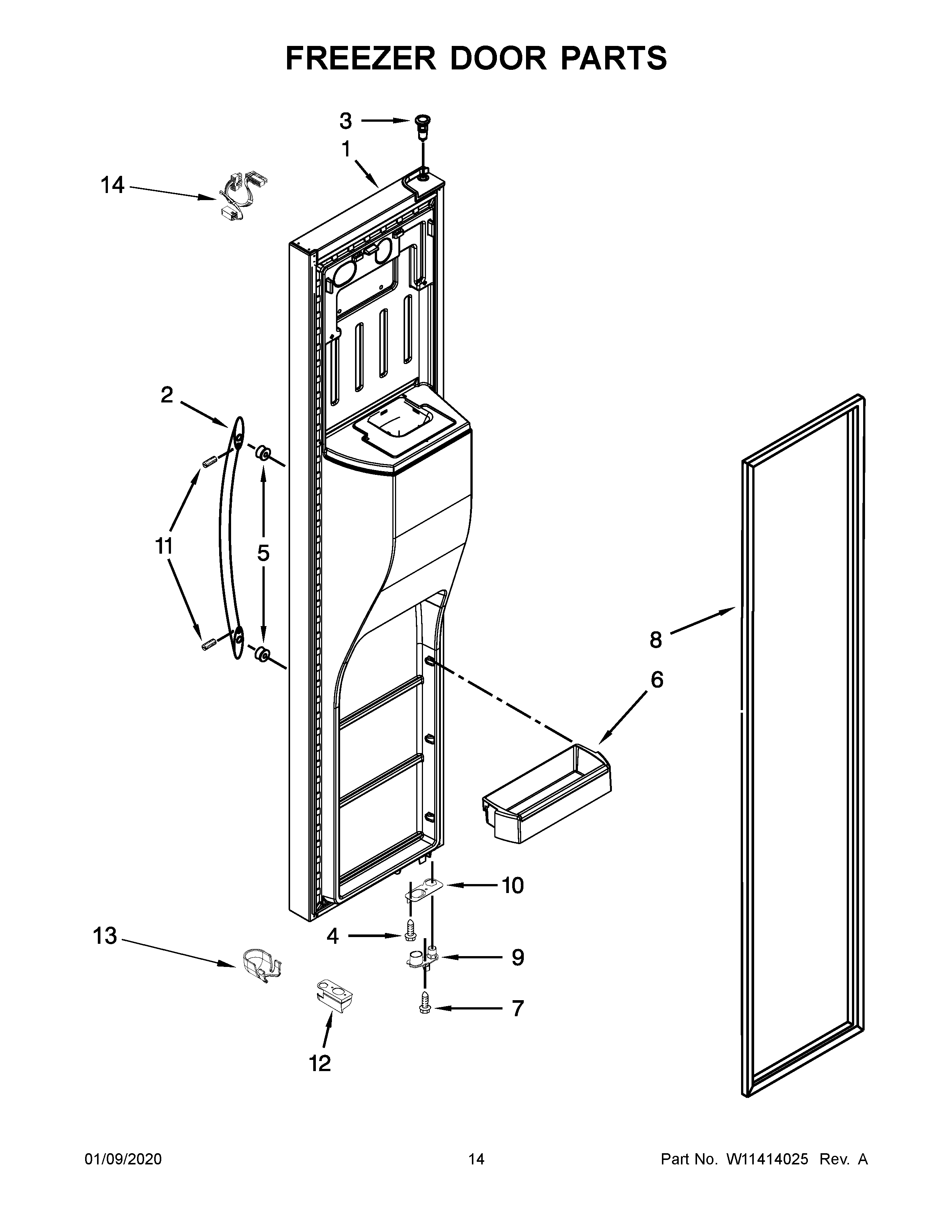

WRS973CIHZ00 08 – FREEZER DOOR PARTS

WRS973CIHZ00 08 – FREEZER DOOR PARTS

Written by

in

WRS973CIHZ00 08 – FREEZER DOOR PARTS

Products

PositionProduct
1AW11395869 Whirlpool Refrigerator Door FIP
1W11395872 Whirlpool Refrigerator DOR FIP
2AHANDLE-REFRIGERATOR SS
2W11450223 Whirlpool Handle
3WP2182181 Whirlpool Refrigerator Thimble
4WPW10296804 Whirlpool Refrigerator Screw
5WPW10661886 Whirlpool Refrigerator Door Handle Screw
6WPW10308389 Whirlpool Cantilever Bin
7SCREW
8GASKET, DOOR (BLACK)
8AGASKET-FIP (AH)
9AWPW10257206 Whirlpool Refrigerator Door Cam
9W11607100 Whirlpool Refrigerator Thimble Cam
10W11293380 Whirlpool Refrigerator Bracket
11SCREW
12AW10632060 Whirlpool Refrigerator Wire Cover
12WPW10632062 Whirlpool Refrigerator Wire Cover
13W10323148 Whirlpool Refrigerator Wire Cover
14W11293361 Whirlpool Refrigerator Wire Jumper
