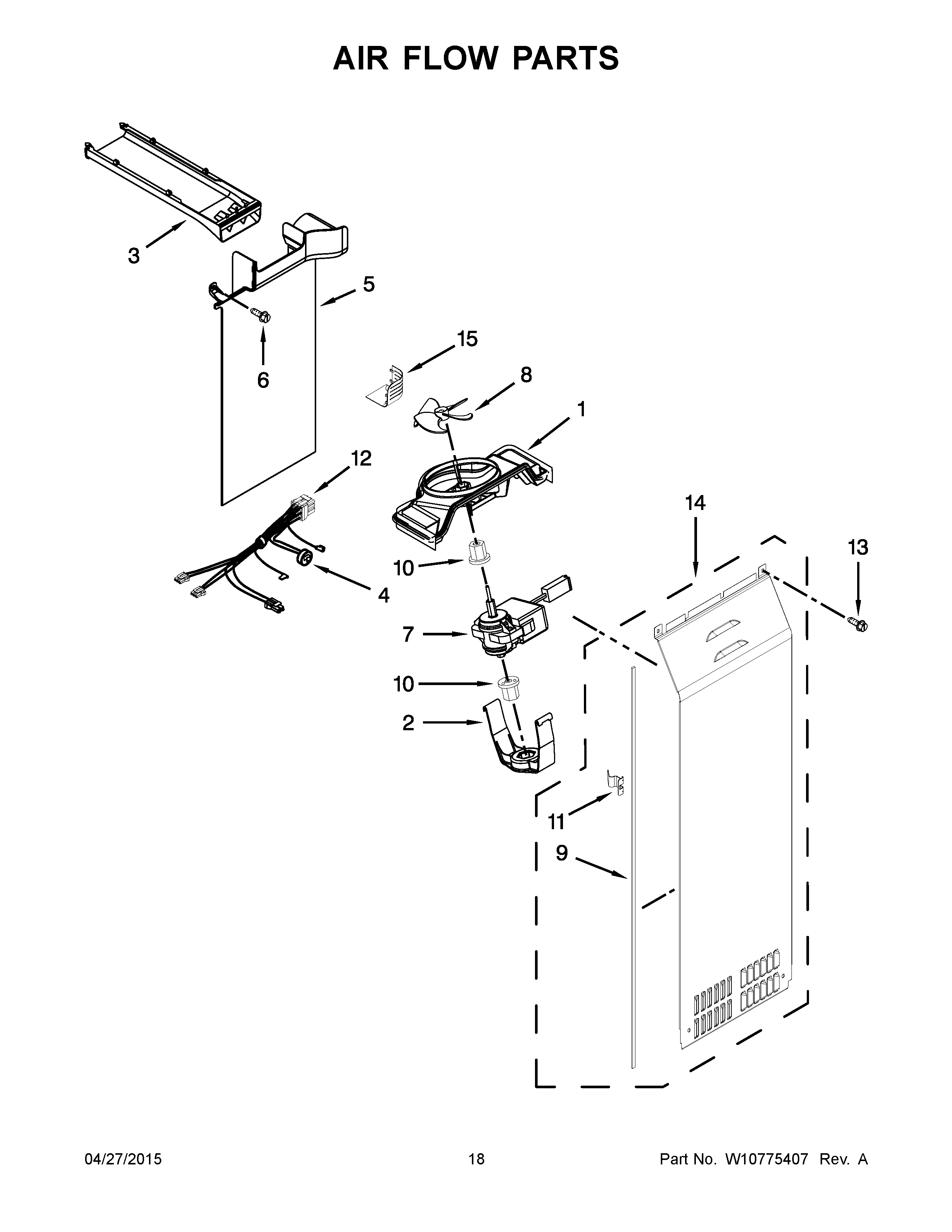

WRS975SIDM00 10 – AIR FLOW PARTS

WRS975SIDM00 10 – AIR FLOW PARTS

Written by

in

WRS975SIDM00 10 – AIR FLOW PARTS

Products

PositionProduct
1W10251462 Whirlpool Refrigerator Scroll Fan
28201663 Whirlpool Refrigerator Primary Fan Blade
3W10515038 Whirlpool Refrigerator Air Duct
4CABINET (NOT A SERVICEABLE PART)
5AIR DUCT FREEZER
6WP489478 Whirlpool Refrigerator Screw
7W11396715 Whirlpool Refrigerator Evaporator Motor
8WP2169142 Whirlpool Fan Blade
9W10240370 Whirlpool Refrigerator Gasket
10W11669856 Whirlpool Grommet
11W11232019 Whirlpool Refrigerator Clip
12WIRE ASSY-EVAP FAN
13WP693995 Whirlpool Screw
14WPW10388268 Whirlpool Refrigerator Evaporator Cover
15W10260382 Whirlpool Refrigerator Cover
