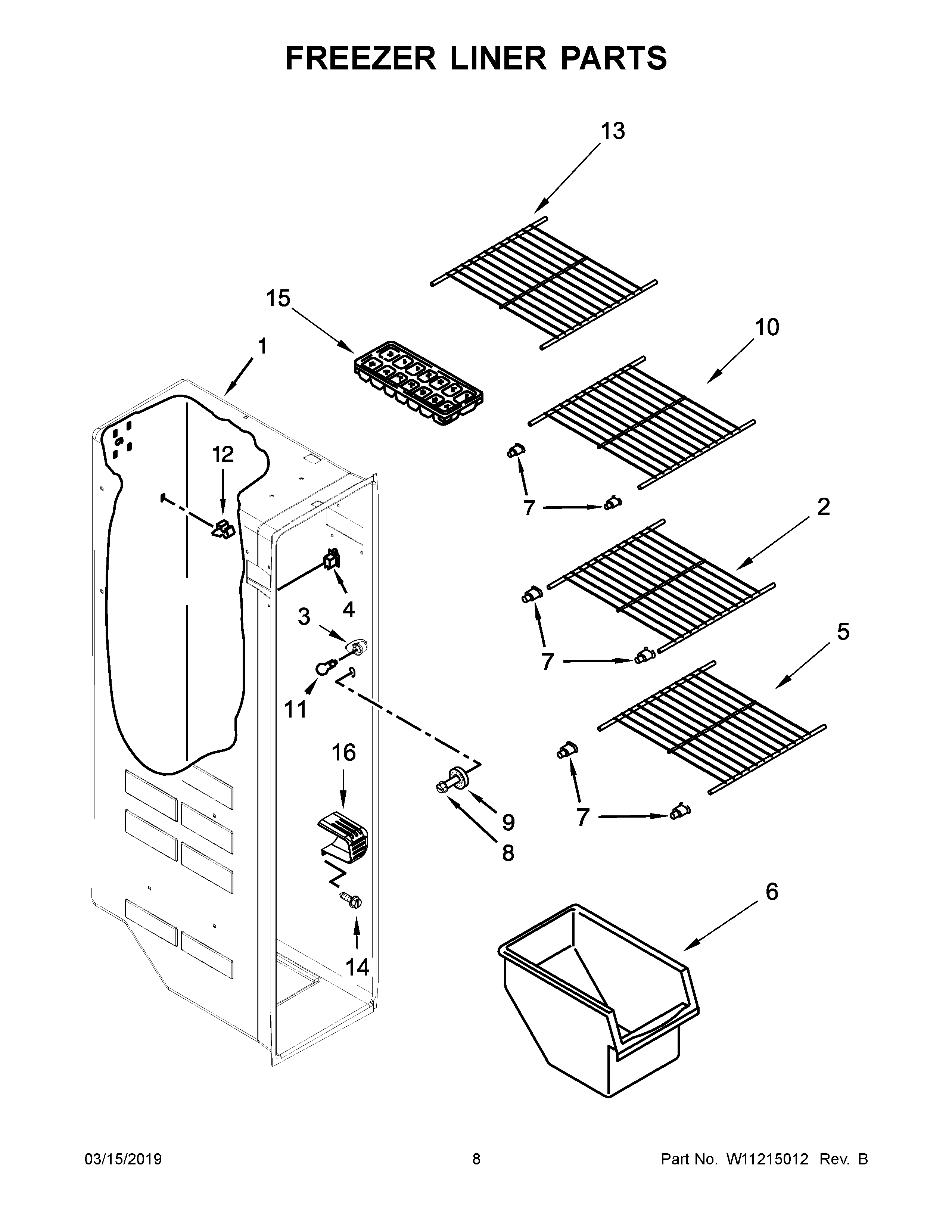

WRSA15SNHN00 05 – FREEZER LINER PARTS

WRSA15SNHN00 05 – FREEZER LINER PARTS

Written by

in

WRSA15SNHN00 05 – FREEZER LINER PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2WPW10318948 Whirlpool Wire Shelf
3SOCKET
4W11384469 Whirlpool Door Switch
5WPW10318947 Whirlpool Wire Shelf
6WPW10144409 Whirlpool Refrigerator Freezer Bin
7WPW10130299 Whirlpool Refrigerator Cup
8WP3-24004-109 Whirlpool Refrigerator Screw
9W11223328 Whirlpool Refrigerator Shelf Stud
10WPW10318961 Whirlpool Refrigerator Wire Shelf
11W11216993 Whirlpool Refrigerator Light Bulb
122215823 Whirlpool Refrigerator Clip
13W10318945 Whirlpool Refrigerator Wire Shelf
14W10142289 Whirlpool Air Conditioner Screw
15WP841180A Whirlpool Microwave Glass Turntable Tray
16Light Lens
