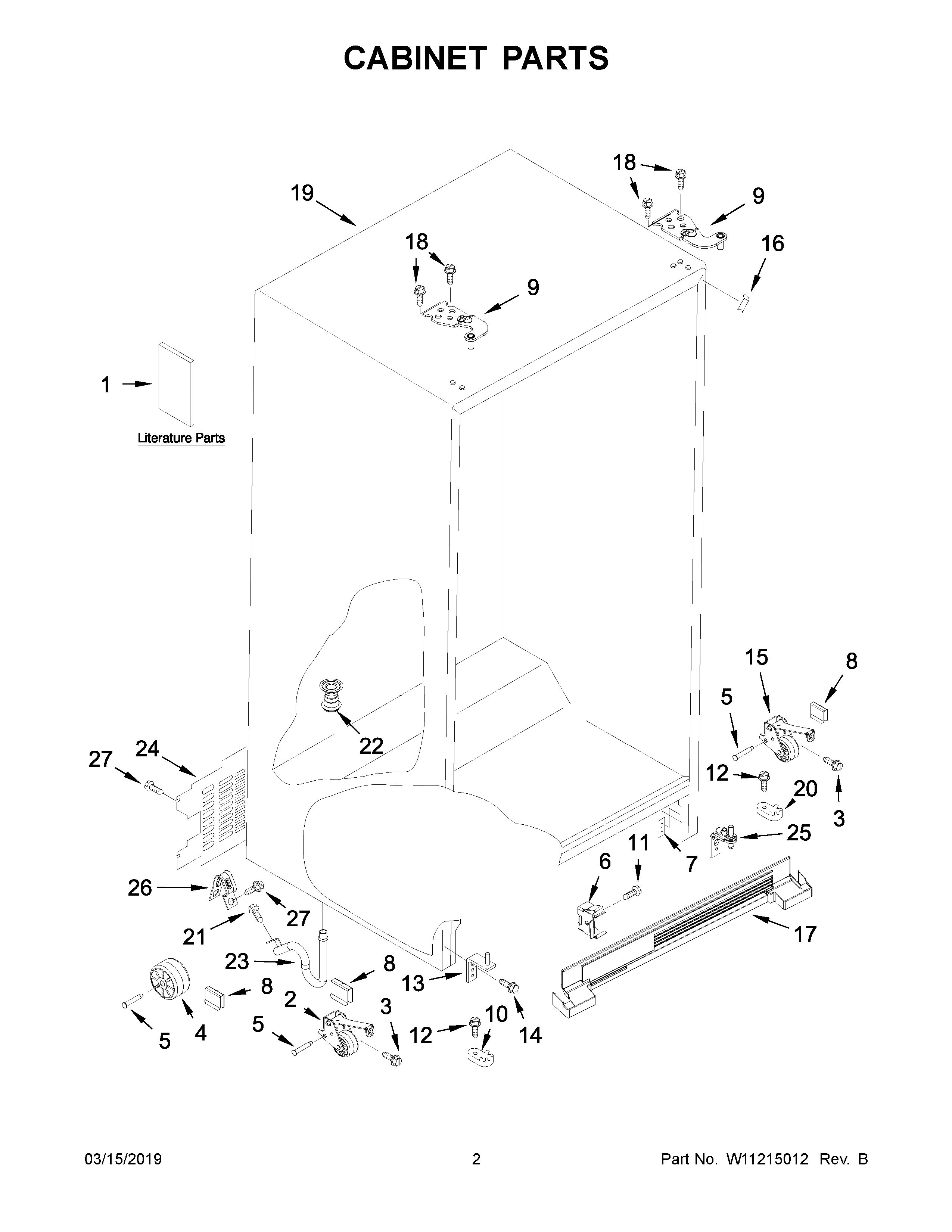

WRSA15SNHZ00 02 – CABINET PARTS

WRSA15SNHZ00 02 – CABINET PARTS

Written by

in

WRSA15SNHZ00 02 – CABINET PARTS

Products

PositionProduct
1BENERGY GUIDE
1ATECH SHEET
1USE AND CARE GUIDE
2WPW10304660 Whirlpool Wheel Assembly
3W10803534 Whirlpool Screw
4WPW10475495 Whirlpool Roller Assembly
5W11594405 Whirlpool Axle
6WP2155013 Whirlpool Refrigerator Clip
7W11036715 Whirlpool Refrigerator Plate
7AW10904380 Whirlpool Plate
9W11579508 Whirlpool Top Hinge
9AW11505709 Whirlpool Refrigerator Door Hinge
10W11679635 Whirlpool Door Cam
11WP489128 Whirlpool Refrigerator Screw
12WP489483 Whirlpool Screw
13W11687636 Whirlpool Refrigerator Door Hinge
14WP489497 Whirlpool Screw
15WPW10304659 Whirlpool Wheel Assembly
16W11219642 Whirlpool Refrigerator Filler
17W11282561 Whirlpool Refrigerator Grille
18WPW10308751 Whirlpool Screw
19CABINET (NOT A SERVICEABLE PART)
20CAM-DOOR
21WP489464 Whirlpool Refrigerator Screw
22W11566763 Whirlpool Fitting
23W11512417 Whirlpool Drain Connector
24W11678840 Whirlpool Ice Door
25W11399415 Whirlpool Refrigerator Door Hinge
26549193 Whirlpool Refrigerator Power Clamp
27SCREW
