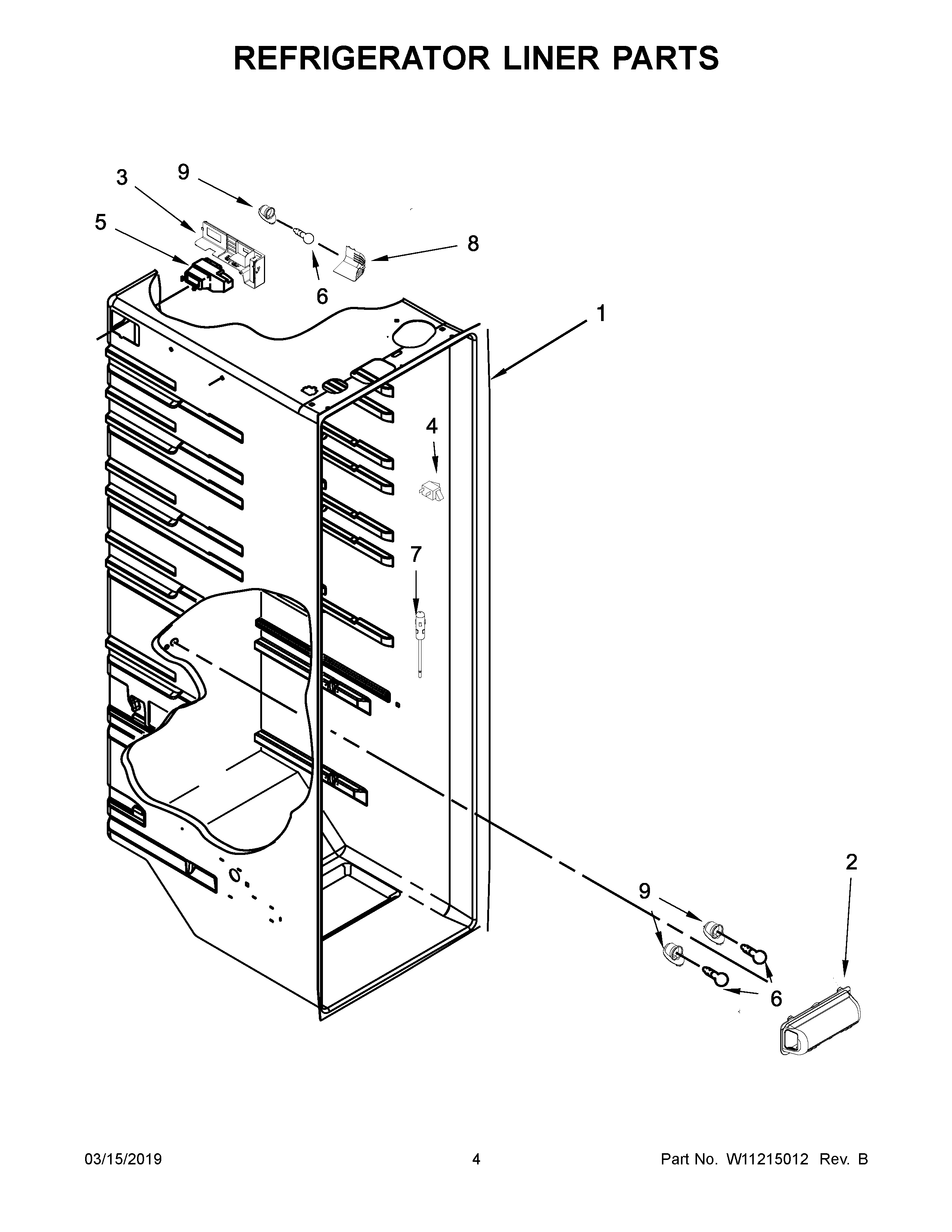

WRSA15SNHZ00 03 – REFRIGERATOR LINER PARTS

WRSA15SNHZ00 03 – REFRIGERATOR LINER PARTS

Written by

in

WRSA15SNHZ00 03 – REFRIGERATOR LINER PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2W11239891 Whirlpool Refrigerator Light Lens
3W11190849 Whirlpool Refrigerator Control Box
4W11384469 Whirlpool Door Switch
5W11216945 Whirlpool Refrigerator Diffuser
6W11216993 Whirlpool Refrigerator Light Bulb
7WPW10384183 Whirlpool Thermistor
8W10900030 Whirlpool Refrigerator Cover
9W11447232 Whirlpool Refrigerator Socket
