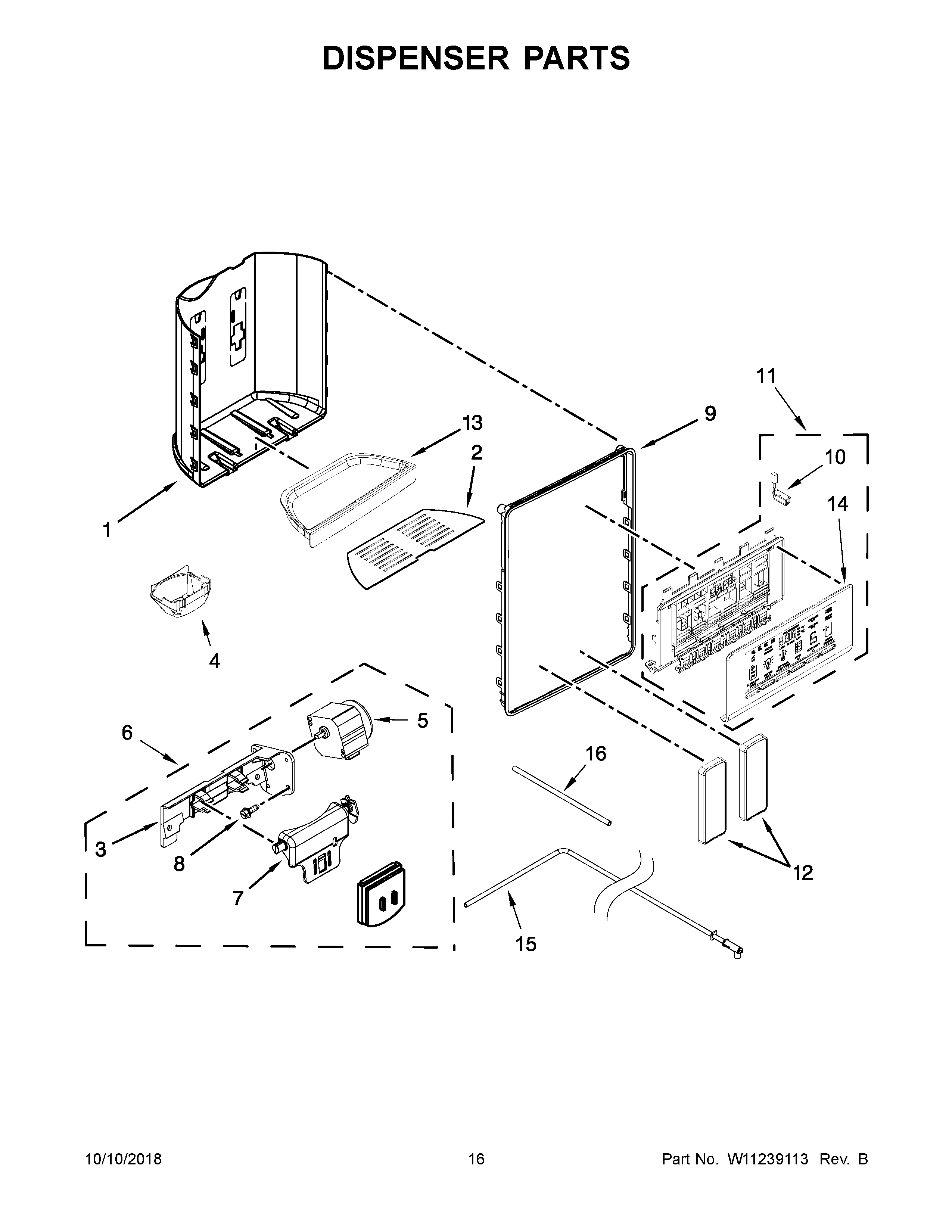

WRSA71CIHN00 09 – DISPENSER PARTS

Products

Position	Product
1	W11309262 Whirlpool Separator
1A	W10276226 Whirlpool Refrigerator Separator
2	WPW10276209 Whirlpool Grille
3	W10174827 Whirlpool Refrigerator Bracket
4	WPW10435760 Whirlpool Refrigerator Ice Guide
5	WPW10205978 Whirlpool Motor
6	W11098702 Whirlpool Refrigerator Ice Door
7	WPW10346124 Whirlpool Refrigerator Support
8	WP4449745 Whirlpool Screw
9	RING, TRIM (CHROMIUM FROST)
10	W11216993 Whirlpool Refrigerator Light Bulb
11	W11239666-includeCORE Whirlpool W11239666 Refrigerator Electronic Control Board + Core
12	W11624941 Whirlpool Refrigerator Pad
13A	W10276225 Whirlpool Refrigerator Drip Tray
13	TRAY, DRIP (SUNSET BRONZE)
14	W10458867 Whirlpool Refrigerator Escutcheon
15	WPW10386778 Whirlpool Refrigerator Water Tube
16	W11620106 Whirlpool Water Tube
