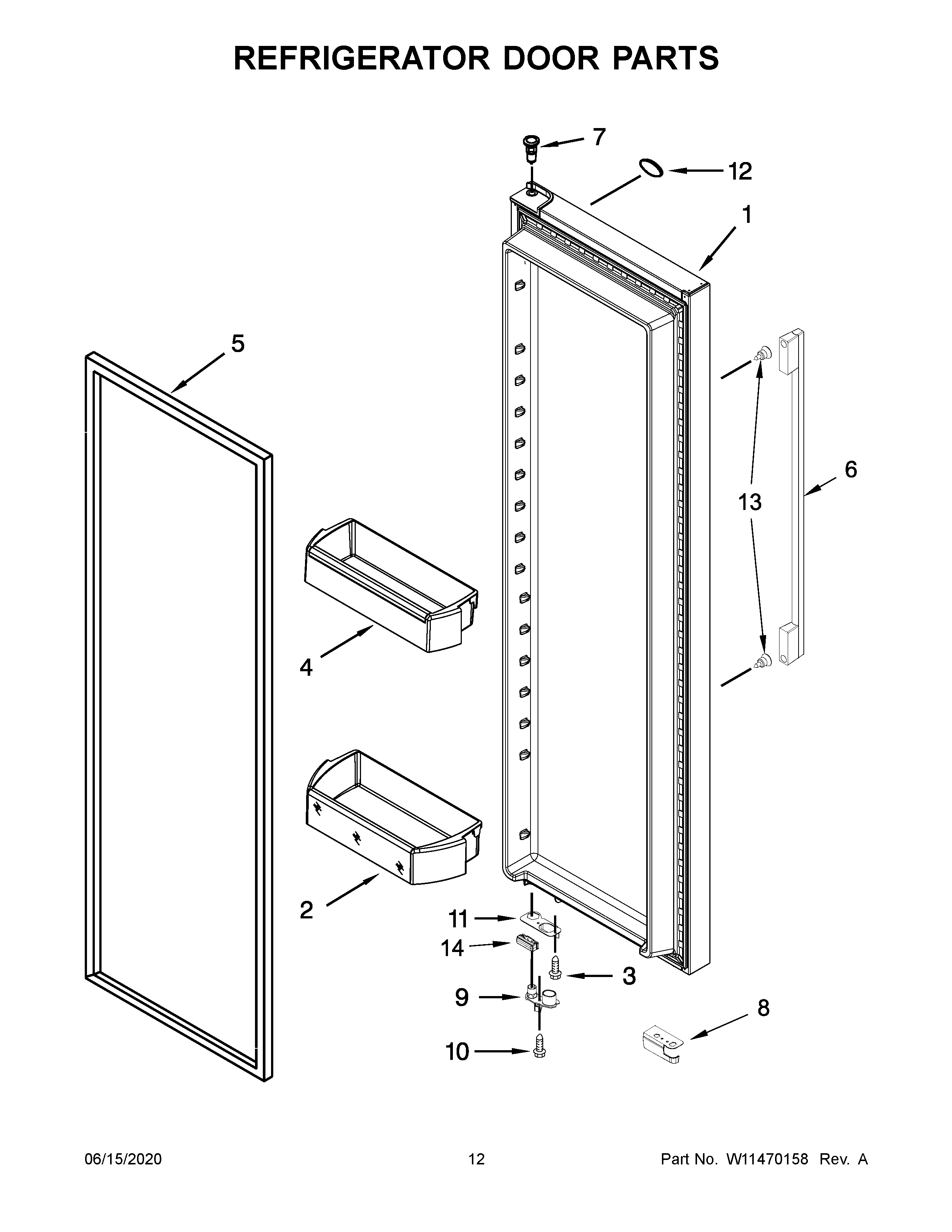

WRSA71CIHN01 07 – REFRIGERATOR DOOR PARTS

WRSA71CIHN01 07 – REFRIGERATOR DOOR PARTS

Written by

in

WRSA71CIHN01 07 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1LW11091615 Whirlpool Refrigerator DOR-FIP
1ALW11091610 Whirlpool Refrigerator Door Assembly
2WPW10710203 Whirlpool Refrigerator Door Shelf Bin
3SCREW
4WPW10451873 Whirlpool Door Shelf Bin
5W10355582 Whirlpool Refrigerator Door Gasket
6W11416489 Whirlpool Refrigerator Handle
7WP2182181 Whirlpool Refrigerator Thimble
8W11661847 Whirlpool Wire Cover
9WPW10257203 Whirlpool Refrigerator Lower Door Closing Cam
10SCREW
11W11037957 Whirlpool Refrigerator Bracket
12W11223753 Whirlpool Refrigerator Nameplate
13SCREW
14W11573367 Whirlpool Refrigerator Door Bumper
