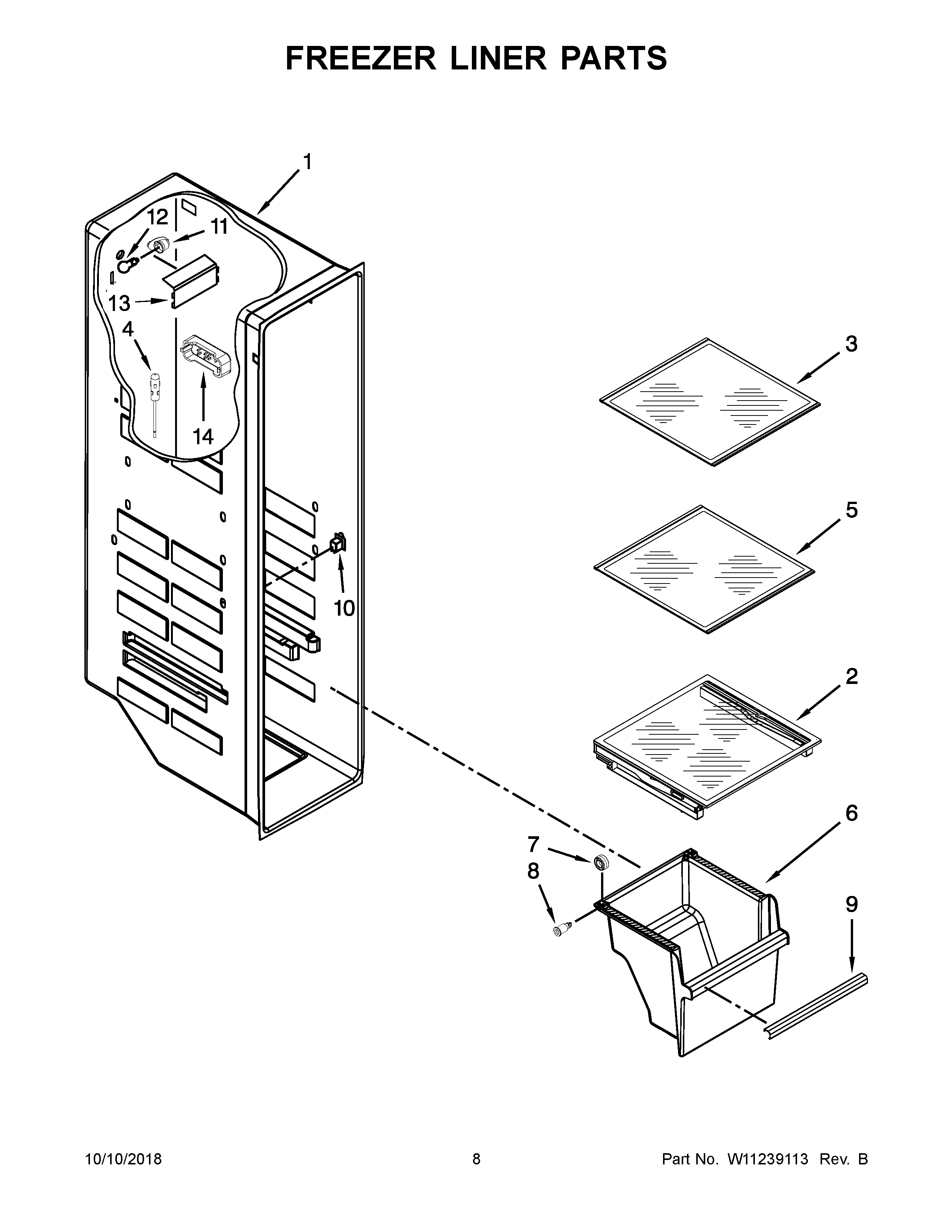

WRSA71CIHZ00 05 – FREEZER LINER PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2W10836801 Whirlpool Refrigerator Drawer Cover
3W11130202 Whirlpool Refrigerator Glass Shelf
4THERMISTOR
5SHELF-GLASS
6W11106313 Whirlpool Refrigerator Freezer Bin
7W11164152 Whirlpool Drawer Roller
8W11175807 Whirlpool Axle Assembly
9W11236850 Whirlpool Refrigerator Pan Trim
10W11123941 Whirlpool Refrigerator Switch
114387478 Whirlpool Refrigerator Light Socket
12W11216993 Whirlpool Refrigerator Light Bulb
13WPW10269101 Whirlpool Refrigerator Light Lens
14WPW10425252 Whirlpool Refrigerator Cover
