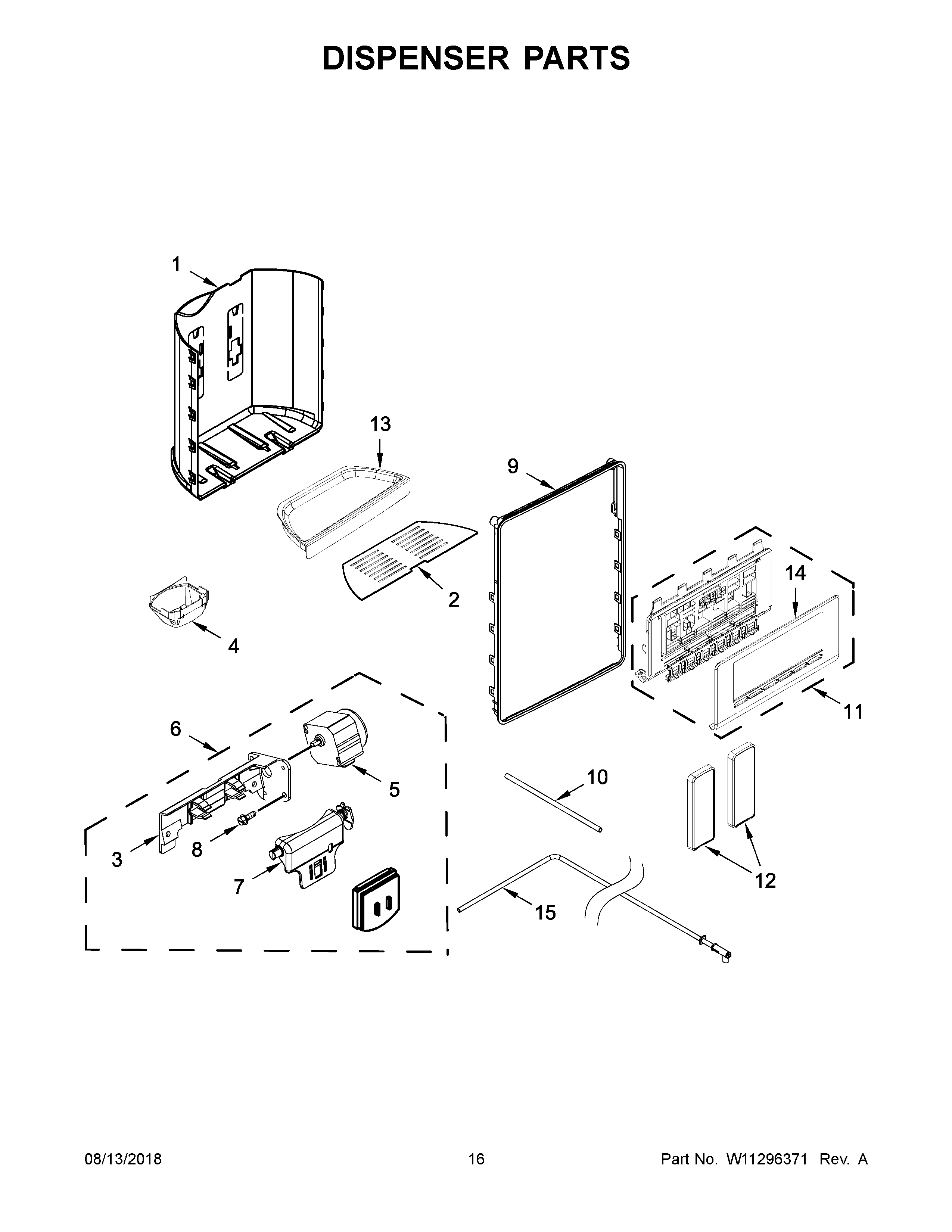

WRSA88FIHN00 09 – DISPENSER PARTS

Products

Position	Product
1	W11309262 Whirlpool Separator
1A	W10276226 Whirlpool Refrigerator Separator
2	WPW10276209 Whirlpool Grille
3	W10174827 Whirlpool Refrigerator Bracket
4	WPW10435760 Whirlpool Refrigerator Ice Guide
5	WPW10205978 Whirlpool Motor
6	W11098702 Whirlpool Refrigerator Ice Door
7	WPW10346124 Whirlpool Refrigerator Support
8	WP4449745 Whirlpool Screw
9	RING, TRIM (CHROMIUM FROST)
10	W11619800 Whirlpool Refrigerator Water Tube
11	W11130216-includeCORE Whirlpool W11130216 Refrigerator Electronic Control Board + Core
12	W11624941 Whirlpool Refrigerator Pad
13A	W10276225 Whirlpool Refrigerator Drip Tray
13	TRAY, DRIP (SUNSET BRONZE)
14	W10458867 Whirlpool Refrigerator Escutcheon
15	WPW10386778 Whirlpool Refrigerator Water Tube
