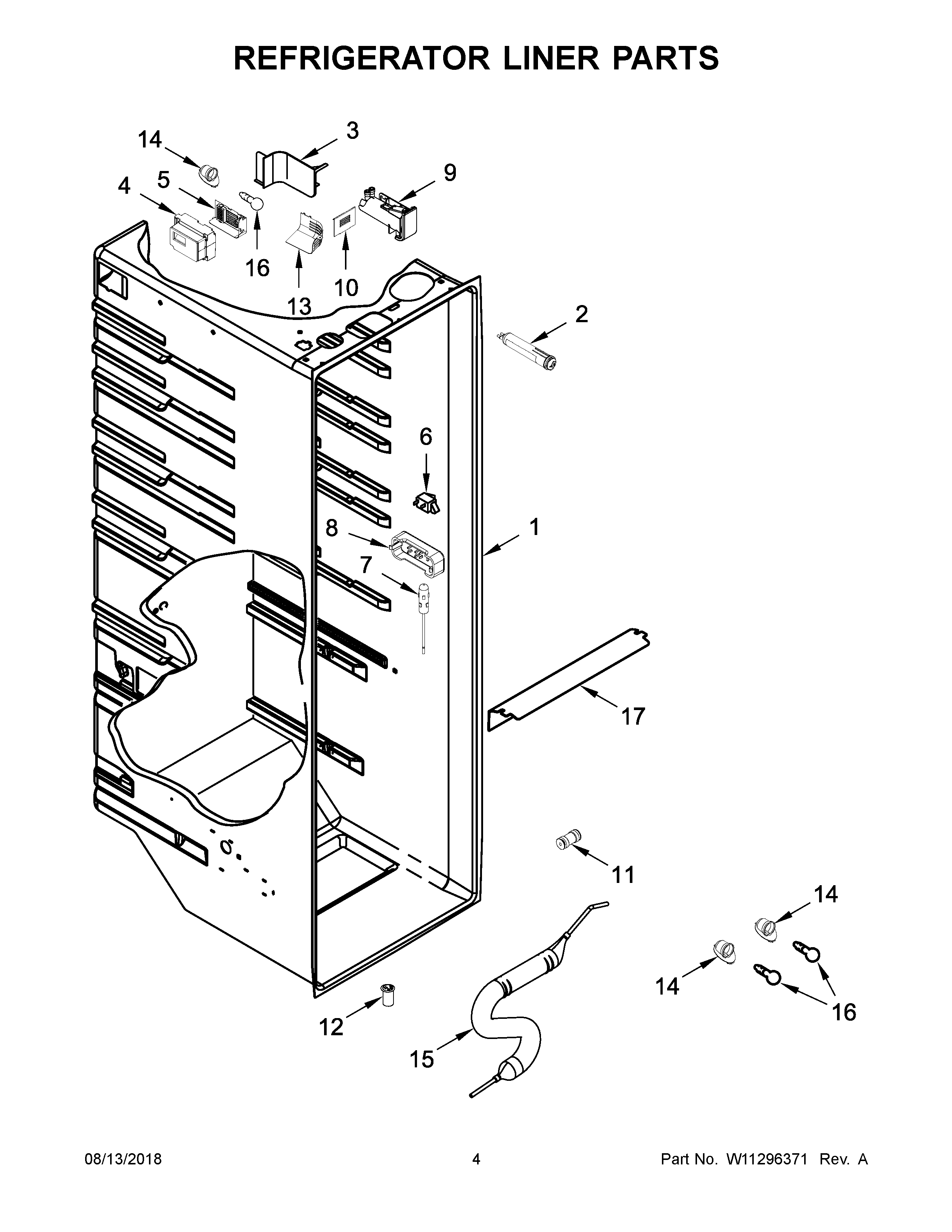

WRSA88FIHZ00 03 – REFRIGERATOR LINER PARTS

WRSA88FIHZ00 03 – REFRIGERATOR LINER PARTS

Written by

in

WRSA88FIHZ00 03 – REFRIGERATOR LINER PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2EDR1RXD1 Whirlpool EveryDrop® Filter 1 Refrigerator Water
3W11501035 Whirlpool Refrigerator Filter Cover
4DIFFUSER
5WPW10457601 Whirlpool Refrigerator Support
6W11123941 Whirlpool Refrigerator Switch
7THERMISTOR
8WPW10425252 Whirlpool Refrigerator Cover
9WPW10394053 Whirlpool Refrigerator Housing
10WPW10457603 Whirlpool Refrigerator Cover
11WPW10271543 Whirlpool Refrigerator Connector
12WP2210509 Whirlpool Refrigerator Tub Valve
13W10893232 Whirlpool Refrigerator Cover
144387478 Whirlpool Refrigerator Light Socket
15W11613294 Whirlpool Refrigerator Reservoir
16W11216993 Whirlpool Refrigerator Light Bulb
17WPW10269099 Whirlpool Refrigerator Light Lens
