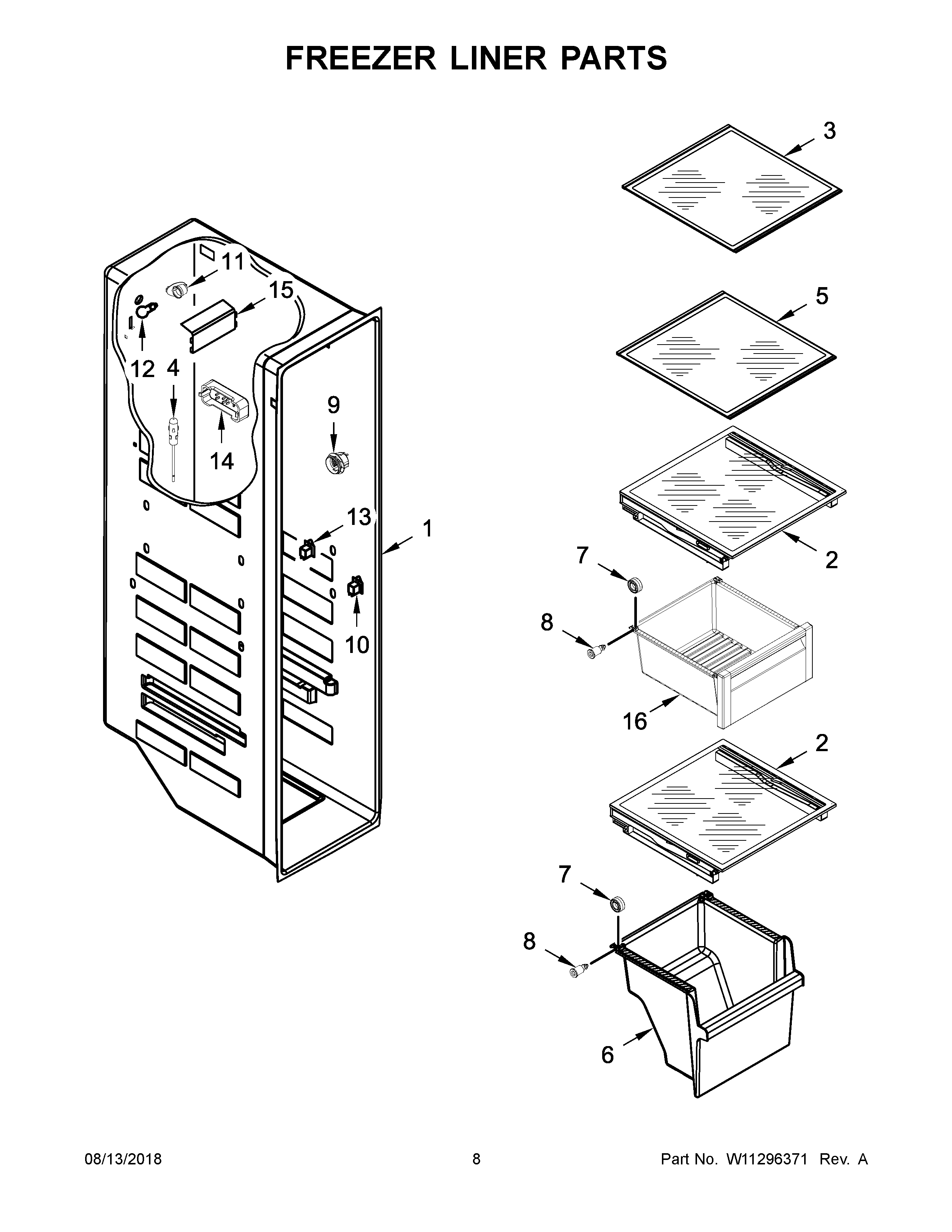

WRSA88FIHZ00 05 – FREEZER LINER PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2W11130204 Whirlpool Refrigerator Cover
3W11130205 Whirlpool Refrigerator Glass Shelf
4THERMISTOR
5W11130212 Whirlpool Refrigerator Glass Shelf
6WPW10322649 Whirlpool Refrigerator Freezer Bin
7W11164152 Whirlpool Drawer Roller
8W11175807 Whirlpool Axle Assembly
9SOCKET
10W11123941 Whirlpool Refrigerator Switch
114387478 Whirlpool Refrigerator Light Socket
12W11216993 Whirlpool Refrigerator Light Bulb
13W11396033 Whirlpool Refrigerator Rocker Switch
14WPW10425252 Whirlpool Refrigerator Cover
15W11130215 Whirlpool Refrigerator Light Lens
16WPW10322653 Whirlpool Refrigerator Freezer Bin
