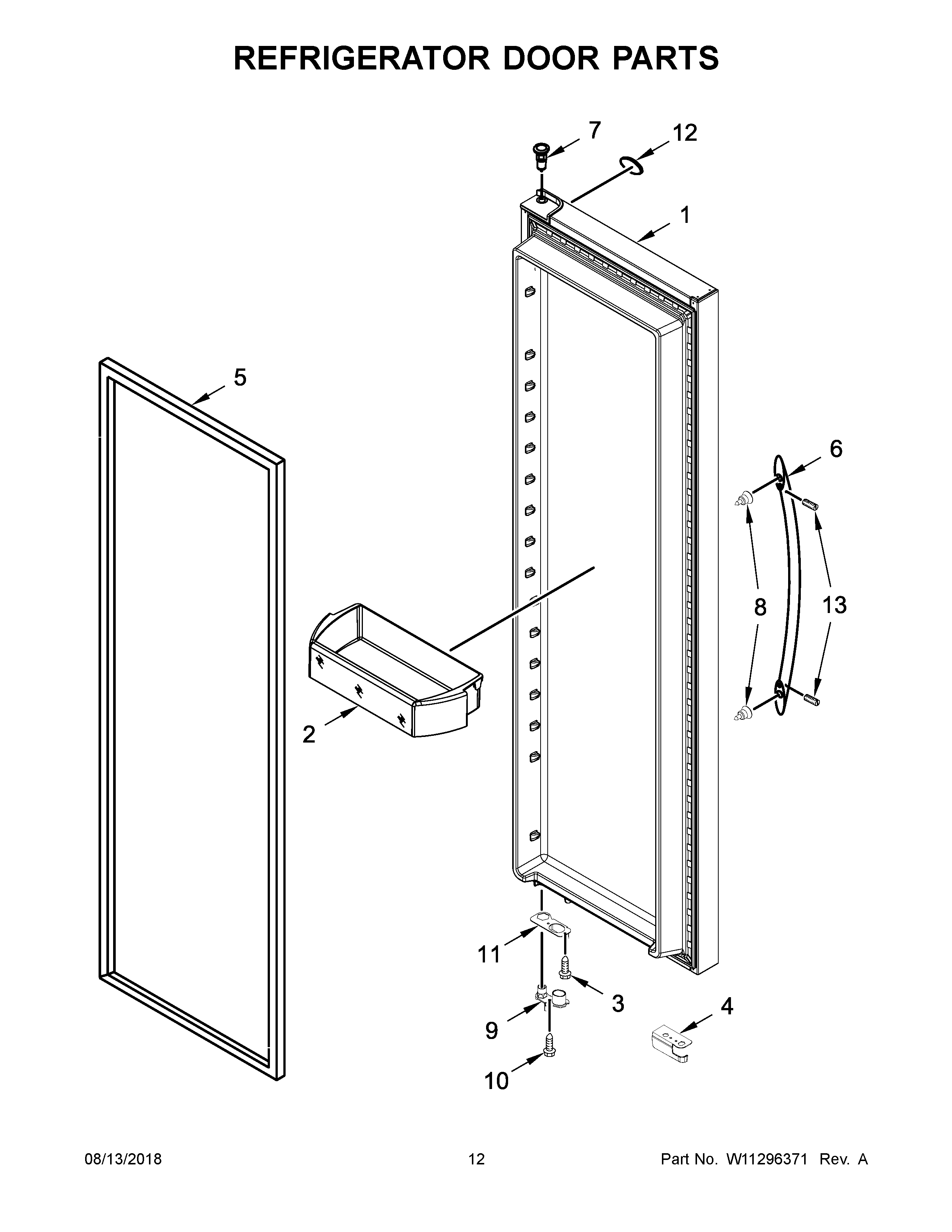

WRSA88FIHZ00 07 – REFRIGERATOR DOOR PARTS

WRSA88FIHZ00 07 – REFRIGERATOR DOOR PARTS

Written by

in

WRSA88FIHZ00 07 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1LW11038912 Whirlpool Refrigerator DOR-FIP
1ALW11037738 Whirlpool Refrigerator Door Assembly
2WPW10710203 Whirlpool Refrigerator Door Shelf Bin
3SCREW
4W11661847 Whirlpool Wire Cover
5W10355582 Whirlpool Refrigerator Door Gasket
6W11416489 Whirlpool Refrigerator Handle
7WP2182181 Whirlpool Refrigerator Thimble
8WPW10661886 Whirlpool Refrigerator Door Handle Screw
9WPW10257203 Whirlpool Refrigerator Lower Door Closing Cam
10SCREW
11W11037957 Whirlpool Refrigerator Bracket
12W11223753 Whirlpool Refrigerator Nameplate
13SCREW
