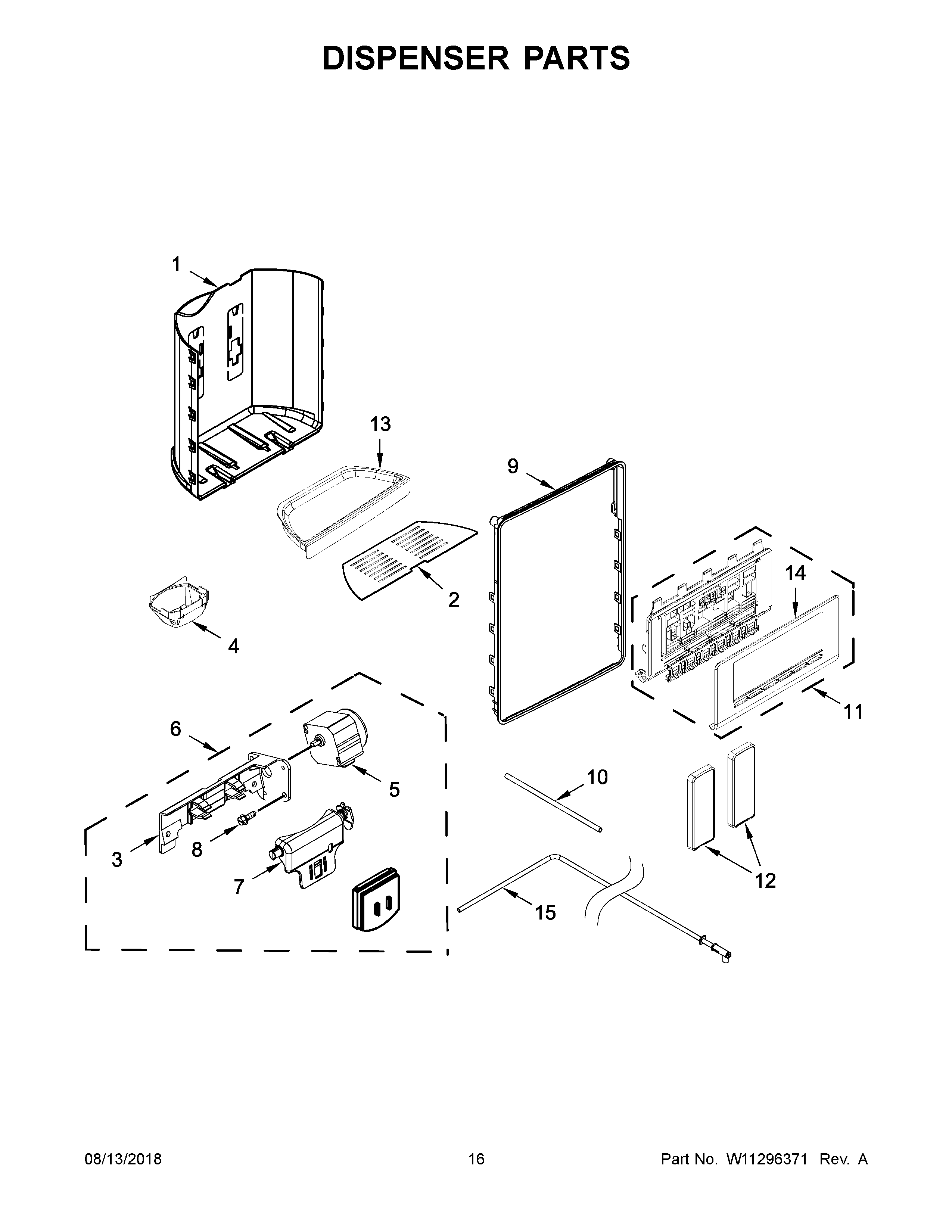

WRSA88FIHZ00 09 – DISPENSER PARTS

WRSA88FIHZ00 09 – DISPENSER PARTS

Written by

in

WRSA88FIHZ00 09 – DISPENSER PARTS

Products

PositionProduct
1W11309262 Whirlpool Separator
1AW10276226 Whirlpool Refrigerator Separator
2WPW10276209 Whirlpool Grille
3W10174827 Whirlpool Refrigerator Bracket
4WPW10435760 Whirlpool Refrigerator Ice Guide
5WPW10205978 Whirlpool Motor
6W11098702 Whirlpool Refrigerator Ice Door
7WPW10346124 Whirlpool Refrigerator Support
8WP4449745 Whirlpool Screw
9RING, TRIM (CHROMIUM FROST)
10W11619800 Whirlpool Refrigerator Water Tube
11W11130216-includeCORE Whirlpool W11130216 Refrigerator Electronic Control Board + Core
12W11624941 Whirlpool Refrigerator Pad
13AW10276225 Whirlpool Refrigerator Drip Tray
13TRAY, DRIP (SUNSET BRONZE)
14W10458867 Whirlpool Refrigerator Escutcheon
15WPW10386778 Whirlpool Refrigerator Water Tube
