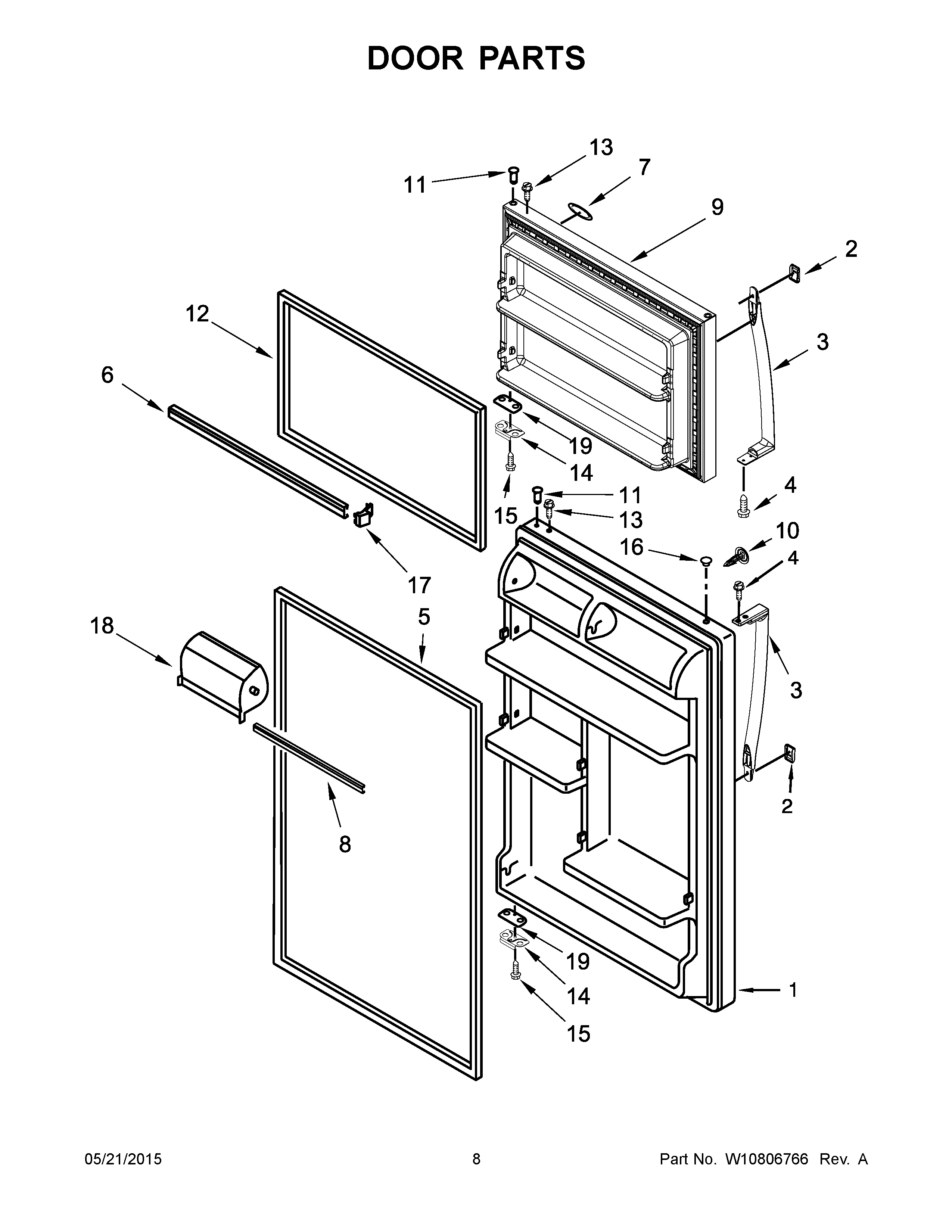

WRT104TFDT01 05 – DOOR PARTS

WRT104TFDT01 05 – DOOR PARTS

Written by

in

WRT104TFDT01 05 – DOOR PARTS

Products

PositionProduct
1BREFRIGERATOR DOOR (INCLUDES ILLUSTRATION 5) (BISCUIT/BISQUE)
1ALW10570511 Whirlpool Refrigerator DOR-FIP
1LW10573334 Whirlpool Refrigerator Door FIP
2BW10672341 Whirlpool Refrigerator Cover
2AW10838316 Whirlpool Refrigerator Cover
2WPW10672338 Whirlpool Handle Trim Cap
3AWPW10672334 Whirlpool Refrigerator Handle
3BW10859918 Whirlpool Refrigerator Handle
3WPW10672333 Whirlpool Refrigerator White Door Handle
4WP489357 Whirlpool Recessed Screw
5WP2319265T Whirlpool Refrigerator FIP Gasket
5A2319265B Whirlpool Refrigerator FIP Gasket
6WP2266727 Whirlpool Refrigerator Door Trim
7AW11178521 Whirlpool Dishwasher Nameplate
8W11129820 Whirlpool Refrigerator Door Trim
9LW10573340 Whirlpool Refrigerator Door FIP
9AFREEZER DOOR (INCLUDES ILLUSTRATION 12) (BLACK)
9BFREEZER DOOR (INCLUDES ILLUSTRATION 12) (BISCUIT/BISQUE)
10BW10830981 Whirlpool Refrigerator Plug Handle
10W10830984 Whirlpool Handle Plug
10AW10830983 Whirlpool Refrigerator Handle Plug
11WP2183003 Whirlpool Thimble
12BWP2319263T Whirlpool Refrigerator FIP Gasket
12AWP2319263B Whirlpool Refrigerator Black Door Gasket
12GASKET-FIP
13WP8281206 Whirlpool Refrigerator Screw
14W11745278 Whirlpool Bracket
15WP488921 Whirlpool Refrigerator Screw
16BWP2212649 Whirlpool Refrigerator Button Plug
16AWP2212651 Whirlpool Refrigerator Button Plug
16WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
17WP2156003 Whirlpool Refrigerator Door Shelf End Cap
18DOOR-COMP
19WP2258681W Whirlpool Refrigerator Shim
19A2258681B Whirlpool Refrigerator Shim
