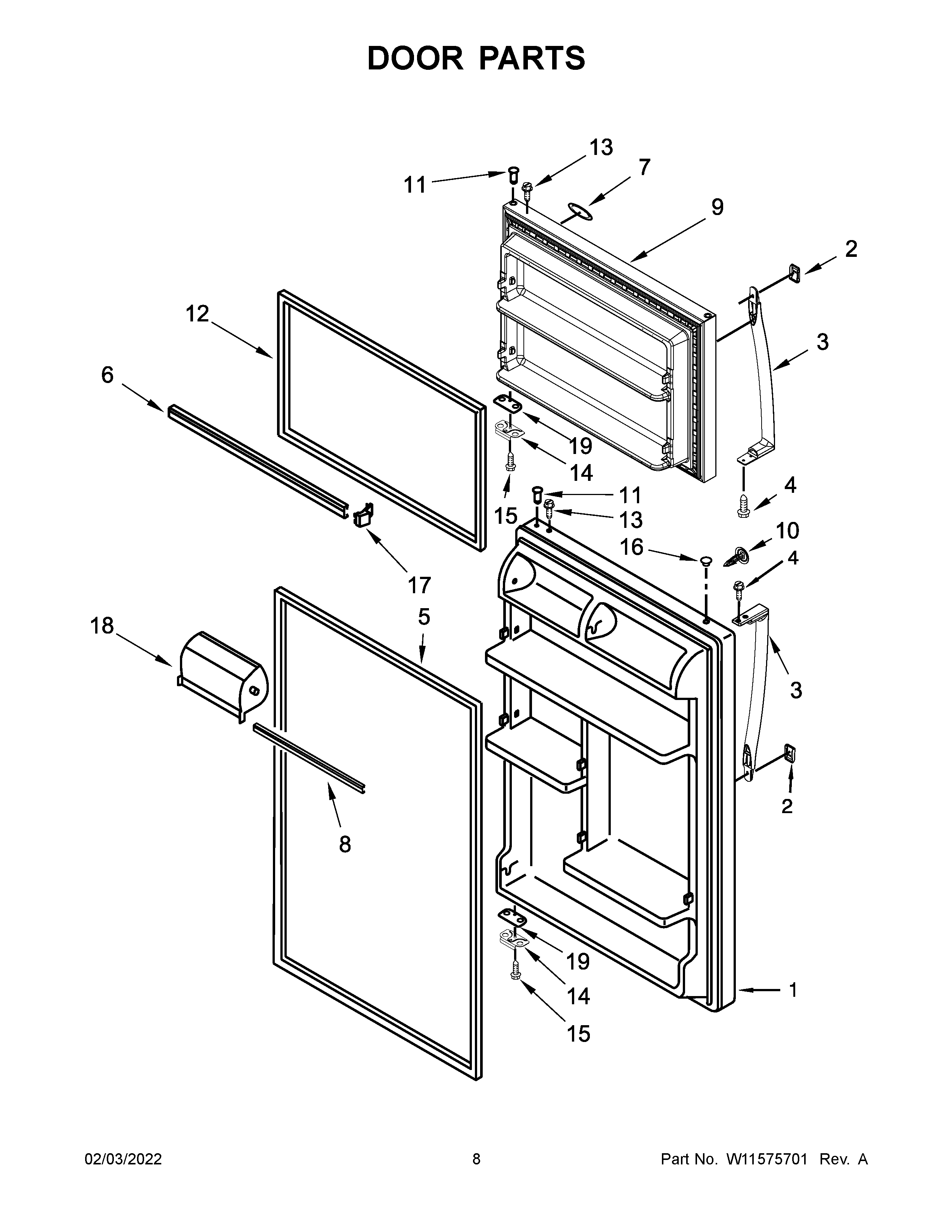

WRT104TFDW03 05 – DOOR PARTS

Products

Position	Product
1B	REFRIGERATOR DOOR (INCLUDES ILLUSTRATION 5) (BISCUIT/BISQUE)
1A	LW10570511 Whirlpool Refrigerator DOR-FIP
1	LW10573334 Whirlpool Refrigerator Door FIP
2B	W10672341 Whirlpool Refrigerator Cover
2A	W10838316 Whirlpool Refrigerator Cover
2	WPW10672338 Whirlpool Handle Trim Cap
3A	WPW10672334 Whirlpool Refrigerator Handle
3B	W10859918 Whirlpool Refrigerator Handle
3	WPW10672333 Whirlpool Refrigerator White Door Handle
4	WP489357 Whirlpool Recessed Screw
5	WP2319265T Whirlpool Refrigerator FIP Gasket
5A	2319265B Whirlpool Refrigerator FIP Gasket
6	WP2266727 Whirlpool Refrigerator Door Trim
7	W11178521 Whirlpool Dishwasher Nameplate
8	W11129820 Whirlpool Refrigerator Door Trim
9	LW10573340 Whirlpool Refrigerator Door FIP
9A	FREEZER DOOR (INCLUDES ILLUSTRATION 12) (BLACK)
9B	FREEZER DOOR (INCLUDES ILLUSTRATION 12) (BISCUIT/BISQUE)
10B	W10830981 Whirlpool Refrigerator Plug Handle
10	W10830984 Whirlpool Handle Plug
10A	W10830983 Whirlpool Refrigerator Handle Plug
11	WP2183003 Whirlpool Thimble
12B	WP2319263T Whirlpool Refrigerator FIP Gasket
12A	WP2319263B Whirlpool Refrigerator Black Door Gasket
12	GASKET-FIP
13	WP8281206 Whirlpool Refrigerator Screw
14	W11745278 Whirlpool Bracket
15	WP488921 Whirlpool Refrigerator Screw
16B	WP2212649 Whirlpool Refrigerator Button Plug
16A	WP2212651 Whirlpool Refrigerator Button Plug
16	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
17	WP2156003 Whirlpool Refrigerator Door Shelf End Cap
18	DOOR-COMP
19	WP2258681W Whirlpool Refrigerator Shim
19A	2258681B Whirlpool Refrigerator Shim
