WRT106TFDB02 05 – DOOR PARTS
Written by
in

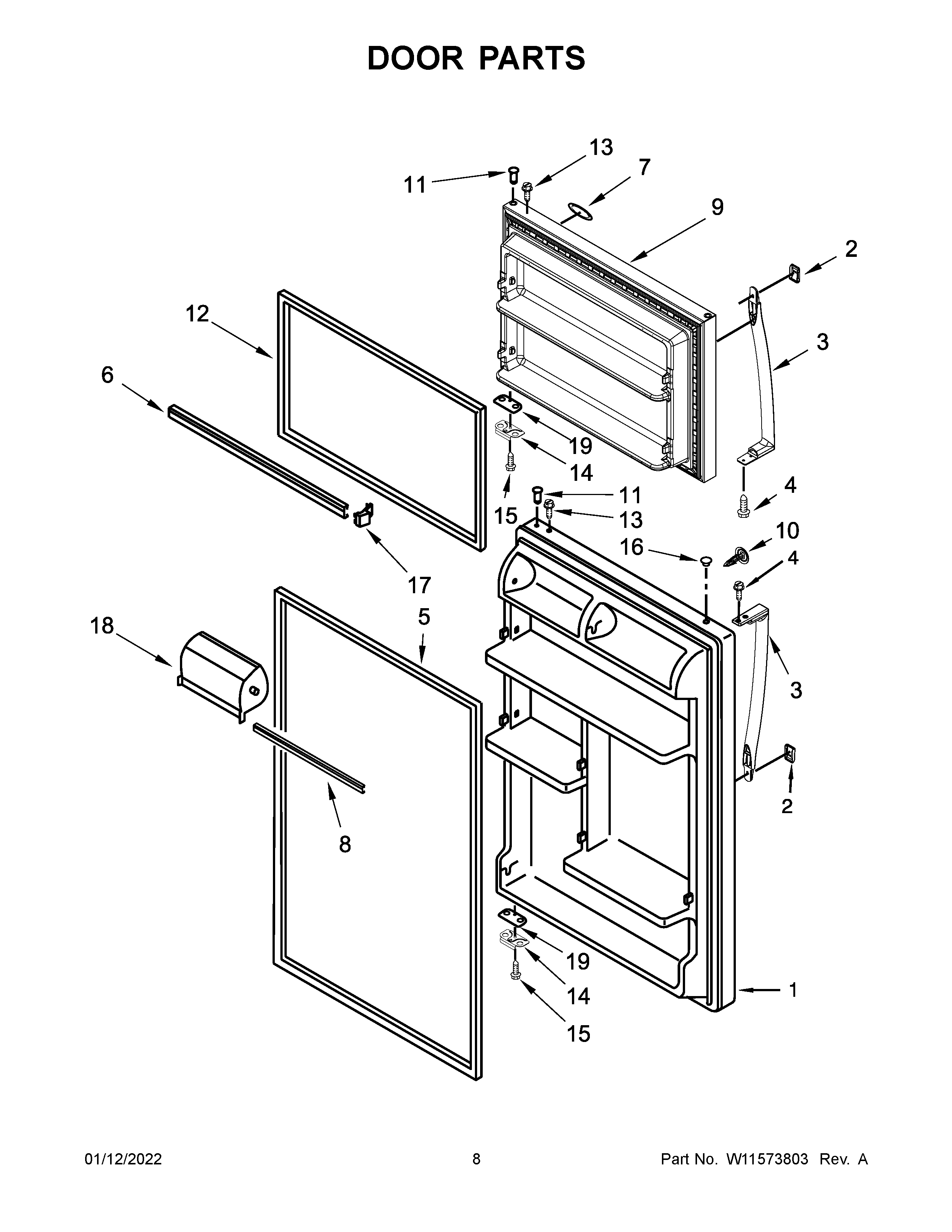

WRT106TFDB02 05 – DOOR PARTS
Products
Position
Product
1B
LW10686137 Whirlpool Refrigerator Door FIP
1A
LW10677208 Whirlpool Refrigerator DOR-FIP
1
LW10677207 Whirlpool Refrigerator FIP Door
2
WPW10672338 Whirlpool Handle Trim Cap
2A
W10838316 Whirlpool Refrigerator Cover
2B
W10672341 Whirlpool Refrigerator Cover
3
WPW10672333 Whirlpool Refrigerator White Door Handle
3A
WPW10672334 Whirlpool Refrigerator Handle
3B
W10859918 Whirlpool Refrigerator Handle
4
WP489357 Whirlpool Recessed Screw
5B
WP2319266T Whirlpool Refrigerator FIP Gasket
5
2319266W Whirlpool Refrigerator FIP Gasket
5A
2319266B Whirlpool Refrigerator Gasket FIP
6
WP2266727 Whirlpool Refrigerator Door Trim
7
W11178521 Whirlpool Dishwasher Nameplate
8
W11129820 Whirlpool Refrigerator Door Trim
9
LW10718980 Whirlpool Refrigerator Door FIP
9A
LW10719014 Whirlpool FIP Door
9B
FREEZER DOOR (INCLUDES ILLUS. 12) (BISCUIT/BISQUE)
10B
W10830981 Whirlpool Refrigerator Plug Handle
10A
W10830983 Whirlpool Refrigerator Handle Plug
10
W10830984 Whirlpool Handle Plug
11
WP2183003 Whirlpool Thimble
12A
WP2319263B Whirlpool Refrigerator Black Door Gasket
12
GASKET-FIP
12B
WP2319263T Whirlpool Refrigerator FIP Gasket
13
WP8281206 Whirlpool Refrigerator Screw
14
W11745278 Whirlpool Bracket
15
WP488921 Whirlpool Refrigerator Screw
16A
WP2212651 Whirlpool Refrigerator Button Plug
16B
WP2212649 Whirlpool Refrigerator Button Plug
16
WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
17
WP2156003 Whirlpool Refrigerator Door Shelf End Cap
18
DOOR-COMP
19
WP2258681W Whirlpool Refrigerator Shim
19A
2258681B Whirlpool Refrigerator Shim
←
