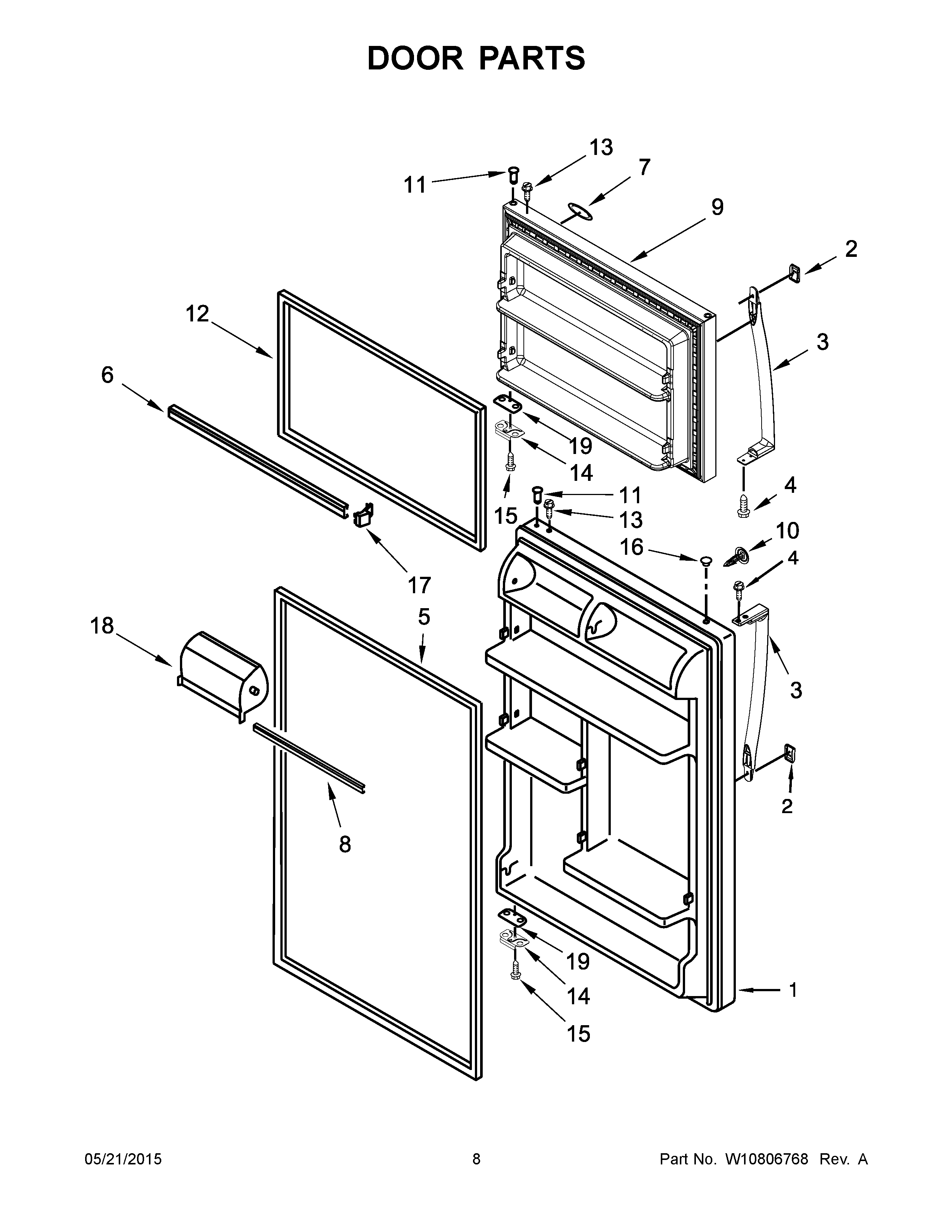

WRT106TFDT01 05 – DOOR PARTS

WRT106TFDT01 05 – DOOR PARTS

Written by

in

WRT106TFDT01 05 – DOOR PARTS

Products

PositionProduct
1BLW10686137 Whirlpool Refrigerator Door FIP
1ALW10677208 Whirlpool Refrigerator DOR-FIP
1LW10677207 Whirlpool Refrigerator FIP Door
2WPW10672338 Whirlpool Handle Trim Cap
2AW10838316 Whirlpool Refrigerator Cover
2BW10672341 Whirlpool Refrigerator Cover
3WPW10672333 Whirlpool Refrigerator White Door Handle
3AWPW10672334 Whirlpool Refrigerator Handle
3BW10859918 Whirlpool Refrigerator Handle
4WP489357 Whirlpool Recessed Screw
5BWP2319266T Whirlpool Refrigerator FIP Gasket
52319266W Whirlpool Refrigerator FIP Gasket
5A2319266B Whirlpool Refrigerator Gasket FIP
6WP2266727 Whirlpool Refrigerator Door Trim
7AW11178521 Whirlpool Dishwasher Nameplate
8W11129820 Whirlpool Refrigerator Door Trim
9LW10718980 Whirlpool Refrigerator Door FIP
9ALW10719014 Whirlpool FIP Door
9BFREEZER DOOR (INCLUDES ILLUS. 12) (BISCUIT/BISQUE)
10BW10830981 Whirlpool Refrigerator Plug Handle
10AW10830983 Whirlpool Refrigerator Handle Plug
10W10830984 Whirlpool Handle Plug
11WP2183003 Whirlpool Thimble
12AWP2319263B Whirlpool Refrigerator Black Door Gasket
12GASKET-FIP
12BWP2319263T Whirlpool Refrigerator FIP Gasket
13WP8281206 Whirlpool Refrigerator Screw
14W11745278 Whirlpool Bracket
15WP488921 Whirlpool Refrigerator Screw
16AWP2212651 Whirlpool Refrigerator Button Plug
16BWP2212649 Whirlpool Refrigerator Button Plug
16WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
17WP2156003 Whirlpool Refrigerator Door Shelf End Cap
18DOOR-COMP
19WP2258681W Whirlpool Refrigerator Shim
19A2258681B Whirlpool Refrigerator Shim
