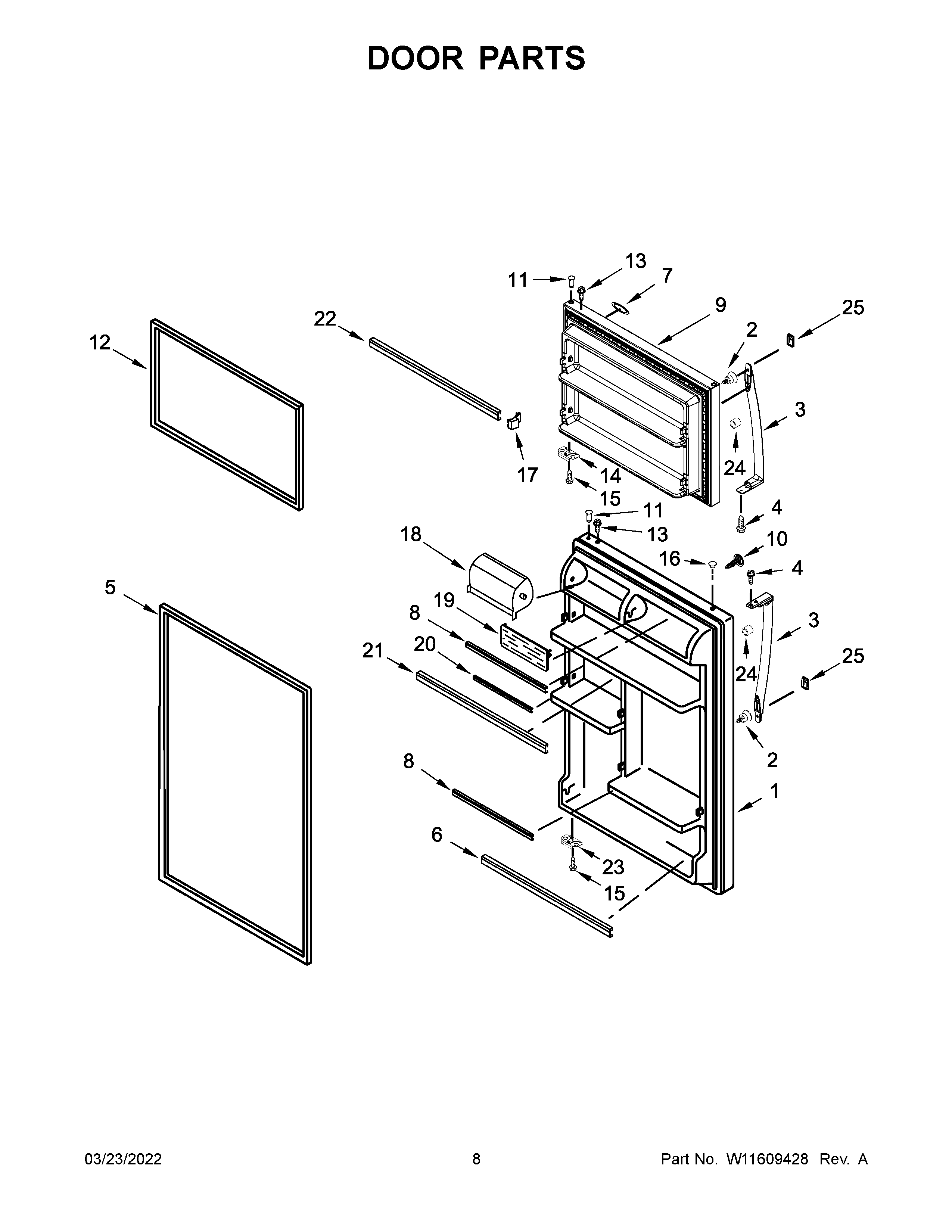

WRT108FFDB03 05 – DOOR PARTS

WRT108FFDB03 05 – DOOR PARTS

Written by

in

WRT108FFDB03 05 – DOOR PARTS

Products

PositionProduct
NIW11415957 Whirlpool Refrigerator Door Kit
NIW11416038 Whirlpool Refrigerator Door Kit
NIW10676240 Whirlpool Refrigerator Door Kit
NICABINET (NOT A SERVICEABLE PART)
1BW11575716 Whirlpool Refrigerator DOR FIP
1ALW10668874 Whirlpool Refrigerator Door FIP
1LW10636410 Whirlpool Refrigerator FIP Door
2WPW10170540 Whirlpool Screw
3AWPW10672334 Whirlpool Refrigerator Handle
3WPW10672333 Whirlpool Refrigerator White Door Handle
3BW10806512 Whirlpool Refrigerator Door Handle Stainless
4WP489357 Whirlpool Recessed Screw
5W10838574 Whirlpool Door Gasket
5AW11240749 Whirlpool Refrigerator Door Gasket
5BGASKET-DOR
6W11097831 Whirlpool Refrigerator Door Trim
7W11178521 Whirlpool Dishwasher Nameplate
8W11129820 Whirlpool Refrigerator Door Trim
9ALW10668875 Whirlpool Refrigerator FIP Door
9LW10636409 Whirlpool Refrigerator Door Frame Insulation Pad
9BLW10638683 Whirlpool Refrigerator Door Assembly
10BW10830982 Whirlpool Handle Plug
10AW10830983 Whirlpool Refrigerator Handle Plug
10W10830984 Whirlpool Handle Plug
11WP2183003 Whirlpool Thimble
12BGASKET DOOR FC GREY
12AW11229610 Whirlpool Refrigerator Door Gasket
12W10861499 Whirlpool Door Gasket
13WP8281206 Whirlpool Refrigerator Screw
14W11745278 Whirlpool Bracket
15WP488921 Whirlpool Refrigerator Screw
16WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
16AWP2212651 Whirlpool Refrigerator Button Plug
16BPLUG, HINGE SLEEVE (GREY)
17WP2156003 Whirlpool Refrigerator Door Shelf End Cap
18WP2218113 Whirlpool Dairy Door
19WP2188234 Whirlpool Shelf
20W11106290 Whirlpool Refrigerator Door Trim
21W11170805 Whirlpool Refrigerator Door Trim
22W11126055 Whirlpool Refrigerator Door Trim
23W11402852 Whirlpool Refrigerator Bracket
24WPW10511911 Whirlpool Refrigerator Bushing
25BENDCAP-HDL
25AW10838316 Whirlpool Refrigerator Cover
25WPW10672338 Whirlpool Handle Trim Cap
