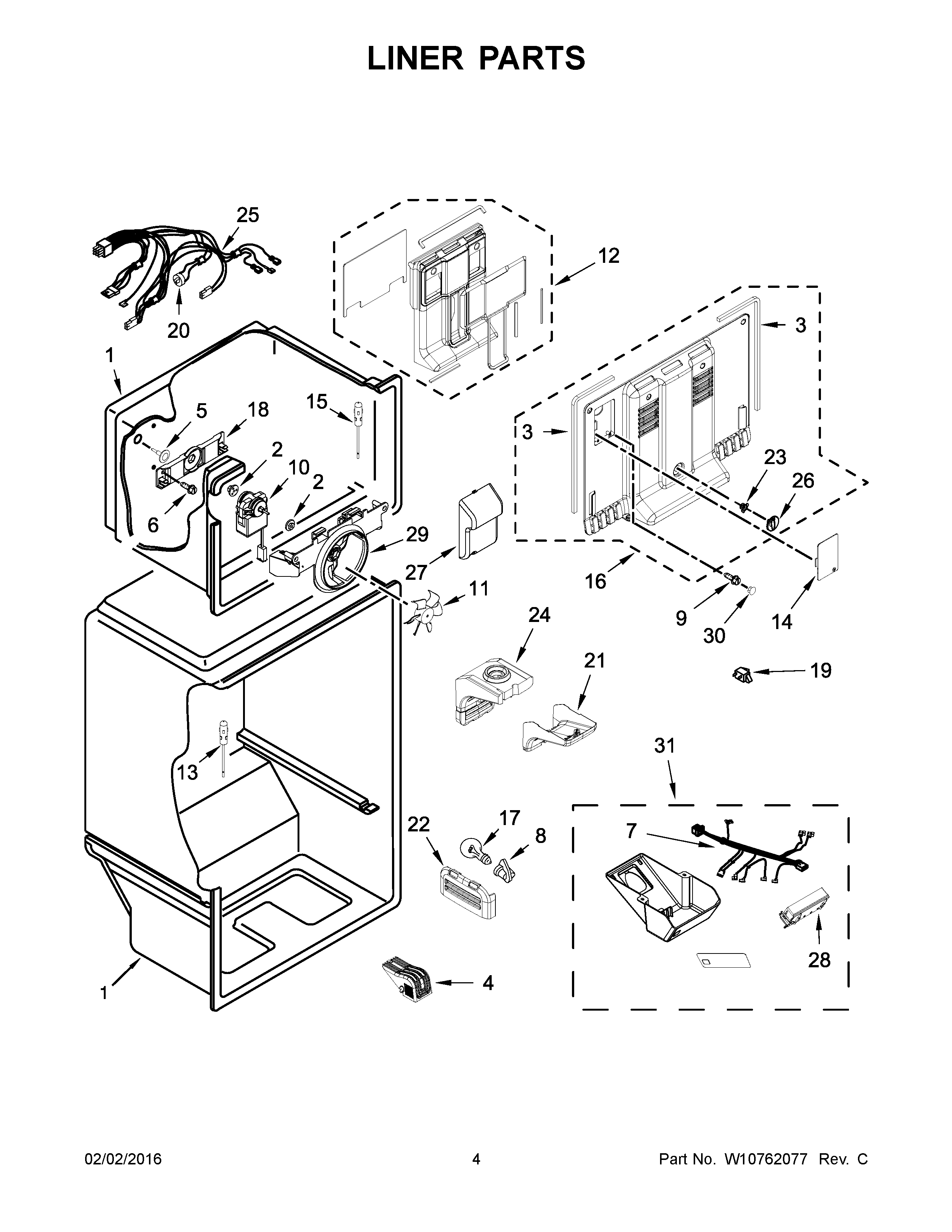

WRT108FZDB00 03 – LINER PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2WP2264462 Whirlpool Refrigerator Grommet
3W10849448 Whirlpool Refrigerator Gasket
4W10920316 Whirlpool Refrigerator Light Lens
5WP941839 Whirlpool Refrigerator Button Plug
6WP488163 Whirlpool Refrigerator Screw
7W11436564 Whirlpool Refrigerator Wire Harness
84387478 Whirlpool Refrigerator Light Socket
9W11544659 Whirlpool Refrigerator Screw
10WP2315539 Whirlpool Refrigerator Evaporator Fan Motor
11WP2163777 Whirlpool Refrigerator Fan Blade
12W10919804 Whirlpool Refrigerator Air Duct
13THERMISTOR
14W10677275 Whirlpool Refrigerator Cover
15THERMISTOR-REFRIGERATOR
16W11024683 Whirlpool Refrigerator Evaporator Cover
17W11679940 Whirlpool Refrigerator Light Bulb Assembly
182254454 Whirlpool Refrigerator Bracket
19W11384469 Whirlpool Door Switch
20WPW10392132 Whirlpool Refrigerator Bi-Metal Defrost Thermostat
21W11256504 Whirlpool Refrigerator Cover
22W10638176 Whirlpool Refrigerator Grille
23W11244470 Whirlpool Refrigerator Control
24W10861170 Whirlpool Refrigerator Diffuser
25W11502499 Whirlpool Refrigerator Wire Harness
26W11026417 Whirlpool Refrigerator Air Damper
27WPW10339203 Whirlpool Refrigerator Tube Cover
28WPW10643378 Whirlpool Control Board + Core
29W10850162 Whirlpool Refrigerator Orifice
30W10854527 Whirlpool Refrigerator Cover
31W11353813 Whirlpool Refrigerator Control Box
