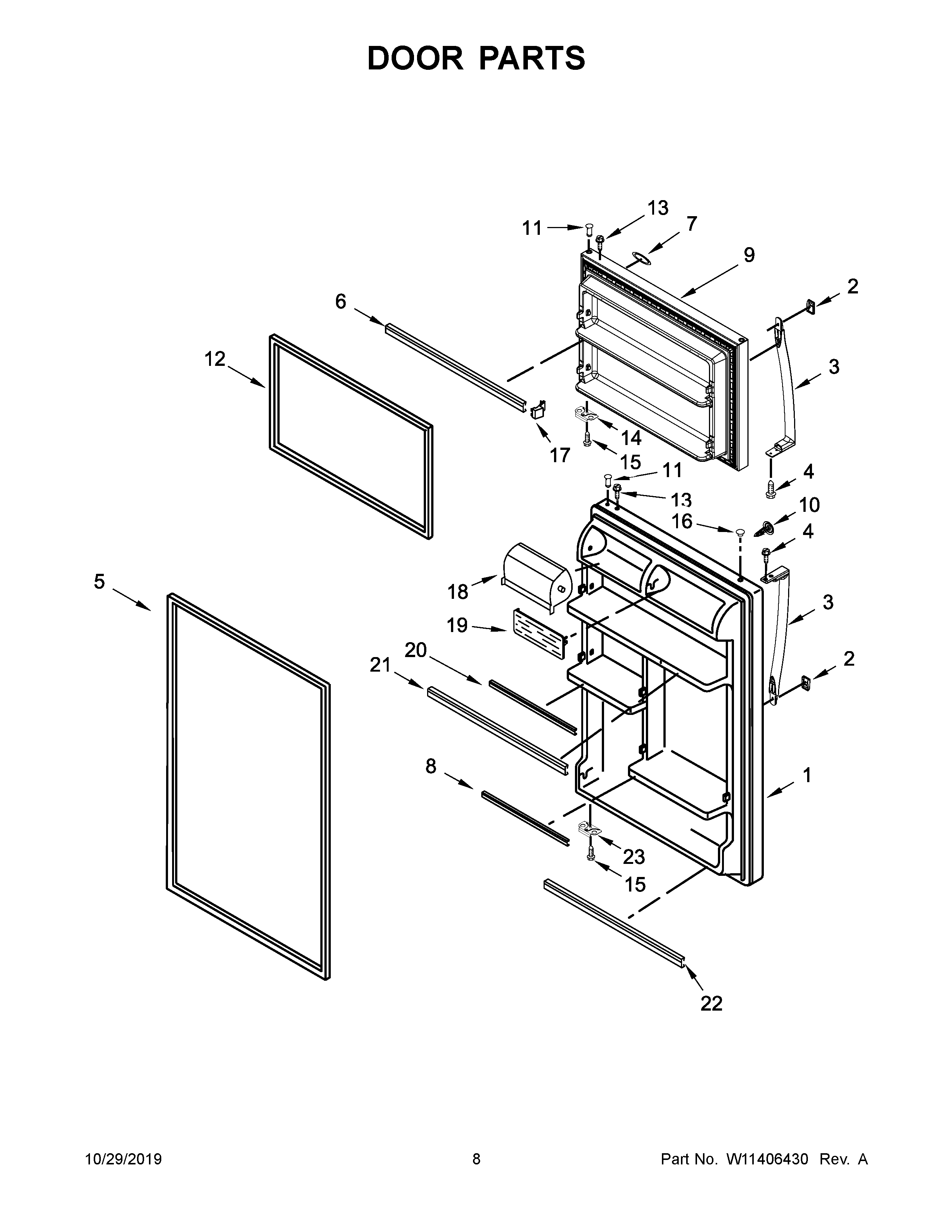

WRT108FZDB05 05 – DOOR PARTS

WRT108FZDB05 05 – DOOR PARTS

Written by

in

WRT108FZDB05 05 – DOOR PARTS

Products

Position	Product
1	LW10636410 Whirlpool Refrigerator FIP Door
1A	LW10668874 Whirlpool Refrigerator Door FIP
1C	LW10638684 Whirlpool Refrigerator DOR-FIP
1B	LW10685309 Whirlpool Refrigerator Door FIP
2C	ENDCAP-HDL
2A	W10838316 Whirlpool Refrigerator Cover
2	WPW10672338 Whirlpool Handle Trim Cap
2B	W10672341 Whirlpool Refrigerator Cover
3B	W10859918 Whirlpool Refrigerator Handle
3	WPW10672333 Whirlpool Refrigerator White Door Handle
3A	WPW10672334 Whirlpool Refrigerator Handle
3C	W10806512 Whirlpool Refrigerator Door Handle Stainless
4	WP489357 Whirlpool Recessed Screw
5	W10838574 Whirlpool Door Gasket
5C	GASKET-DOR
5A	W11240749 Whirlpool Refrigerator Door Gasket
5B	W11030687 Whirlpool Refrigerator Door Gasket
6	W11097831 Whirlpool Refrigerator Door Trim
7	W11178521 Whirlpool Dishwasher Nameplate
8	W11129820 Whirlpool Refrigerator Door Trim
9C	LW10638683 Whirlpool Refrigerator Door Assembly
9B	LW10685311 Whirlpool Refrigerator Door Assembly
9A	LW10668875 Whirlpool Refrigerator FIP Door
9	LW10636409 Whirlpool Refrigerator Door Frame Insulation Pad
10	W10830984 Whirlpool Handle Plug
10A	W10830983 Whirlpool Refrigerator Handle Plug
10B	W10830981 Whirlpool Refrigerator Plug Handle
10C	W10830982 Whirlpool Handle Plug
11	WP2183003 Whirlpool Thimble
12A	W11229610 Whirlpool Refrigerator Door Gasket
12B	GASKET, DOOR (BEIGE)
12	W10861499 Whirlpool Door Gasket
12C	GASKET DOOR FC GREY
13	WP8281206 Whirlpool Refrigerator Screw
14	W11745278 Whirlpool Bracket
15	WP488921 Whirlpool Refrigerator Screw
16	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
16C	PLUG, HINGE SLEEVE (GREY)
16B	WP2212649 Whirlpool Refrigerator Button Plug
16A	WP2212651 Whirlpool Refrigerator Button Plug
17	WP2156003 Whirlpool Refrigerator Door Shelf End Cap
18	WP2218113 Whirlpool Dairy Door
19	WP2188234 Whirlpool Shelf
20	W11106290 Whirlpool Refrigerator Door Trim
21	W11170805 Whirlpool Refrigerator Door Trim
22	W11126055 Whirlpool Refrigerator Door Trim
23	W11402852 Whirlpool Refrigerator Bracket
