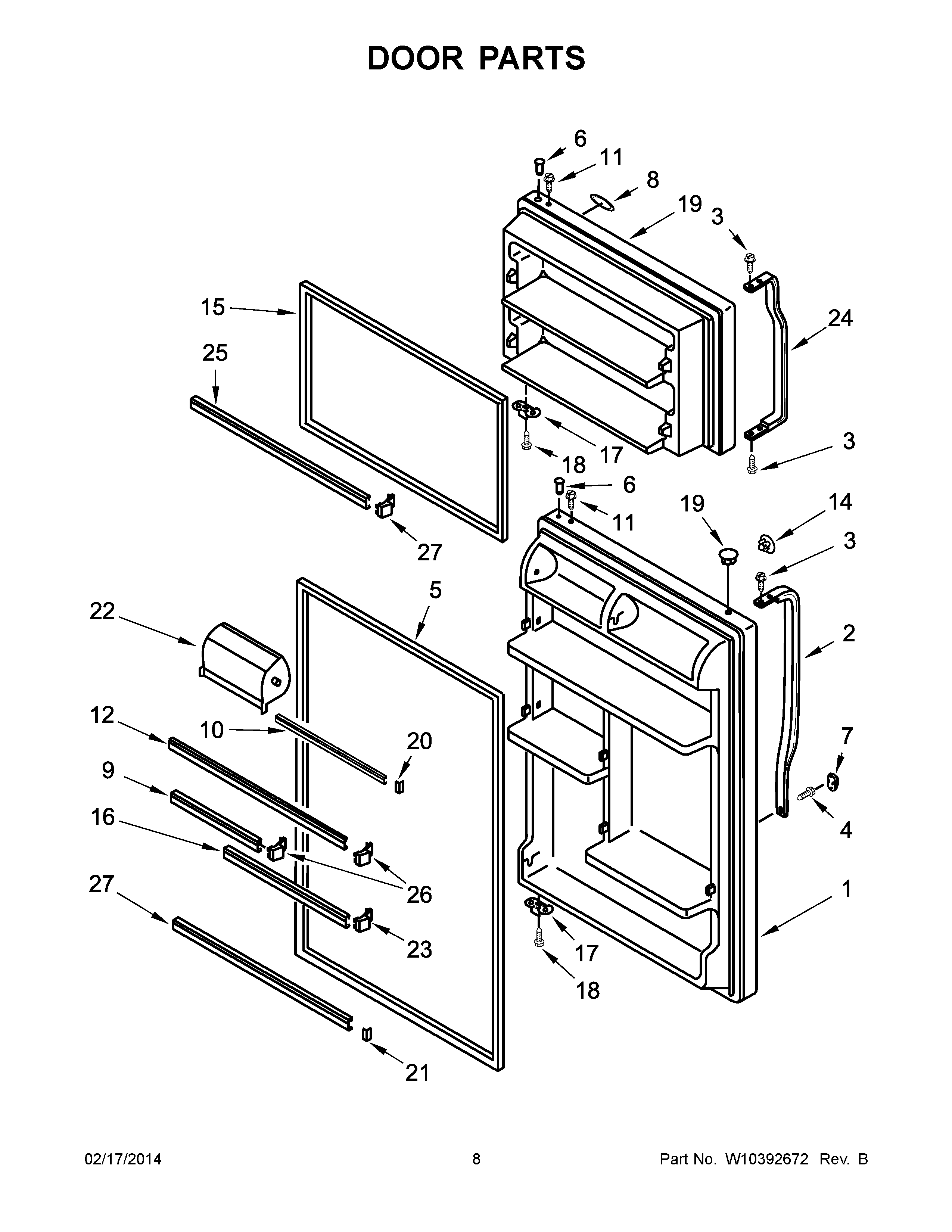

WRT108TFYB00 05 – DOOR PARTS

Products

Position	Product
1	Refrigerator Door (Includes No.9 & No.11) (Black)
1	Refrigerator Door (Includes No.9 & No.22) (White)
2	HANDLE
2	WP2326169B Whirlpool Refrigerator Handle
3	WP489357 Whirlpool Recessed Screw
4	WP8281146 Whirlpool Screw
5	2159057 Whirlpool Refrigerator Fresh Food Door Gasket
5	2177305 Whirlpool Refrigerator Door FIP Gasket
6	WP2314293 Whirlpool Refrigerator Thimble
7	WP2202819B Whirlpool Refrigerator Cover
7	WP2202819W Whirlpool Refrigerator Cover
8	W11178521 Whirlpool Dishwasher Nameplate
9	WPW10463613 Whirlpool Refrigerator Door Trim
10	TRIM-DOOR
11	WP8281206 Whirlpool Refrigerator Screw
12	WPW10464028 Whirlpool Refrigerator Door Trim
13	Freezer Door (Includes Illus. 4, 17 & 18) (White)
13	Freezer Door (Includes Illus. 4,17 & 18) (Black)
14	WP2189009 Whirlpool Refrigerator Handle Plug
14	WP2189000 Whirlpool Refrigerator Handle Plug
15	2177304 Whirlpool Refrigerator FIP Gasket
15	2159327 Whirlpool Refrigerator Door Gasket
16	WPW10463614 Whirlpool Refrigerator Shelf Trim
17	W11745278 Whirlpool Bracket
18	WP488921 Whirlpool Refrigerator Screw
19	WP2212651 Whirlpool Refrigerator Button Plug
19	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
20	ENDCAP-TRM
21	WP2156006 Whirlpool Refrigerator Shelf Trim Endcap
22	WP2218113 Whirlpool Dairy Door
23	WP2195915 Whirlpool Door Shelf Support
24	WP2202806B Whirlpool Refrigerator Handle
24	WP2202806W Whirlpool Refrigerator Handle
25	WPW10463615 Whirlpool Refrigerator Door Trim
26	WP2156003 Whirlpool Refrigerator Door Shelf End Cap
27	WPW10421484 Whirlpool Refrigerator Door Trim
