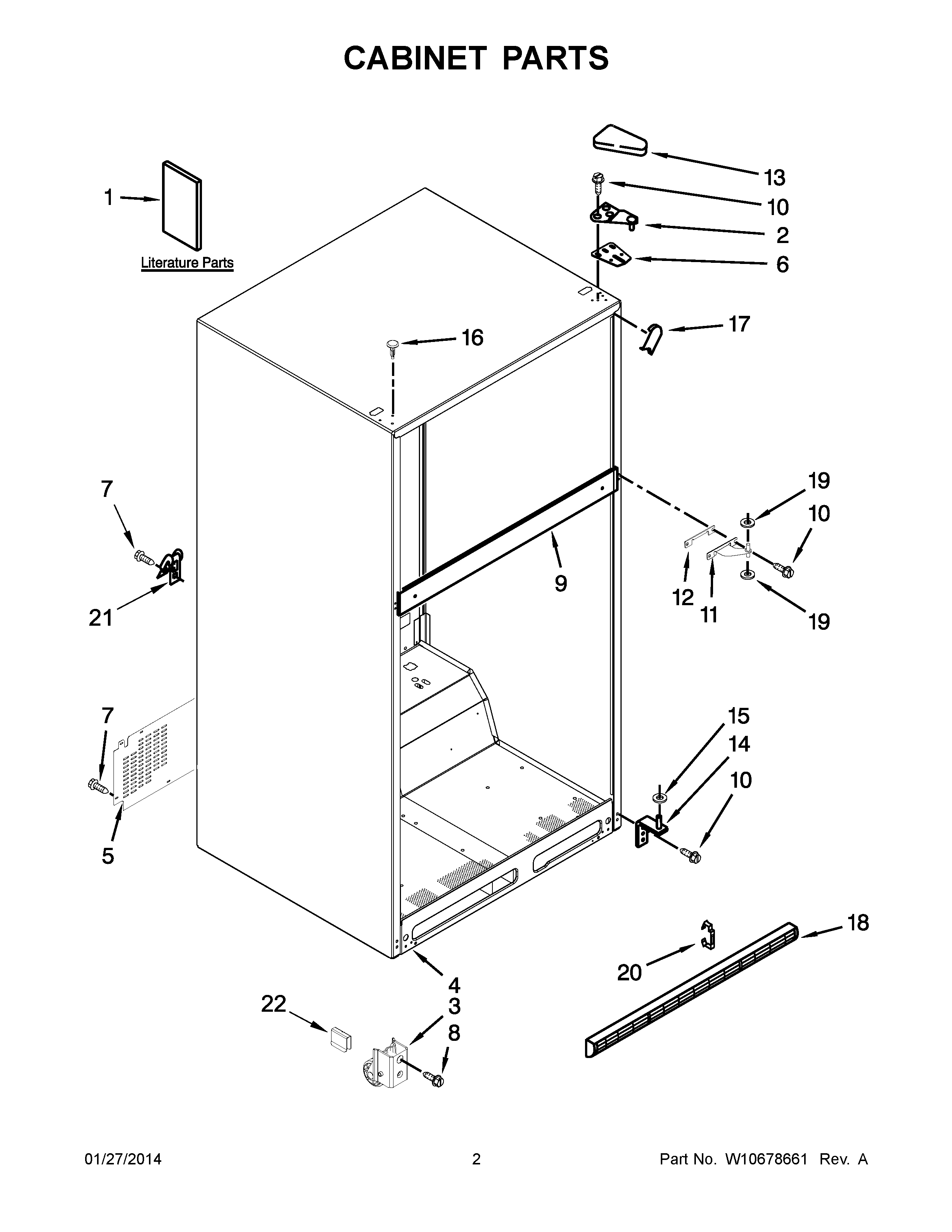

WRT108TFYB01 02 – CABINET PARTS

WRT108TFYB01 02 – CABINET PARTS

Written by

in

WRT108TFYB01 02 – CABINET PARTS

Products

PositionProduct
1SERVICE & WIRING SHEET
1ENERGY LABEL
1USE AND CARE GUIDE
2WP2261963 Whirlpool Refrigerator Door Hinge
3W10849386 Whirlpool Refrigerator CAB Roller
5W10636716 Whirlpool Refrigerator Cover Unit
6W11169703 Whirlpool Refrigerator Shim
7WP488729 Whirlpool Refrigerator Door Screw
8W10850698 Whirlpool Refrigerator Screw
9CABINET (NOT A SERVICEABLE PART)
10WP489497 Whirlpool Screw
11WP2254618 Whirlpool Center Door Hinge
12WP2183852 Whirlpool Refrigerator Shim
13WP2213360 Whirlpool Refrigerator Cover
13WP2213363 Whirlpool Refrigerator Cover
14WP2254473 Whirlpool Refrigerator Door Hinge
15WP487576 Whirlpool Washer
16WPW10520305 Whirlpool Refrigerator Button Plug
16WPW10520304 Whirlpool Refrigerator Button Plug
17W11252732 Whirlpool Refrigerator Filler
17WPW10283959 Whirlpool Refrigerator Filler
18Grille (Includes Illus. 4 & 24) (Black)
18WP2254386 Whirlpool Refrigerator Grille
19WP489467 Whirlpool Hinge Shim
202254385 Whirlpool Refrigerator Clip
20CLIP, GRILLE
21549193 Whirlpool Refrigerator Power Clamp
22WP2174706 Whirlpool Refrigerator Pin Hitch
