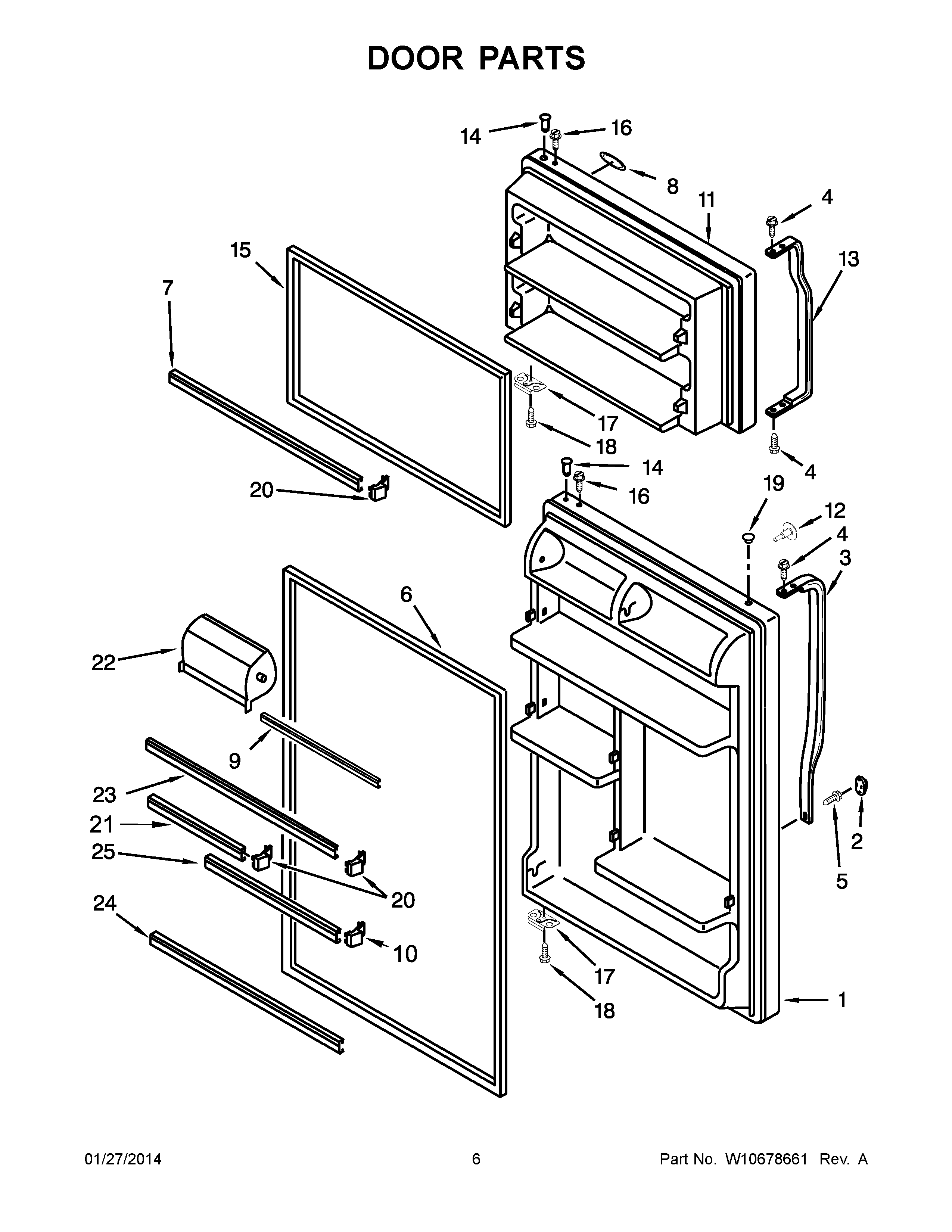

WRT108TFYB01 04 – DOOR PARTS

Products

Position	Product
1	Refrigerator Door (Includes No.9 & No.22) (White)
1	Refrigerator Door (Includes No.9 & No.11) (Black)
2	WP2202819B Whirlpool Refrigerator Cover
2	WP2202819W Whirlpool Refrigerator Cover
3	WP2326169B Whirlpool Refrigerator Handle
3	HANDLE
4	WP489357 Whirlpool Recessed Screw
5	WP8281146 Whirlpool Screw
6	2159057 Whirlpool Refrigerator Fresh Food Door Gasket
6	2177305 Whirlpool Refrigerator Door FIP Gasket
7	WPW10463615 Whirlpool Refrigerator Door Trim
8	W11178521 Whirlpool Dishwasher Nameplate
9	TRIM-DOOR
10	WP2195915 Whirlpool Door Shelf Support
11	Freezer Door (Includes Illus. 4,17 & 18) (Black)
11	Freezer Door (Includes Illus. 4, 17 & 18) (White)
12	WP2189000 Whirlpool Refrigerator Handle Plug
12	WP2189009 Whirlpool Refrigerator Handle Plug
13	WP2202806B Whirlpool Refrigerator Handle
13	WP2202806W Whirlpool Refrigerator Handle
14	WP2314293 Whirlpool Refrigerator Thimble
15	2177304 Whirlpool Refrigerator FIP Gasket
15	2159327 Whirlpool Refrigerator Door Gasket
16	WP8281206 Whirlpool Refrigerator Screw
17	W11745278 Whirlpool Bracket
18	WP488921 Whirlpool Refrigerator Screw
19	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
19	WP2212651 Whirlpool Refrigerator Button Plug
20	WP2156003 Whirlpool Refrigerator Door Shelf End Cap
21	WPW10463613 Whirlpool Refrigerator Door Trim
22	WP2218113 Whirlpool Dairy Door
23	WPW10464028 Whirlpool Refrigerator Door Trim
24	WPW10421484 Whirlpool Refrigerator Door Trim
25	WPW10463614 Whirlpool Refrigerator Shelf Trim
