WRT108TFYW00 02 – CABINET PARTS

WRT108TFYW00 02 – CABINET PARTS

Written by

in

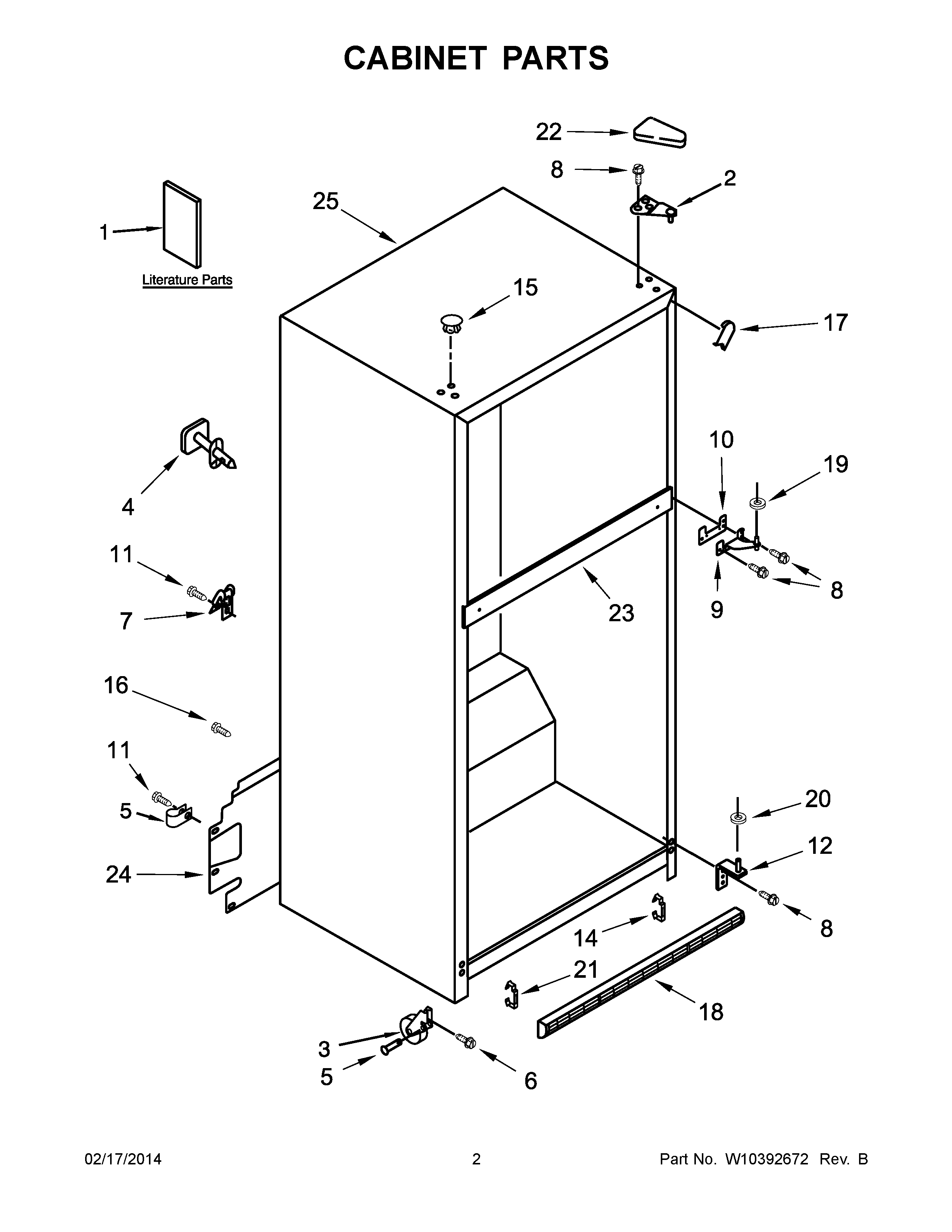

WRT108TFYW00 02 – CABINET PARTS

Products

PositionProduct
1ENERGY LABEL
1DO-IT-YOURSELF MANUAL, REF./ FZR.
1USE AND CARE GUIDE
1SERVICE AND WIRING SHEET
2WP2261963 Whirlpool Refrigerator Door Hinge
3WP2166108 Whirlpool Refrigerator Cabinet Roller
5W11594405 Whirlpool Axle
5WP488366 Whirlpool Refrigerator Clamp
6WP3400504 Whirlpool Refrigerator Screw
7549193 Whirlpool Refrigerator Power Clamp
8WP489497 Whirlpool Screw
9WP2254618 Whirlpool Center Door Hinge
10WP2183852 Whirlpool Refrigerator Shim
11WP489464 Whirlpool Refrigerator Screw
12WP2254473 Whirlpool Refrigerator Door Hinge
142254385 Whirlpool Refrigerator Clip
15WP2183998 Whirlpool Refrigerator Button Plug
15WP2151652 Whirlpool Refrigerator Button Plug
16WP489427 Whirlpool Refrigerator Screw
17WPW10283959 Whirlpool Refrigerator Filler
17W11252732 Whirlpool Refrigerator Filler
18WP2254386 Whirlpool Refrigerator Grille
18Grille (Includes Illus. 4 & 24) (Black)
19WP489467 Whirlpool Hinge Shim
20WP487576 Whirlpool Washer
21CLIP, GRILLE
22WP2213360 Whirlpool Refrigerator Cover
22WP2213363 Whirlpool Refrigerator Cover
24W10636716 Whirlpool Refrigerator Cover Unit
25CABINET (NOT A SERVICEABLE PART)
