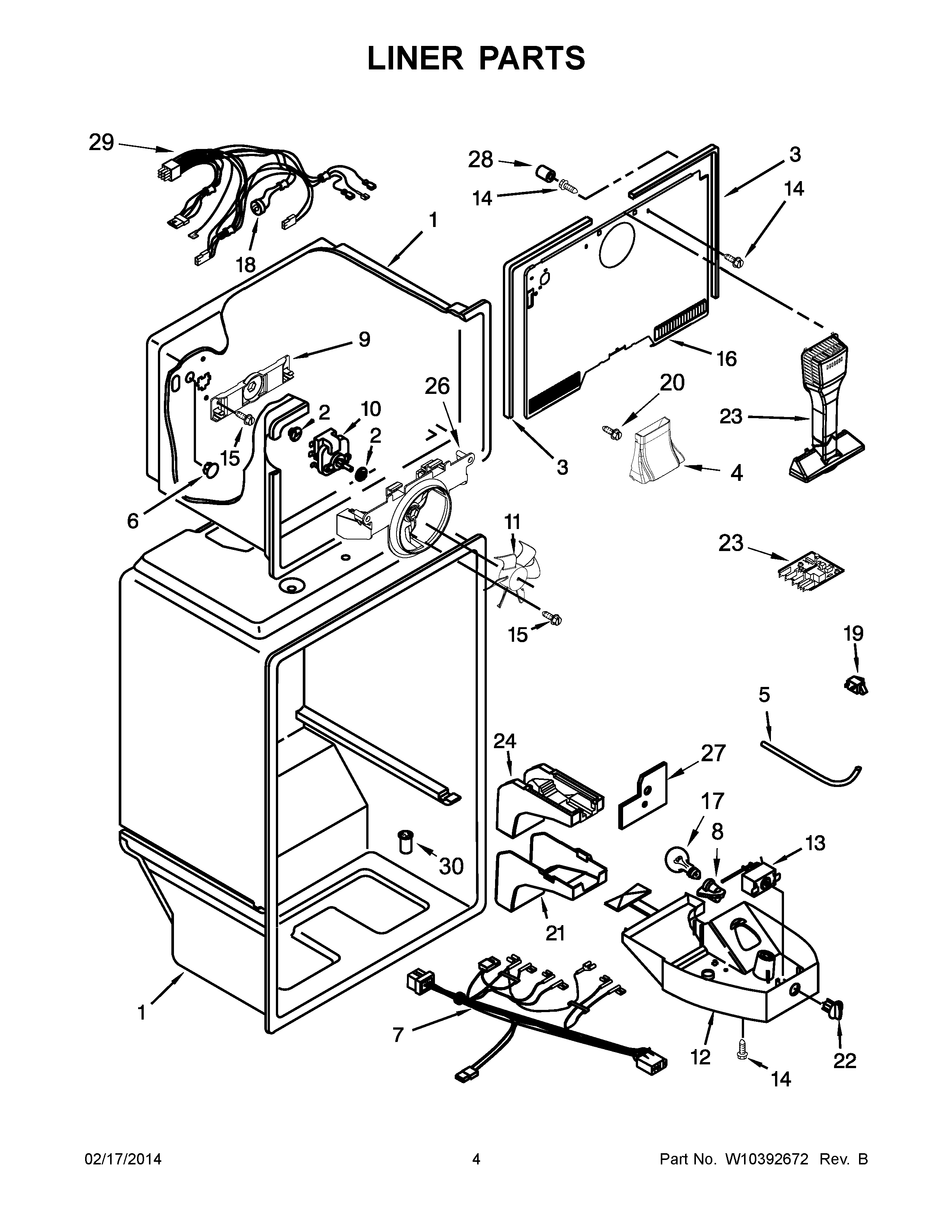

WRT108TFYW00 03 – LINER PARTS

Products

Position	Product
1	CABINET (NOT A SERVICEABLE PART)
2	WP2264462 Whirlpool Refrigerator Grommet
3	W10849448 Whirlpool Refrigerator Gasket
4	ASSEMBLY, TOWER CONNECTION
5	WP2196003 Whirlpool Refrigerator Bar Riser
6	WP941839 Whirlpool Refrigerator Button Plug
7	W10318068 Whirlpool Wire Harness
8	4387478 Whirlpool Refrigerator Light Socket
9	2254454 Whirlpool Refrigerator Bracket
10	WPW10189703 Whirlpool Refrigerator Evaporator Fan Motor
11	WP2163777 Whirlpool Refrigerator Fan Blade
12	W10316941 Whirlpool Refrigerator Control Box
13	WPW10584888 Whirlpool Refrigerator Thermostat
14	WP489478 Whirlpool Refrigerator Screw
15	WP488163 Whirlpool Refrigerator Screw
16	COVER, EVAPORATOR
17	W10887190 Whirlpool Refrigerator Light Bulb
18	WPW10392132 Whirlpool Refrigerator Bi-Metal Defrost Thermostat
19	W11384469 Whirlpool Door Switch
20	WPW10142283 Whirlpool Refrigerator Screw
21	WPW10305175 Whirlpool Refrigerator Cover
22	KNOB
23	TOWER, AIR
24	ASSEMBLY, AIR DIFFUSER
25	WPW10352689-includeCORE Whirlpool WPW10352689 Refrigerator Electronic Control Board + Core
26	W10850162 Whirlpool Refrigerator Orifice
27	W10300161 Whirlpool Refrigerator Shield
28	WP487996 Whirlpool Refrigerator Cap Tube
29	W10339629 Whirlpool Refrigerator Wire Harness
30	WP2210509 Whirlpool Refrigerator Tub Valve
