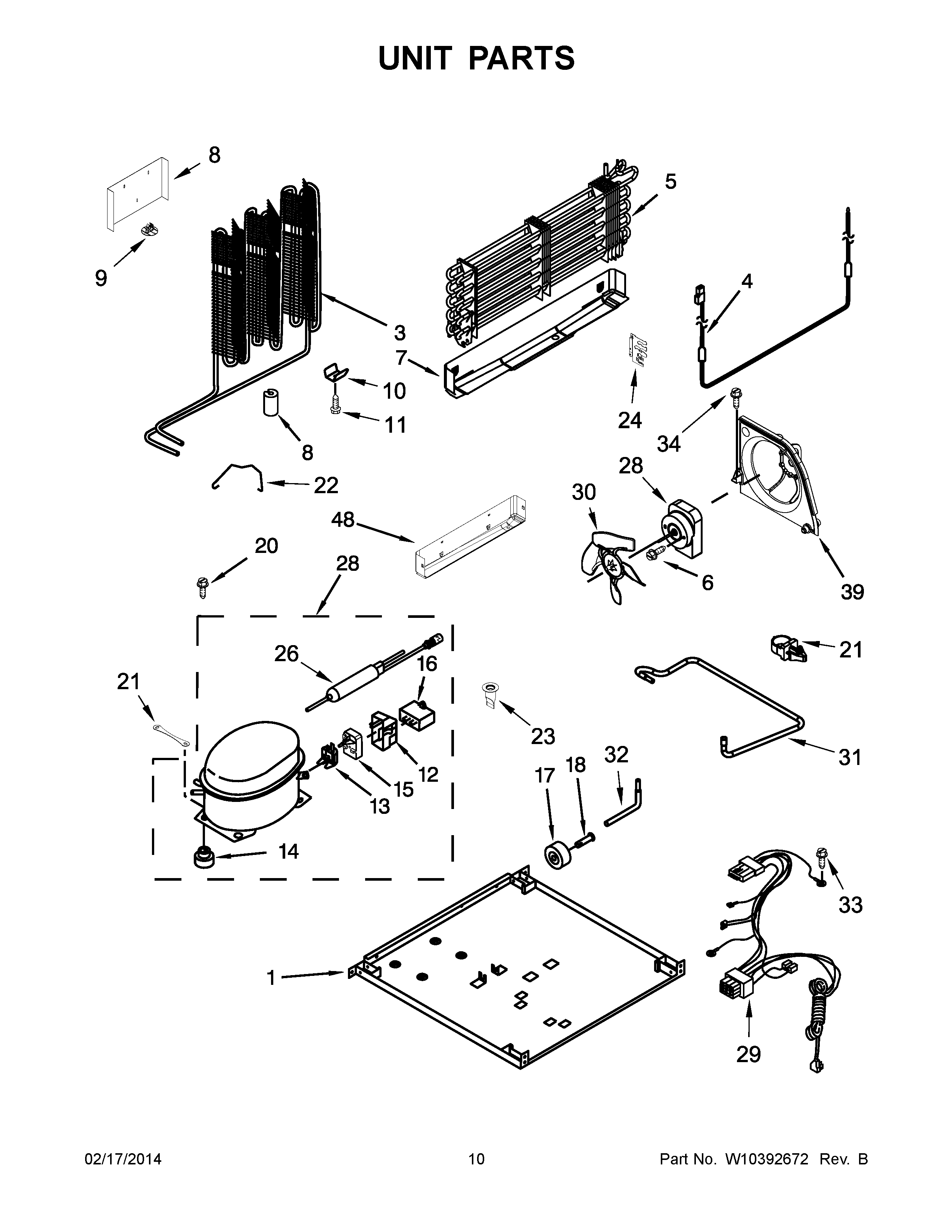

WRT108TFYW00 06 – UNIT PARTS

WRT108TFYW00 06 – UNIT PARTS

Written by

in

WRT108TFYW00 06 – UNIT PARTS

Products

PositionProduct
NIVALVE, ACCESS (1/2“)
NICABINET (NOT A SERVICEABLE PART)
NIWP978025 Whirlpool Refrigerator Valve
NI978030 Whirlpool Refrigerator Valve
NI978027 Whirlpool Refrigerator Primary Valve
NI978026 Whirlpool Refrigerator Primary Valve
NI876764 Whirlpool Refrigerator Primary Valve
NIVALVE, ACCESS (5/8“)
1W10300116 Whirlpool Refrigerator Base Plate
3W10376576 Whirlpool Refrigerator Condenser
4WPW10316428 Whirlpool Refrigerator Heater
5WPW10314205 Whirlpool Refrigerator Evaporator
6W11501418 Whirlpool Refrigerator Screw
7W10890667 Whirlpool Refrigerator Drip Pan
8W10852725 Whirlpool Refrigerator Grommet
9W10349514 Whirlpool Refrigerator Air Baffle
10W10683556 Whirlpool Refrigerator Clip
11W11544659 Whirlpool Refrigerator Screw
12WP2162358 Whirlpool Refrigerator Terminal Cover
13WP2302290 Whirlpool Refrigerator Overload
13WP4387938 Whirlpool Refrigerator Overload
14WPW10169124 Whirlpool Refrigerator Grommet
15W10892065 Whirlpool Refrigerator Compressor Start Relay Device
16WPW10662129 Whirlpool Refrigerator Run Capacitor
17WPW10475495 Whirlpool Roller Assembly
18W11594405 Whirlpool Axle
192219077 Whirlpool Refrigerator Clip
20876811 Whirlpool Grommet
21W10236396 Whirlpool Refrigerator Strap
22W10249638 Whirlpool Retainer Clip
23W11190084 Whirlpool Refrigerator Drain Tube
24W10314197 Whirlpool Refrigerator Bracket
25W10233960 Whirlpool Refrigerator Compressor
26W10843121 Whirlpool Refrigerator Tube
26WPW10143759 Whirlpool Dryer Filter
27WP2315541 Whirlpool Refrigerator Air Baffle
28WP2188874 Whirlpool Refrigerator Condenser Motor
29W10315318 Whirlpool Refrigerator Wire Harness
30WPW10139483 Whirlpool Refrigerator Condenser Fan Blade, 40%
31W10376575 Whirlpool Refrigerator Tube
32W11676464 Whirlpool Tube
33WP489128 Whirlpool Refrigerator Screw
343400518 Whirlpool Oven Foot Mount Screw
35WPW10314195 Whirlpool Refrigerator Shield
