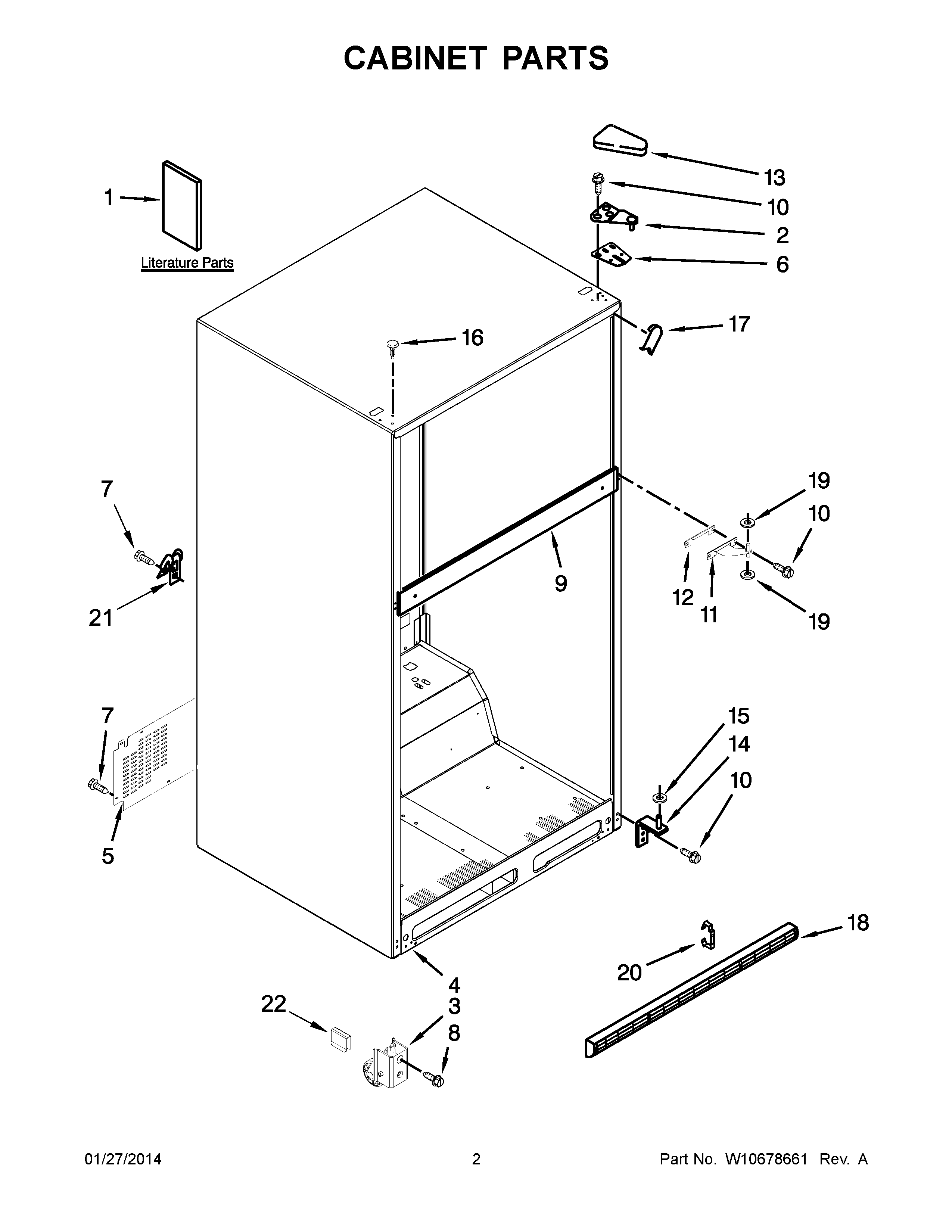

WRT108TFYW01 02 – CABINET PARTS

Products

Position	Product
1	SERVICE & WIRING SHEET
1	ENERGY LABEL
1	USE AND CARE GUIDE
2	WP2261963 Whirlpool Refrigerator Door Hinge
3	W10849386 Whirlpool Refrigerator CAB Roller
5	W10636716 Whirlpool Refrigerator Cover Unit
6	W11169703 Whirlpool Refrigerator Shim
7	WP488729 Whirlpool Refrigerator Door Screw
8	W10850698 Whirlpool Refrigerator Screw
9	CABINET (NOT A SERVICEABLE PART)
10	WP489497 Whirlpool Screw
11	WP2254618 Whirlpool Center Door Hinge
12	WP2183852 Whirlpool Refrigerator Shim
13	WP2213360 Whirlpool Refrigerator Cover
13	WP2213363 Whirlpool Refrigerator Cover
14	WP2254473 Whirlpool Refrigerator Door Hinge
15	WP487576 Whirlpool Washer
16	WPW10520305 Whirlpool Refrigerator Button Plug
16	WPW10520304 Whirlpool Refrigerator Button Plug
17	W11252732 Whirlpool Refrigerator Filler
17	WPW10283959 Whirlpool Refrigerator Filler
18	Grille (Includes Illus. 4 & 24) (Black)
18	WP2254386 Whirlpool Refrigerator Grille
19	WP489467 Whirlpool Hinge Shim
20	2254385 Whirlpool Refrigerator Clip
20	CLIP, GRILLE
21	549193 Whirlpool Refrigerator Power Clamp
22	WP2174706 Whirlpool Refrigerator Pin Hitch
