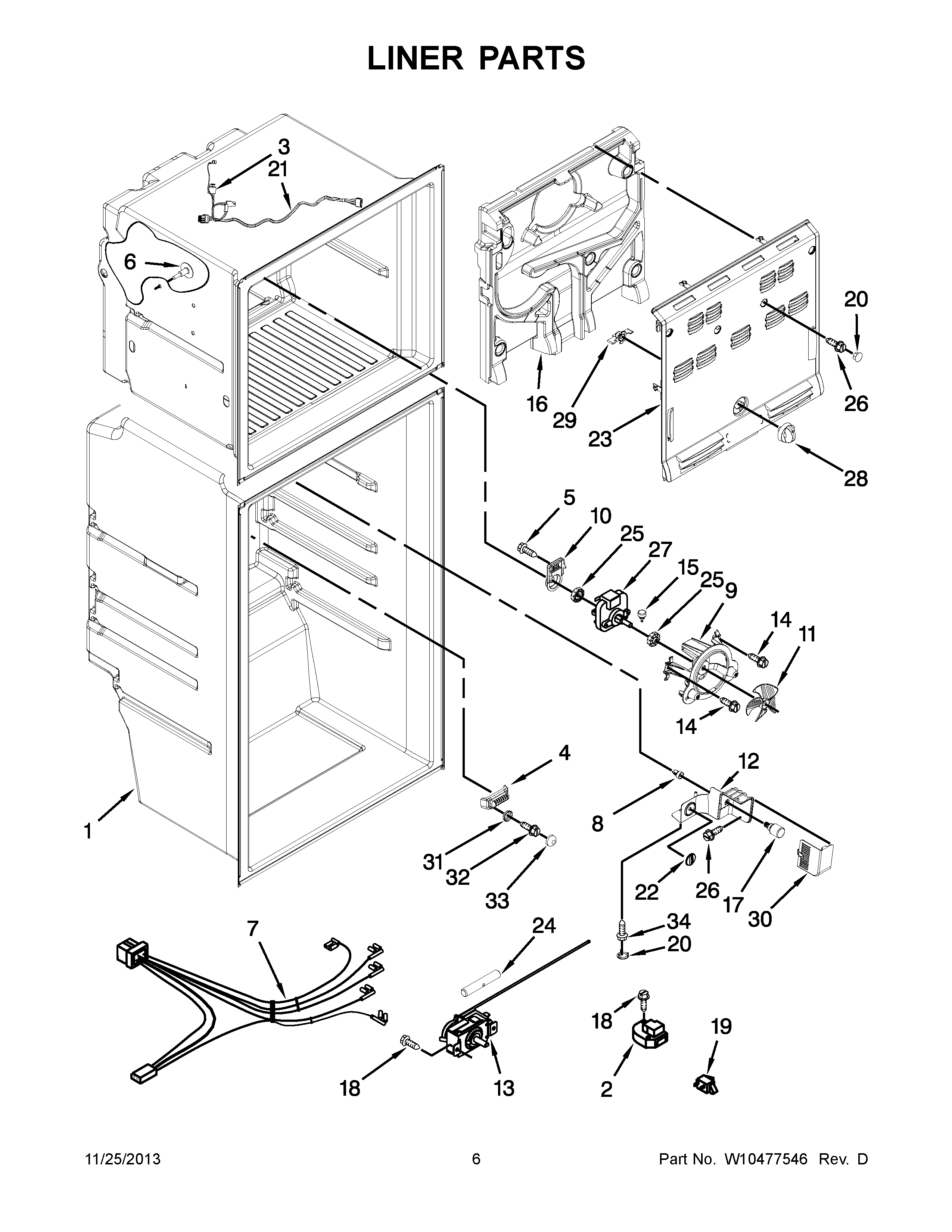

WRT111SFAB00 04 – LINER PARTS

WRT111SFAB00 04 – LINER PARTS

Written by

in

WRT111SFAB00 04 – LINER PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2WP2162045 Whirlpool Refrigerator Defrost Timer
3WPW10225581 Whirlpool Refrigerator Defrost Thermostat
4HOUSING
5WP8533993 Whirlpool Refrigerator Screw
6WP941839 Whirlpool Refrigerator Button Plug
7W10412780 Whirlpool Wire Harness
8W10545295 Whirlpool Refrigerator Socket
9FRAME, FAN MOTOR
10SUPPORT, MOTOR
11WP2163777 Whirlpool Refrigerator Fan Blade
12WPW10489073 Whirlpool Control Box
13WPW10530058 Whirlpool Refrigerator Thermostat
14WP489442 Whirlpool Refrigerator Screw
15DAMPER
16W11170274 Whirlpool Refrigerator Evaporator Cover
17W11518235 Whirlpool LED Light
18WP487353 Whirlpool Refrigerator Screw
19W11384469 Whirlpool Door Switch
20W10854527 Whirlpool Refrigerator Cover
21W10492757 Whirlpool Refrigerator Wire Harness
22W10465179 Whirlpool Refrigerator Thermostat Knob
23W10489072 Whirlpool Refrigerator Evaporator Cover
24W10837663 Whirlpool Dishwasher Wire Harness
25W10225833 Whirlpool Grommet
26WP489478 Whirlpool Refrigerator Screw
27WPW10253821 Whirlpool Refrigerator Evaporator Motor
28W10465177 Whirlpool Refrigerator Thermostat Knob
29W10261263 Whirlpool Refrigerator Deflector
30W10356446 Whirlpool Refrigerator Light Lens
31W10260017 Whirlpool Washer
32W10837731 Whirlpool Screw Assembly
33W10260016 Whirlpool Refrigerator Cap Screw
34WP489174 Whirlpool Refrigerator Screw
