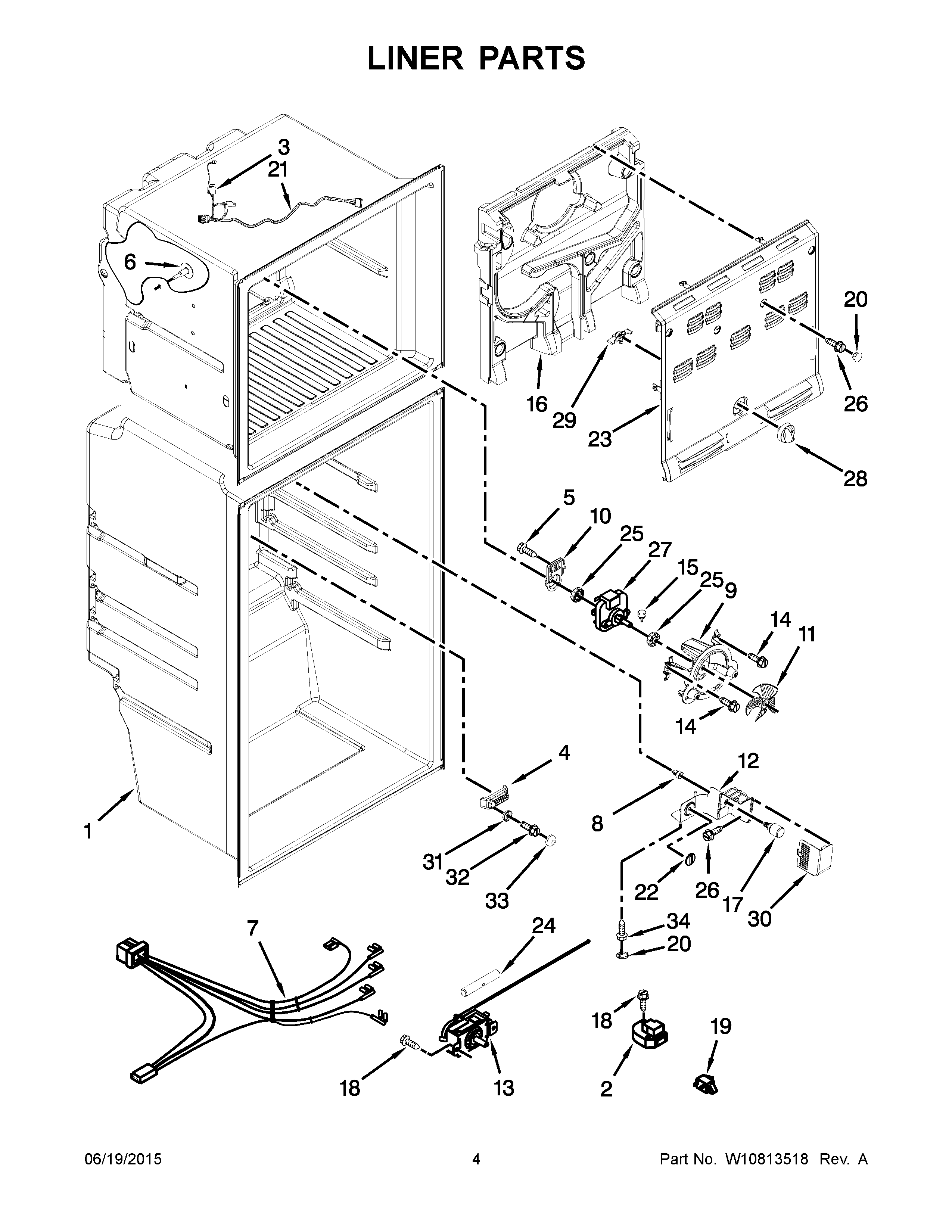

WRT111SFDB02 03 – LINER PARTS

Products

Position	Product
2	4388931 Whirlpool Defrost Timer
3	CABINET (NOT A SERVICEABLE PART)
4	HOUSING
5	WP8533993 Whirlpool Refrigerator Screw
6	WP941839 Whirlpool Refrigerator Button Plug
7	W10714891 Whirlpool Refrigerator Wire Harness
8	W10545295 Whirlpool Refrigerator Socket
9	FRAME, FAN MOTOR
10	SUPPORT, MOTOR
11	WP2163777 Whirlpool Refrigerator Fan Blade
12	W10716875 Whirlpool Refrigerator Control Box
13	WPW10530058 Whirlpool Refrigerator Thermostat
14	WP489442 Whirlpool Refrigerator Screw
15	DAMPER
16	W11170274 Whirlpool Refrigerator Evaporator Cover
17	W11518235 Whirlpool LED Light
18	WP487353 Whirlpool Refrigerator Screw
19	W11384469 Whirlpool Door Switch
20	W10854527 Whirlpool Refrigerator Cover
21	W11164040 Whirlpool Refrigerator Wire Harness
22	W10465179 Whirlpool Refrigerator Thermostat Knob
23	W10716874 Whirlpool Refrigerator Evaporator Cover
24	W10675407 Whirlpool Refrigerator Barrier
25	W10225833 Whirlpool Grommet
26	WP489478 Whirlpool Refrigerator Screw
27	WPW10253821 Whirlpool Refrigerator Evaporator Motor
28	W10465177 Whirlpool Refrigerator Thermostat Knob
29	W10261263 Whirlpool Refrigerator Deflector
30	W10734573 Whirlpool Refrigerator Light Lens
31	W10260017 Whirlpool Washer
32	W10837731 Whirlpool Screw Assembly
33	W10260016 Whirlpool Refrigerator Cap Screw
34	WP489174 Whirlpool Refrigerator Screw
