WRT111SFDB03 02 – CABINET PARTS

WRT111SFDB03 02 – CABINET PARTS

Written by

in

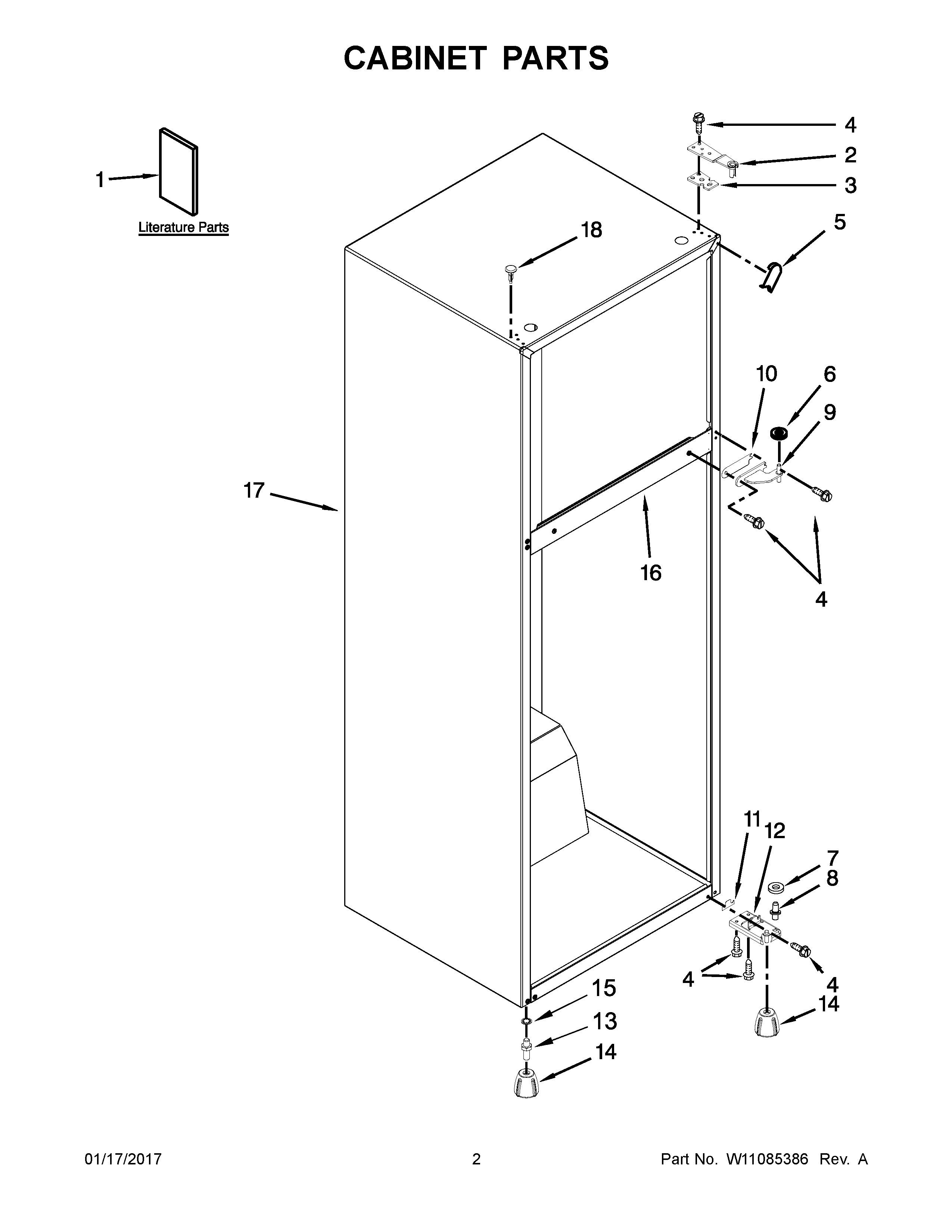

WRT111SFDB03 02 – CABINET PARTS

Products

PositionProduct
1BENERGY GUIDE
1AUSE AND CARE GUIDE
1SERVICE AND WIRING SHEET
2ASSEMBLY, TOP HINGE
3W10399311 Whirlpool Refrigerator Hinge Shim
4WP489497 Whirlpool Screw
5BW10439615 Whirlpool Refrigerator Filler
5AW10447119 Whirlpool Refrigerator Filler
5W10429302 Whirlpool Refrigerator Filler
6WP487576 Whirlpool Washer
7WP489467 Whirlpool Hinge Shim
8WP2325483 Whirlpool Hinge Pin
9W10492014 Whirlpool Refrigerator Door Hinge
10W11269182 Whirlpool Refrigerator Hinge Shim
11W10399313 Whirlpool Refrigerator Hinge Shim
12W10837711 Whirlpool Refrigerator Door Hinge
13SCREW, LEVELER
14WPW10340017 Whirlpool Refrigerator Leveler
15WASHER, METALLIC
17CABINET (NOT A SERVICEABLE PART)
18WPW10520304 Whirlpool Refrigerator Button Plug
18BWPW10520307 Whirlpool Refrigerator Replacement Plug Button
18AWPW10520305 Whirlpool Refrigerator Button Plug
