WRT111SFDB04 02 – CABINET PARTS
Written by
in

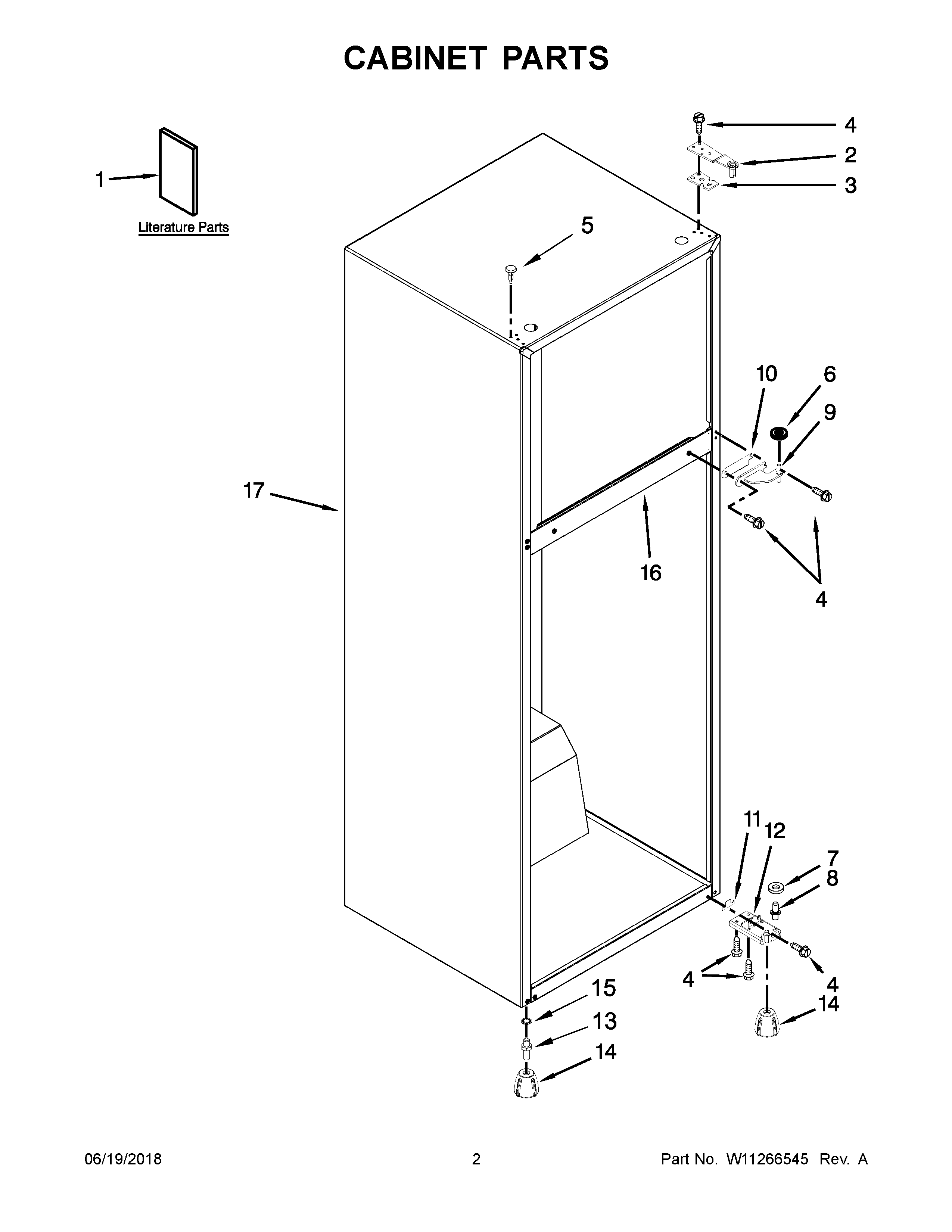

WRT111SFDB04 02 – CABINET PARTS
Products
Position
Product
1A
USE AND CARE GUIDE
1B
ENERGY GUIDE
1
SERVICE AND WIRING SHEET
2
ASSEMBLY, TOP HINGE
3
W10399311 Whirlpool Refrigerator Hinge Shim
4
WP489497 Whirlpool Screw
5A
WPW10520305 Whirlpool Refrigerator Button Plug
5
WPW10520304 Whirlpool Refrigerator Button Plug
5B
WPW10520307 Whirlpool Refrigerator Replacement Plug Button
6
WP487576 Whirlpool Washer
7
WP489467 Whirlpool Hinge Shim
8
W11026307 Whirlpool Refrigerator Hinge Pin
9
W10492014 Whirlpool Refrigerator Door Hinge
10
W11269182 Whirlpool Refrigerator Hinge Shim
11
W11269192 Whirlpool Refrigerator Hinge Shim
12
W10837711 Whirlpool Refrigerator Door Hinge
13
SCREW, LEVELER
14
WPW10340017 Whirlpool Refrigerator Leveler
15
WASHER, METALLIC
17
CABINET (NOT A SERVICEABLE PART)
←
